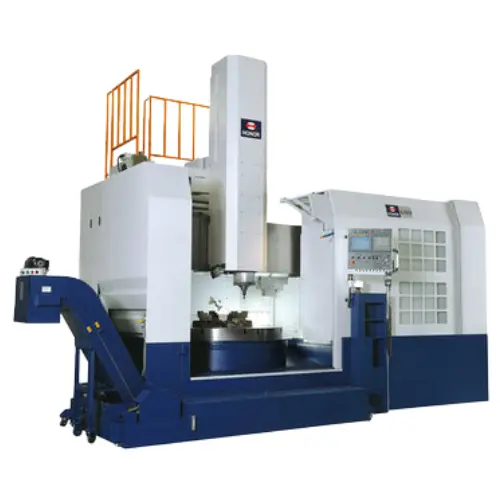

HONOR SEIKI VL-125CM VERTICAL TURNING CENTER
ConditionNouveau
Nouveau
The Honor Seiki VL-125CM is a heavy-duty CNC vertical turning center engineered for precision, stability, and versatility. With a table diameter of 1,250 mm and a maximum turning diameter of 1,600 mm, this machine is built to handle large, complex workpieces up to 5,000 kg. Its rigid construction, combined with advanced Fanuc 0i-TF Plus CNC control, delivers exceptional performance across demanding industries such as aerospace, energy, heavy machinery, and precision components manufacturing.
The VL-125CM is equipped with a variable-speed table (3–300 RPM) supported by a crossed roller bearing spindle for superior accuracy and durability. Its X/Z axis travels (L200 + R950 / 900 mm) provide flexibility for large parts, while the 16-position ATC magazine (6 turning, 9 drilling, 1 cover) ensures efficient tool management. A second spindle motor (11/15 kW, BT50, up to 2250 RPM) adds live tooling capability for complex machining, supported by high-pressure coolant through live tools (10 bar).
Designed with automation and ease of operation in mind, the machine comes standard with a chip conveyor, complete splash guard, automatic lubrication, and air-conditioned electrical cabinet. Optional upgrades, including a Solid Lock System, gearbox for live spindle, linear scales, and CE certification, make the VL-125CM a flexible solution tailored to customer needs.
Ø1250 TABLE WITH INDEPENDENT MANUAL 4-JAWS(C TYPE)
CHIP CONVEYOR
COMPLETE SPLASH GUARD(OPEN TOP)
COOLANT SYSTEM WITH COOLANT TANK
AUTO-LUBRICATION FOR ALL SLIDES AND BALL SCREWS
AUTO-LUBRICATION FOR THE REDUCER & BEARING
SECOND SPINDLE (LIVE TOOL) NOSE: BT50
AIR CONDITIONER FOR ELECTRICAL CABINET
HYDRAULIC UNIT ( AIR COOLING TYPE )
HIGH PRESSURE COOLANT THROUGH LIVE TOOLS, 10 BAR
WORK LIGHT
WARNING LIGHT (R/G/Y)
TOOL BOX & TOOL KITS
LEVEL BOLTS & PADS
BLOW HOLDER CLEARING
CNC COTROLLER: FANUC 0I-TF PLUS (15" LCD) WITH IHMI FUNCTION
USB & RJ45 INTERFACE
CD FOR FANUC MANUALS (ENGLISH)
OPERATION MANUAL (ENGLISH)
MANUAL OF ELECTRIC & HYDRAULIC CIRCUIT DIAGRAM (ENGLISH)
POWER SOURCE: 220 V, 3 PHASE, 50/60 HZ
OPTIONAL ACCESSORIES (1), (PER SET)
UPGRADED SOLID LOCK SYSTEM ON RAM
TOOL HOLDER BASE FOR SOLID LOCK SYSTEM
OD/FACING TOOL HOLDER, MODEL: IDF32-200-150
BORING TOOL HOLDER, MODEL: IFL32-120-300
DRILLING/BORING TOOL HOLDER, MODEL: BOS60-120-200
SOLID LOCK COVER FOR MILLING TOOLS
TRANSFORMER (380V→220V,3 PHASE, 50HZ )
PLEASE CONFIRM VOLTAGE AT CUSTOMER PLANT
OIL SKIMMER (DISK TYPE)
DUAL SPEED GEAR BOX FOR LIVE TOOL SPINDLE
UPGRADED LIVE TOOL SPINDLE MOTOR TO 15/18.5 KW
LINEAR SCALE OF X AXIS
UPGRADED SPACE FROM TABLE TO RAM END: +400
*DISTANCE FROM TABLE TO RAM END: 580-1780 (200*6 STEPS)
*MAX. TURNING HEIGHT: 1470
CE CERTIFICATE
FANUC 0I-TF OPTION FUNCTION: HELICAL INTERPOLATION
FANUC 0I-TF OPTION FUNCTION: RETRACTION FOR RIGID TAPPING
FANUC 0I-TF OPTION FUNCTION: C AXIS SMOOTH FUNCTION (SUITABLE FOR OVER 60% WORKPIECE LOAD AND CAM PROGRAM ON C-AXIS )
