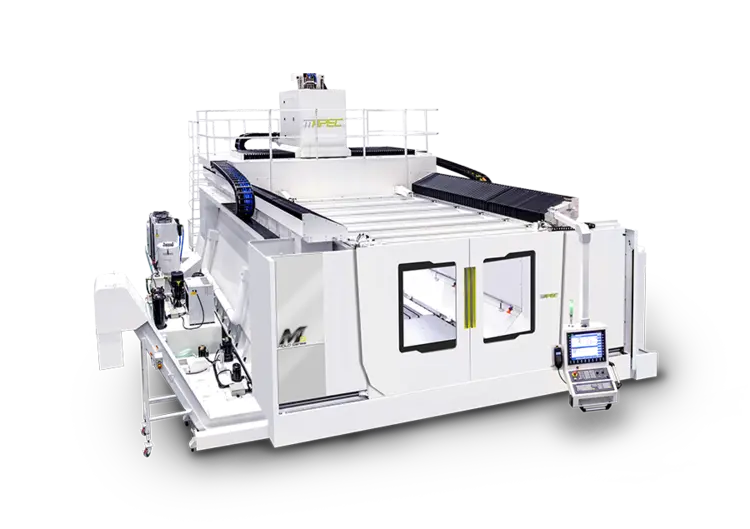

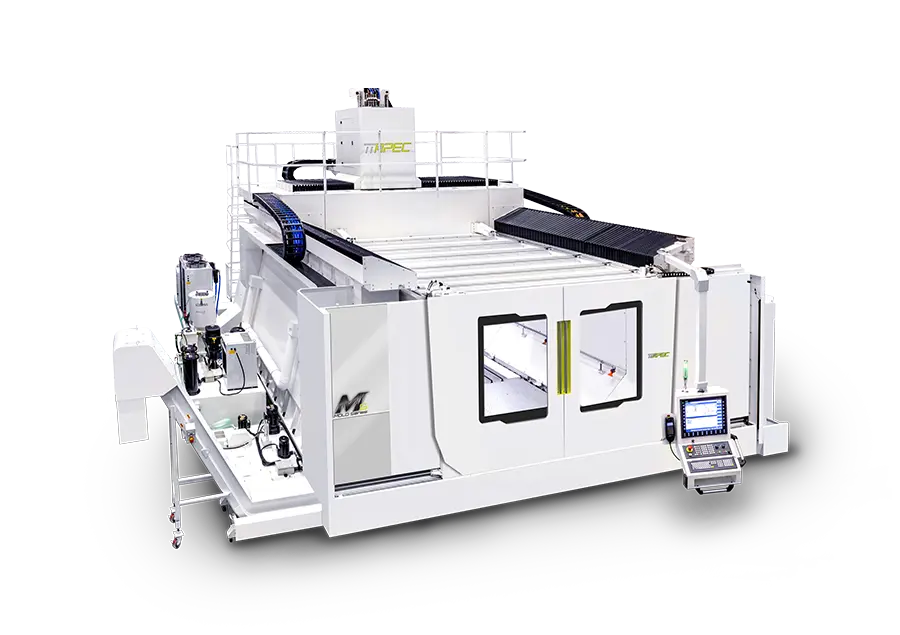

APEC GM4050 - 5-AXIS HIGH-SPEED GANTRY MACHINING CENTER

Description

Unmatched Precision and Performance for Aerospace, Automotive, and Mold Industries

The APEC GM4050 5-Axis High-Speed Gantry Machining Center is designed for manufacturers demanding exceptional precision, power, and efficiency. Built with a rigid gantry structure and patented box-in-box design, it delivers outstanding stability, thermal control, and high-speed performance. Ideal for machining complex, large components, the GM3250 ensures outstanding surface finishes and reliable long-term operation. This machine is engineered for aerospace machining, automotive structural components, mold and die manufacturing, aluminum alloy processing, and complex 5-axis contouring.

Key Features:

• Generous Travels: X-axis 5,000mm / Y-axis 4,000mm / Z-axis 1,000mm
• High-Speed Spindle: 15,000 RPM, HSK100A taper, 45/54 kW power, 119/143 Nm torque
• Precision 2-Axis Milling Head: ±115° (B-axis), ±360° (C-axis) swivel with 4,000 Nm clamping torque
• Linear Motor Drive: High-acceleration X/Y/Z axes with cooling system
• Automatic Tool Changer: 90/120 tools, 350mm max tool length, 16kg max tool weight
• Advanced Control: HEIDENHAIN TNC640 5-Axis CNC with HR520 MPG
• Thermal Stability: Spindle chiller, linear motor cooling, air-conditioned electrical cabinet
• High Accuracy: Optical linear and rotary scales, BLUM probing systems available
• Rigid Gantry Structure: FEM-optimized frame, heavy-duty cast ram in FCD600 material
• Superior Dynamic Performance: 60 m/min rapid feedrate, 0.7G acceleration
• Smart Safety and Maintenance: Oil-air spindle lubrication, waterproof work lamp, coolant management, integrated security interlocks
• Optional Enhancements: Coolant-through spindle, BLUM laser and touch probe systems, roof sliding cover, voltage stabilizer
