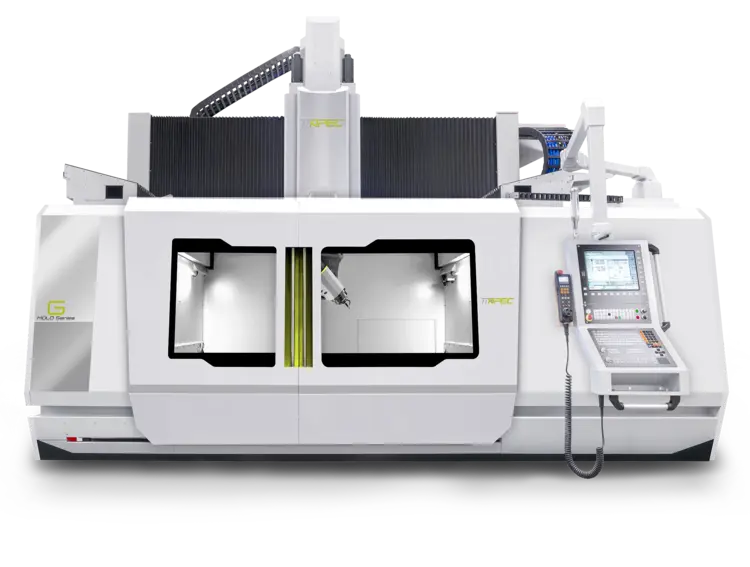

APEC G3020 5-AXIS GANTRY MACHINING CENTER

Description

Experience unmatched precision and efficiency with the APEC G3020 5-Axis Gantry Vertical Milling Center — a next-generation solution for complex and high-performance machining. Engineered for aerospace, automotive, and mold-making industries, the G3020 delivers superior accuracy, dynamic performance, and thermal stability, handling diverse materials and intricate geometries with ease.

Built on a rigid U-shaped structure, the APEC G3020 combines linear motor-driven X/Y axes and a hollow water-cooled Z-axis to ensure exceptional positioning accuracy and maximum stability even during heavy-duty cutting operations. Its compact two-axis milling head delivers high torque and smooth contouring, making it ideal for aerospace machining, automotive components, precision mold & die making and complex 5-axis parts.

Key Features:

• Large Travel Range: 3,000 mm (X) × 2,000 mm (Y) × 1,200 mm (Z) — ideal for machining large workpieces.
• Precision 2-Axis Milling Head: ±115° (B-axis) and ±360° (C-axis) swivel rotation, with 4,000 Nm clamping torque.
• Thermal Stability: Water-cooled Z-axis and cooler-equipped linear motors for consistent precision machining.
• Accuracy: Positioning precision of up to ±0.010 mm and repeatability of ±0.008 mm per VDI/ DGQ 3441 standard.
• Integrated workpiece touch probe and tool measurement system for automatic calibration.
• Efficient Chip Management: Standard chip conveyor and water tank for cleaner operation.
• Enhanced Reliability: Germany braking system for linear motors, counterbalance system, and air-conditioning for electrical cabinet.

Why Choose the APEC G Series?
Combining high-speed cutting, robust construction, and intelligent thermal management, the APEC G3020 helps you elevate your 5-axis CNC machining capabilities. Whether it's aluminum aerospace structures, complex automotive parts, or heavy-duty molds, this machine guarantees precision, versatility, and productivity.
