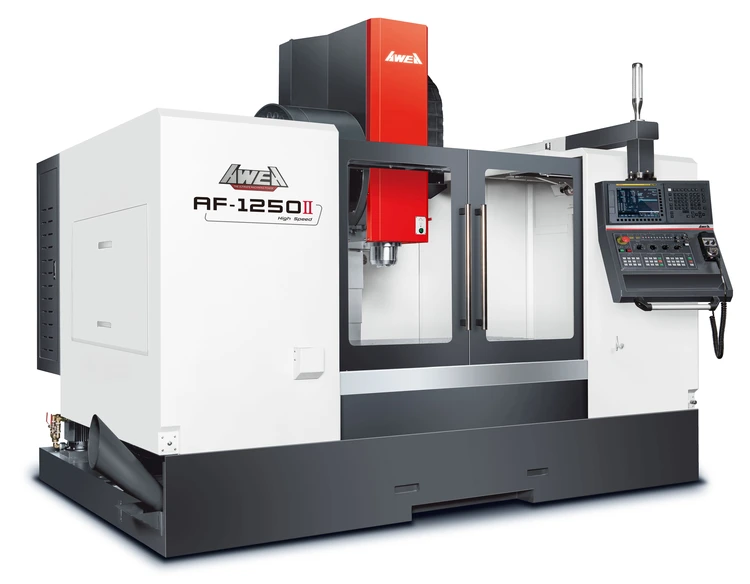

AWEA AF-1250II - CNC VERTICAL MACHINING CENTER
ConditionNouveau
1 disponible
Nouveau
Introducing the AWEA AF-II series, engineered with mature manufacturing abilities and advanced technology skills for exceptional machining performance.
Key Features:
• High rigidity structure and three axes high precision linear guide way design
• Fast arm type ATC and chip conveying system for efficient operation
• Broadly used in high precision machine parts manufacturing, meeting current and future demands
• Specialized for high precision parts and mold machining industry, offering high precision and efficiency at a reasonable cost
• Three axes equipped with high precision linear guide way design for optimal control and efficient movement, with options for roller or ball type guide way
• Rotary operation panel and large width protection door for convenient operation and spacious loading/unloading
• Independent coolant tank system for easy maintenance, with a high-pressure coolant pump for efficient cooling capabilities.
MITSUBISHI M80 W/ 15" LCD DISPLAY
LINEAR GUIDES ON ALL AXIS
15,000 RPM DIRECT DRIVE SPINDLE CAT40 BIG PLUS
MITSUBISHI SPINDLE MOTOR 11/15 KW (15/20 HP)
36 TOOLS ATC MAGAZINE (ARM TYPE)
36 PULL STUDS
ULTRA FAST ATC
CHAIN-TYPE CHIP CONVEYOR
DUAL COIL TYPE AUGERS
CHIP WASH DOWN COOLANT
COOLANT THROUGH SPINDLE 300 PSI (WITHOUT CTS TANK)
AIR THROUGH SPINDLE
3 LIGHT MACHINE STATUS INDICATOR
OIL SKIMMER
HEAT EXCHANGER ELECTRICAL CABINET
36 PULL STUDS (CTS TYPE)
FULLY SPLASH GUARD
INTERLOCKED DOOR
CENTRALIZED AUTOMATING LUBRICATION
AUTOMATIC POWER OFF SYSTEM
FOUNDATIONS BOLTS KIT
AIR AND COOLANT GUNS
EXTRA LED LIGHT INSIDE THE MACHINE
AIR TANK FOR TOOL MAGAZINE
GLASS PROTECTED FRONT WINDOW
SPINDLE AIR CURTAIN
CENTRALIZED AUTOMATIC LUBRICATION SYSTEM
AUTOMATIC POWER OFF SYSTEM
SPINDLE COOLING SYSTEM
TOOLBOX
OPERATION AND MAINTENANCE MANUAL
