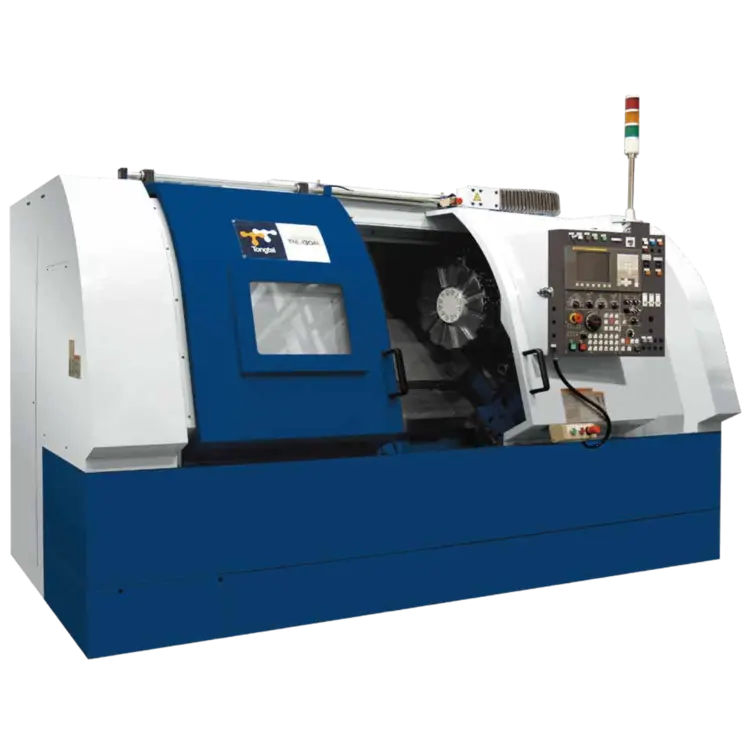

TONGTAI TNL-130AL - CNC Lathe
ConditionNouveau
Nouveau
Excellent machine structure design with high-grade casted machine bed and fine ground box ways, provides stability and high dynamic rigidity. It’s the basic and most crucial feature of high machine performance.
High horsepower servo motor is driven directly through coupling for avoiding transmission deviation. Moreover, the rapid traverse in X and Z axis achieve 20m/min to enhance the machining efficiency.
Powerful spindle is available for gear deceleration. The maximum torque reaches 705N.m(for 130AL series)and 991N.m(for 160A series). The maximum machining diameter is 410mm. The TNL-130AL/160A series provides outstanding precision performance for worldwide customers.
The standard hydraulic turret’s positioning is activated by a gear clutch with 210mm
diameter for ensuring rigidity during heavy duty machining.
FANUC 0i-TF PLUS CONTROL w/ 10.4" LCD MONITOR
MANUAL GUIDE I FUNCTION
X/Z-AXIS STROKE 285/1000 MM (BOXWAY TYPE)
X/Z-AXIS RAPID TRAVERSE 20/24 M/MIN
SPINDLE MOTOR 22/18.5/15 kW
HYD. HOLLOW CHUCK 10" X 3 JAWS
HYD. UNIT FOR CHUCK WITH AIR COOLER
HYD. TURRET SYSTEM 12 STATIONS
PROGRAMMABLE TAILSTOCK STROKE 1000 MM + QUILL STROKE 100 MM
FACING TOOL HOLDER ( 25 X 25 ) × 2 PCS
O.D. TOOL GASKET X 6 PCS
I.D. TOOL HOLDER X 4 PCS ( DIA 40 )
BORING SLEEVE X 6 PCS (DIA. 10, 12, 16, 20, 25, 32 MM)
DRILLING SLEEVE X 3 PCS (MT#1, 2, 3)
SOFT JAWS X 1 SET
ROTATING CENTER * 1 PCS ( MT# 5 )
ELECTRICAL CABINET WITH HEAT EXCHANGER
STANDARD SPLASH GUARD
COOLANT UNIT
TRANSFORMER (POWER SOURCE 380V)
CHIP CONVEYOR H=1100 MM WITHOUT CHIP TROLLEY (CHAIN TYPE)
MACHINE COLOR TONGTAI GREY/BLUE
THREE COLOR WARNING LAMP
CE MARK
TOOL PRESETTOR (BY MANUAL)
OIL SKIMMER (DISC TYPE)
