Nouveau VICTOR 1440GLV | Manual Lathes
ConditionNouveau
Nouveau

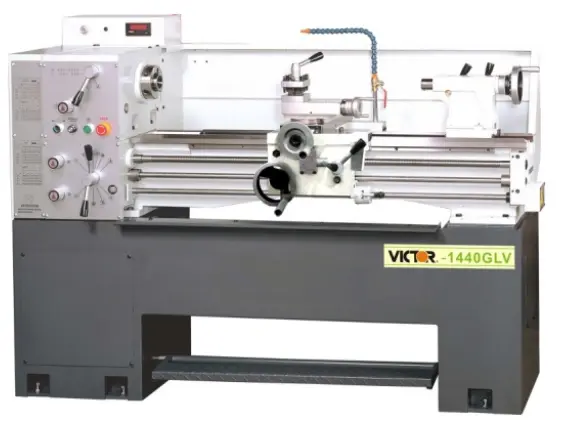

VICTOR 1440GLV Manual Lathe. Specifications include a 360 mm swing over bed, 225 mm swing over cross slide, and 1,000 mm distance between centers. Spindle speeds range from 36 to 2,200 rpm. Equipped with 6" 3-jaw chuck, halogen work light, splash guard, and more.
HEADSTOCK:
Spindle bore: Ø1-9/16" (Ø40 mm)
Spindle Nose: D 1-4 Camlock
Spindle bore Taper: MT # 5
Taper of center in sleeve: MT # 3
Range of Spindle speeds: Low gear: 36 ~ 300 rpm | High gear: 300 ~ 2,200 rpm
TAIL STOCK:
Tailstock spindle: MT#3 / 4" (100 mm)/ Ø1-9/16" (Ø40 mm)
THREADS & FEEDS:
Metric pitch threads: 0.4 ~ 7 mm x 32 kinds
Threads per inch: 4 ~ 56 TPI x 32 kinds
Longitudinal feed: 0.0026" ~ 0.0368"/rev.
Cross feed: 0.0009" ~ 0.0123"/rev.
MOTOR:
Main Spindle motor: 5HP / 3 phases
Coolant pump motor: 1/8 HP
Machine weight: 1,600 lbs.
Machine Dimensions: 76" x 32" x 63"
STANDARD ACCESSORIES:
Dead center M.T. #3
Reducing sleeve
Thread dial indicator
Toolbox with kits
Instruction manual and parts list
Gap bed
Coolant system
Leveling screw & pads
SPECIAL PACKAGE INCLUDES:
6” 3-jaw Chuck
Steady Rest w/Brass Tips
Follow rest
4-Way Tool Post
Full Length Splash Guard
Halogen Work Light
Chock Cover w/ limit switch
Transformer 220v 3 phase.
