EASYBOX T30-64

1.888.565.8807
sales@megatelcnc.com
ConditionNouveau

Aperçu

Taper:
Automated Flexible Manufacturing Systems
Fabricant:
ENGINEERING DATA
Modèle:
EASYBOX T30-64
Condition:
Build To Order
Statut:
À vendre

Description

Better use of the space in your workshop (high storage)

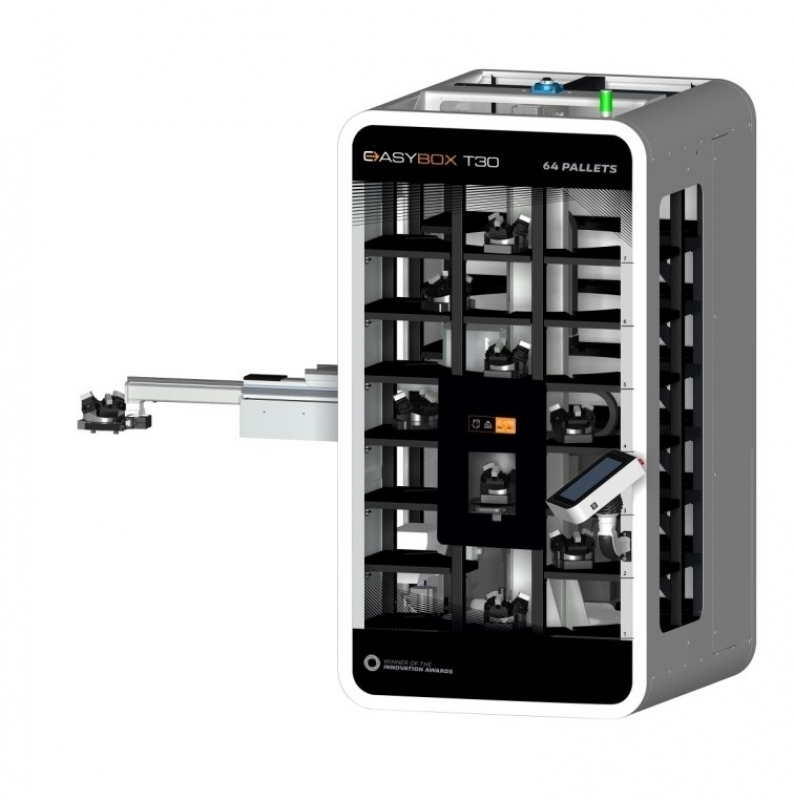

Saving up the floor space in your workshop and using height space, this robot has been developed for machining workpieces of 200 x 200 x 180 mm with a storage capacity of 64 pallets of 30 kg (including workpiece/fixture/pallet).

Key Highlights:

Interface easy to operate, quick start.
Loading station integrated to the storage magazine
The robot can handle ENGINEERING DATA pallets or KRAFTEK pallet-vices.
Pallet handling with our EASYLOCK zero-point systems.

Arm type3-axis3-axis
Max Pallet Gross Weight30 kg66.1 lb
Workpiece Dimension200x200x180 mm200x200x180 mm
Number of Pallets6464
MovementPivotPivot
Max Number of CNC Machines Connected22
