HHI Series

1.888.565.8807
sales@megatelcnc.com
ConditionNouveau

Document (1)

TJR HHI Series Brochure.pdf

Aperçu

Taper:
Rotary Table
Fabricant:
TJR
Modèle:
HHI Series
Condition:
Build To Order
Statut:
À vendre

Description

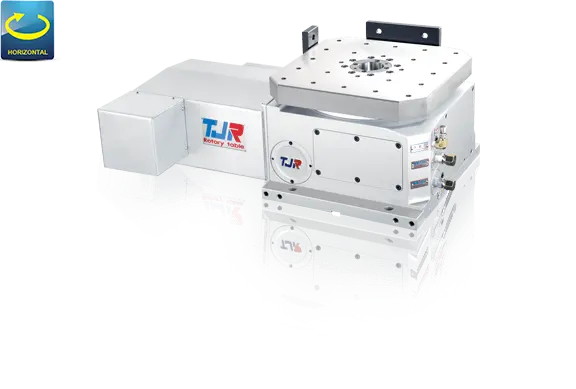

Discover the new TJR HHI Series Rotary Table with Hirth coupling hydraulic brake – a reliable, precision-crafted addition to your equipment lineup.

Hirth coupling CNC indexing table is capable of being used as the 4th axis rotary table for use in the horizontal machining center or horizontal drilling & tapping center. It is also ideal for deep cutting of highly rigid material. TJR CNC Hirth coupling index table uses a built-in three-piece clutch plate. The indexing precision can be ±5 seconds without an additional angle encoder. It can rotate without lifting off the table to prevent the table from water and particle damage.

Table Diameter1,000 mm39.37"
Max Rotation Speed25 RPM25 RPM
Max Workpiece Weight (Vertical)9,000 kg19,841.6 lb
Workpiece PositioningHorizontalHorizontal
Brake SystemHydraulicHydraulic
