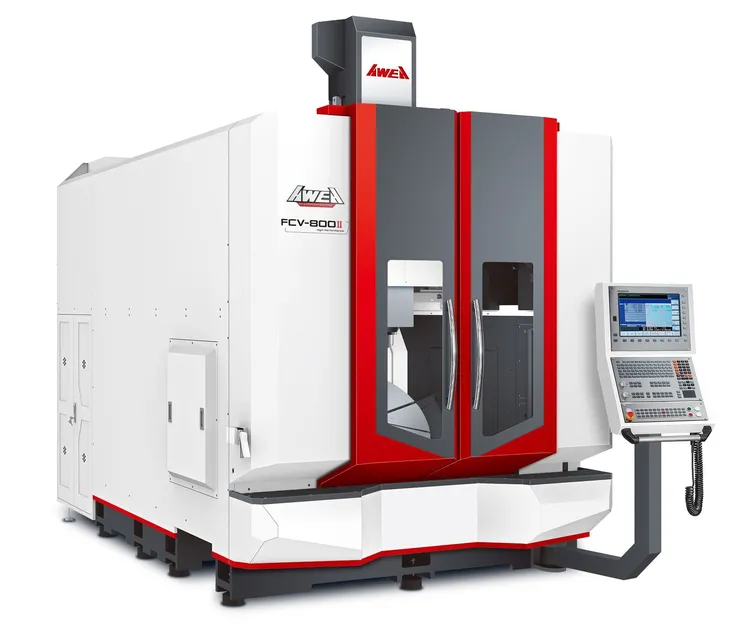

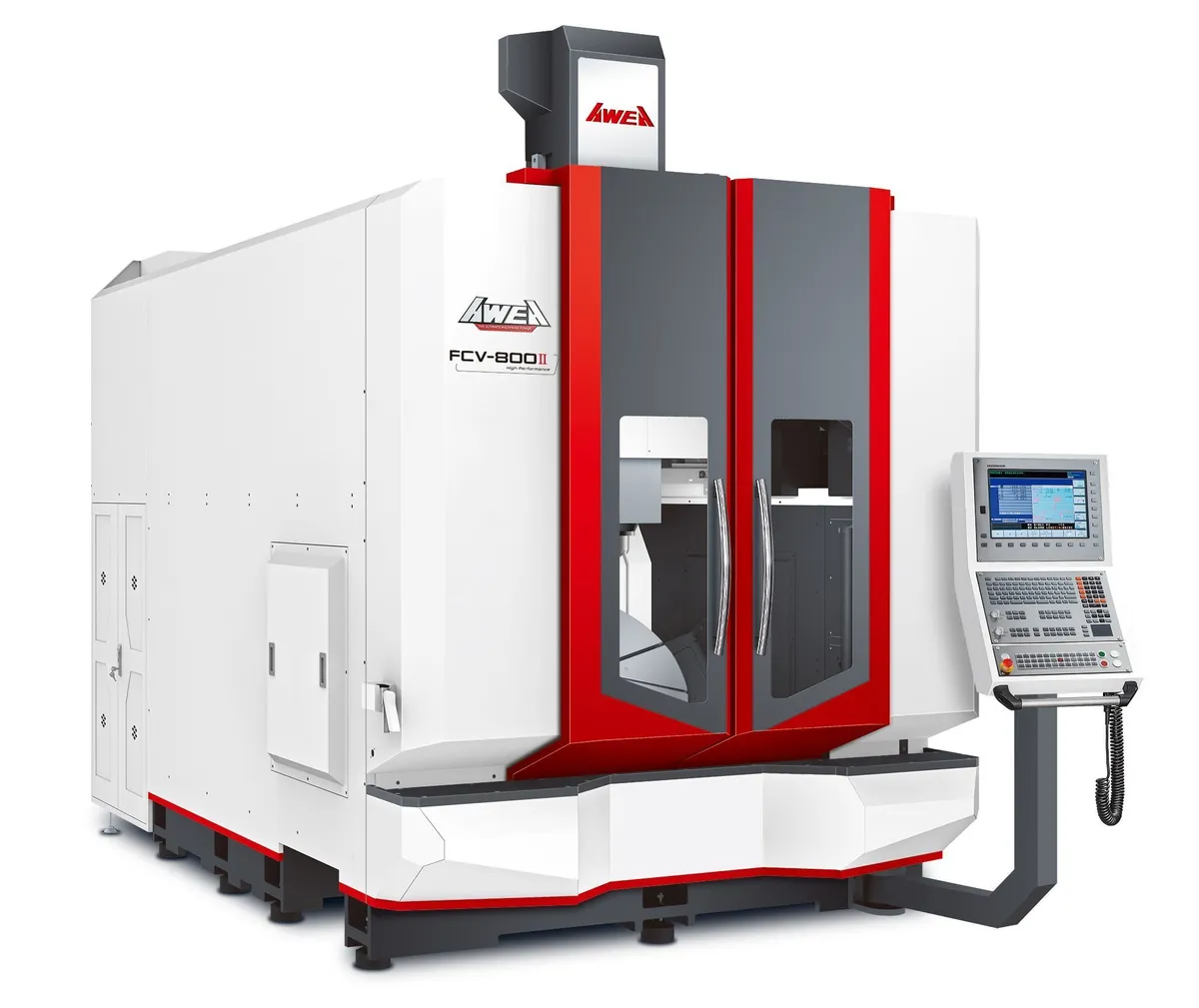

AWEA FCV-800 5-AXIS GANTRY TYPE MACHINING CENTER

Name: Megatel CNC Solutions Inc.
Address: Head Office, 7100 Edwards Blvd, Mississauga, ON, L5S 1Z1, CA

1.888.565.8807

sales@megatelcnc.com

ConditionNouveau

Quantité

AWEA FCV-800 Gantry Vertical Milling Center | Megatel CNC Solutions Inc. (1)

AWEA FCV-800 Gantry Vertical Milling Center | Megatel CNC Solutions Inc.

Nouveau

Aperçu

Taper:

Gantry Vertical Milling Center

Fabricant:

AWEA

Modèle:

FCV-800

Condition:

Build To Order

Statut:

À vendre

Description

Discover precision with AWEA's FCV-800 Gantry Vertical Milling Center. Brand-new model designed for high-performance machining. Advanced technology for your complex projects.

ImpérialMétrique

X-Axis Travel	800 mm	31.496"
Y-Axis Travel	900 mm	35.433"
Z-Axis Travel	660 mm	25.984"
Table Size-X	680 mm	26.772"
Table Size-Y	680 mm	26.772"
Table Load Capacity	1,000 kg	2,204.6 lb
Dist. Spindle Nose to Table	750 mm	29.528"
Spindle Speed	16,000 RPM	16,000 RPM
Spindle Taper	CAT40	CAT40
A-axis Swivel	120°	120°
C-axis Rotation	360°	360°
ATC	40	40
Milling Head Type	Trunnion Style	Trunnion Style
Optional ATC	60 \| 80	60 \| 80
CN Control	Fanuc \| Heidenhain	Fanuc \| Heidenhain
