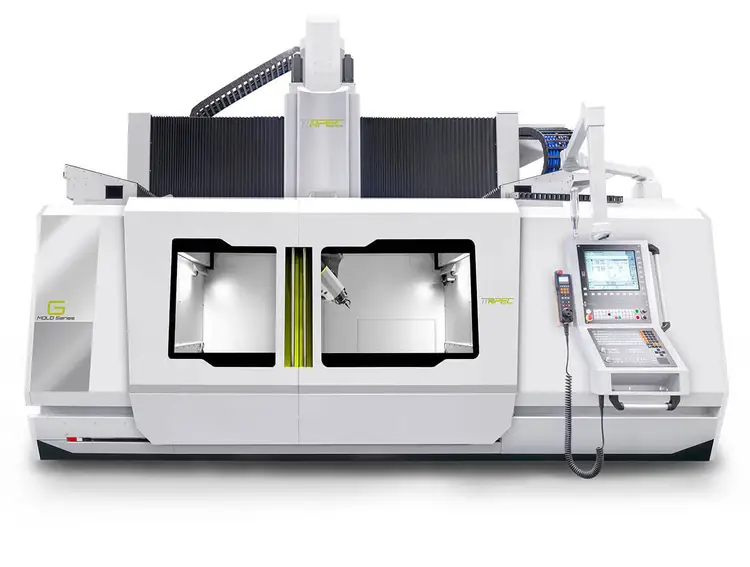

Nouveau APEC GM3240 | Gantry Vertical Milling Center

1.888.565.8807
sales@megatelcnc.com
ConditionNouveau

Aperçu

Taper:
Gantry Vertical Milling Center
Fabricant:
APEC
Modèle:
GM3240
Condition:
Build To Order
Statut:
À vendre

Description

Explore precision with the new APEC GM3240, a 5-axis vertical gantry milling center. Engineered for accuracy and performance in complex machining.

X-Axis Travel4,000 mm157.48"
Optional X-Axis Travel5,000 | 6,000 | 8,000 mm5,000 | 6,000 | 8,000 mm
Y-Axis Travel3,200 mm125.98"
Z-Axis Travel1,200 mm47.244"
Optional Z-Axis Travel1,500 | 2,000 mm1,500 | 2,000 mm
Table Size-X4,000 mm157.48"
Optional Table Size-X5,000 | 6,000 | 8,000 mm5,000 | 6,000 | 8,000 mm
Table Size-Y3,200 mm125.98"
Dist. Spindle Nose to Table1,500 mm59.055"
Table Load Capacity per sqm8 T7,257.5 kg
Spindle Speed24,000 RPM24,000 RPM
Spindle TaperHSK A63 or HSK A100HSK A63 or HSK A100
A-axis Swivel120°120°
C-axis Rotation360°360°
ATC3030
Milling Head TypeMono Head (Fork Head or Universal Head)Mono Head (Fork Head or Universal Head)
Optional ATC40 | 6040 | 60
CN ControlHeidenhain TNC640Heidenhain TNC640
