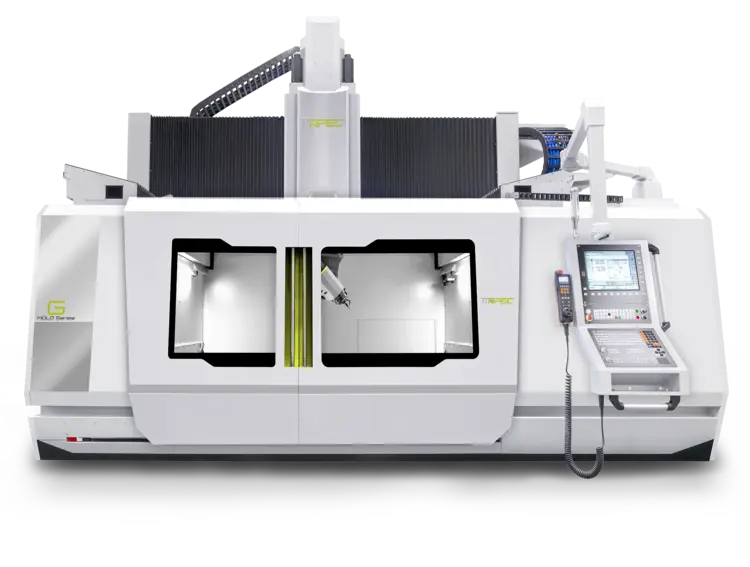

Nouveau APEC G3040 | Gantry Vertical Milling Center

1.888.565.8807
sales@megatelcnc.com
ConditionNouveau

Aperçu

Taper:
Gantry Vertical Milling Center
Fabricant:
APEC
Modèle:
G3040
Condition:
Build To Order
Statut:
À vendre

Description

Discover the APEC G3040: New 5-axis high-speed gantry vertical milling center with up to 8T table load, 24,000 RPM spindle, Heidenhain control, and customizable travels.

X-Axis Travel4,000 mm157.48"
Optional X-Axis Travel2,000 | 4,000 | 6,000 | 8,000 mm2,000 | 4,000 | 6,000 | 8,000 mm
Y-Axis Travel3,000 mm118.11"
Z-Axis Travel1,000 mm39.37"
Optional Z-Axis Travel1,200 mm1,200 mm
Table Size-X4,000 mm157.48"
Optional Table Size-X2,000 | 4,000 | 6,000 | 8,000 mm2,000 | 4,000 | 6,000 | 8,000 mm
Table Size-Y3,000 mm118.11"
Dist. Spindle Nose to Table1,370 mm53.937"
Table Load Capacity per sqm8 T7,257.5 kg
Spindle Speed24,000 RPM24,000 RPM
Spindle TaperHSK A63 or HSK A100HSK A63 or HSK A100
A-axis Swivel125°125°
C-axis Rotation360°360°
ATC3030
Milling Head TypeMono Head (Fork Head or Universal Head)Mono Head (Fork Head or Universal Head)
Optional ATC40 | 6040 | 60
CN ControlHeidenhain TNC640Heidenhain TNC640
