GOODWAY GV-1200 VERTICAL TURNING CENTER
ConditionNouveau
Nouveau

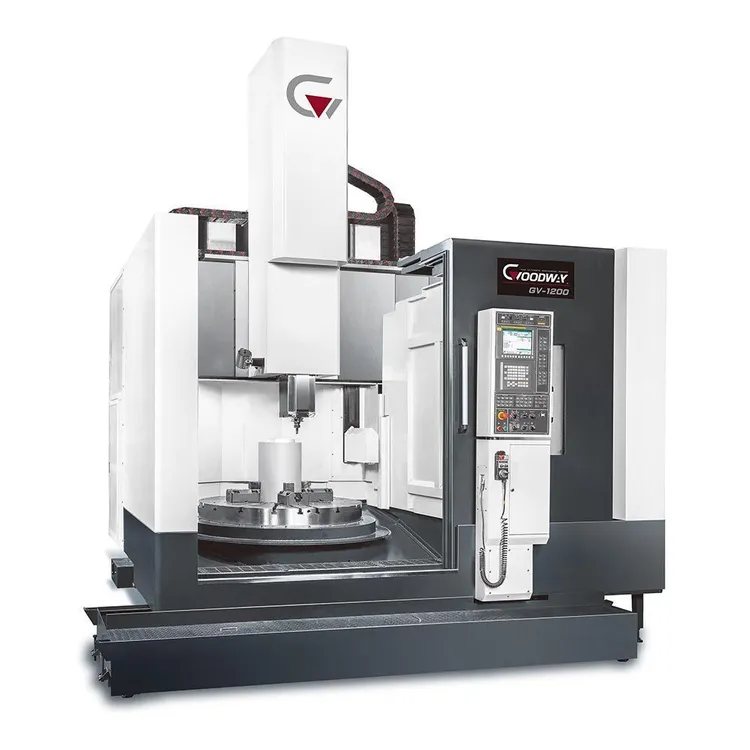

Goodway GV-1200 Vertical Turning Center – Precision, Power & Versatility
The Goodway GV-1200 Vertical Turning Center is a cutting-edge CNC lathe built for heavy-duty machining, high precision, and superior rigidity. Designed to handle large and asymmetric workpieces, this machine ensures long-term accuracy with its high-rigidity Meehanite casting structure and C3-class ball screws with pre-tensioning. Its 2-step gear-driven spindle, 37/45kW motor with chiller, and advanced chip removal system maximize performance and efficiency in demanding industrial applications.
With a maximum swing diameter of Ø1600 mm, turning diameter of Ø1350 mm, and turning height of 1300 mm, the GV-1200 provides unmatched versatility for industries requiring high-precision vertical turning, milling, drilling, grinding, and tapping. Equipped with an umbrella-type 16-tool automatic tool changer, CF-axis with disk brake, and optional BT-50 tool spindle, it streamlines complex machining tasks while boosting productivity and reducing setup times.
Engineered for businesses in Ontario, Windsor, the GTA, Montreal, and Quebec, the GV-1200 is the perfect solution for manufacturers looking to optimize production with a powerful, reliable, and future-proof CNC vertical lathe.
Key Features:
• Large Machining Capacity – Max swing Ø1600 mm, turning Ø1350 mm, height 1300 mm
• High-Power Spindle – 37/45kW motor with 2-step gearbox for heavy-duty cutting
• Rigid & Stable Structure – Meehanite casting, high-low guideways, and box ways on all axes
• Multi-Tasking Capability – Live tooling, CF-axis with disk brake, and optional tool spindle
• Precision Engineering – C3-class ball screws with pre-tensioning for superior accuracy
• Enhanced Chip & Coolant Management – Chip conveyor, auto timer, and Grundfos coolant system
🔎 Looking for a high-performance CNC vertical lathe in Ontario, Windsor, GTA, Montreal, or Quebec? The Goodway GV-1200 delivers power, precision, and efficiency to keep your operations ahead.
📞 Contact us today for availability and pricing!
WITH FANUC 0i-TF PLUS CONTROL WITH 10.4" LCD SCREEN
MANUAL GUIDE-I FOR FANUC 0i-TF PLUS
16 TOOLS UMBRELLA TYPE AUTO TOOL CHANGER
UPGRADED TO 50" 3 JAWS CHUCK
MAIN SPINDLE MOTOR OUTPUT 37/45KW WITH SPINDLE CHILLER (1.5 TON, 4500 kcal/hr)
2-STEP GEAR BOX
TOOL HOLDER PACKAGE
CF-AXIS WITH DISK BRAKE ON MAIN SPINDLE (GREASE TYPE)
CF-AXIS DRIVE MOTOR Alpha 12/3000i, MAX. SPEED: 9 RPM, MAX. TORQUE: 2280NM
TOOL SPINDLE (SPINDLE MOTOR 7.5/11KW, 2 SPEED GEAR BOX)
BT-50 TOOL SPINDLE WITH TOOL HOLDER PACKAGE PART NO. VK-OBBC
- 2 PCS x OD TOOL HOLDER (SHANK 32 MM) (VK-TBBB)
- 2 PCS x BORING TOOL HOLDER (SHANK 25MM) (VK-TBBC)
- 2 PCS x BORING TOOL HOLDER (SHANK 25MM) (VK-TBBE)
HIGH-LOW GUIDE WAY STRUCTURE WITH BOX WAYS ON ALL AXES
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
ELECTRICAL CABINET HEAT EXCHANGER
OIL SKIMMER
3 SETS x 90° HEAD
GOODWAY AUTO TOOL SETTER (RENISHAW RP3 PROBE)
MIST COLLECTOR (DUE TO THE COVER IS SEMI-ENCLOSED, THE OIL MIST IS NOT ABLE TO COLLECT COMPLETELY BY THE OIL MIST COLLECTOR)
COOLANT PISTOL WITH PIPE CONTROL BY OPERATION PANEL BUTTON
AIR PISTOL WITH PIPE CONTROL BY OPERATION PANEL BUTTON
70 BAR COOLANT THROUGH SPINDLE SYSTEM
