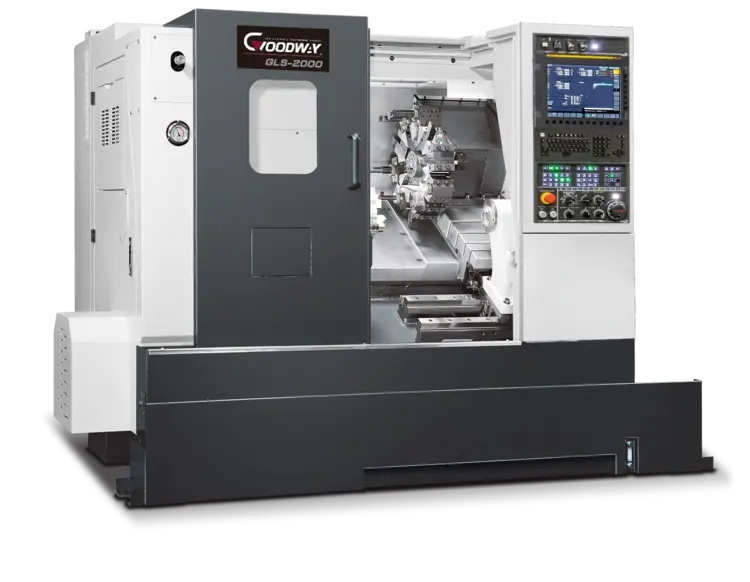

GOODWAY GLS-2000 HIGH SPEED CNC TURNING CENTERS
ConditionNouveau
Nouveau
With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GLS-1500 series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
✔ 30˚ slant-bed design provides smooth chip disposal and easier operator access.
✔ Steel way covers and special steel wipers molded with industrial-strength rubber are used for durability.
✔ Fully enclosed splash guards keep chips and coolant contained for a safe clean working environment.
The auto lubrication system delivers metered amounts of lubrication to the slideways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.
FAGOR 8065 CN CONTROL
TAIWAN MADE 8" HYDRAULIC CYLINDER
GANG TOOL
12 STATION STANDARD TURRET WITH TOOL HOLDER PACKAGE OD SHANK 25MM/ID 40MM
UPGRADED 10 BAR COOLANT PUMP
PART CATCHER
AUTO RENISHAW TOOL SETTER (FOR BOTH MAIN SPINDLE & SUB-SPINDLE) HPMA
RIGID TAPPING
SPINDLE ORIENTATION
TAIWAN MADE LINEAR GUIDWAYS ON ALL AXES
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
COOLANT SYSTEM WITH GRUNDFOS 3/4 HP COOLANT PUMP
HYDRAULIC SYSTEM
FULLY ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM
TRI-COLOR SIGNAL TOWER(YELLOW/RED/GREEN)
HIGH INTESITY WORK LIGHT
M CODE AUTOMATIC POWER OFF
FOOT SWITCH FOR CHUCK
RS-232 INTERFACE
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
OPERTION & MAINTENANCE MANUALS
