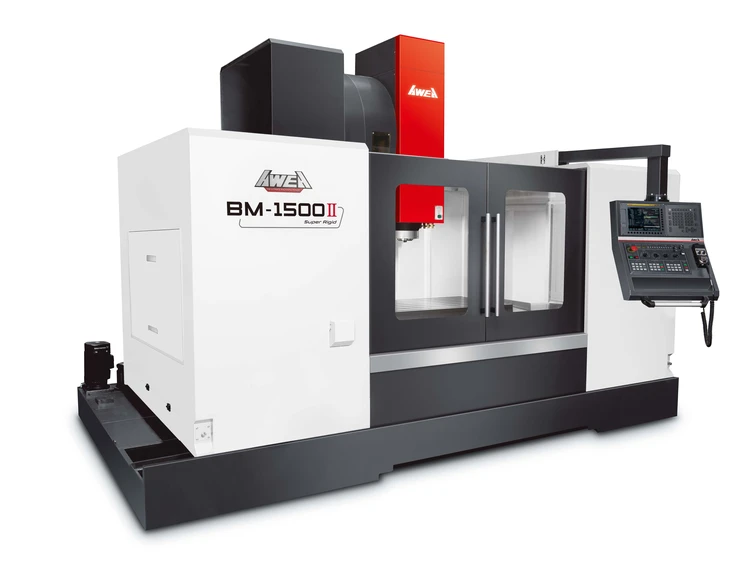

AWEA BM-1500II VERTICAL MACHINING CENTER - BOX WAY GUIDE
ConditionNouveau
1 disponible
Nouveau
Experience unparalleled performance with the AWEA BM-1500II, a vertical machining center designed for heavy cutting and high-precision applications. Built with advanced R&D technology and rigorous quality control, this machine delivers exceptional stability and rigidity, making it the perfect solution for a wide range of machining needs.
Key Features:
• Customizable Spindles: Modular spindle options to optimize cutting for diverse machining needs.
• Heavy-Duty Box Ways: Heat-treated 3-axis box ways provide exceptional support for heavy cutting.
• FEM-Optimized Structure: Lightweight yet rigid design ensures durability and precision.
• Stable Wide-Span Column: Enhanced cutting stability with a steady headstock, even at high speeds.
• Reinforced Table Design: Double-ribbed table resists deformation under prolonged heavy loads.
• Precision Hand-Scraping: Hand-scraped components guarantee accuracy and load balance.
• High-Efficiency Chip Removal: Screw-type chip augers deliver superior chip clearance.
FANUC 0I-MF PLUS WITH 10.4” COLOR LCD SCREEN
FANUC “MANUAL GUIDE-I” CONVERSATIONAL PROGRAMMING
AWEA “I-CONSOLE” INTELLIGENT SOFTWARE
PARTS PROGRAM STORAGE SIZE UPGRADE TO 2MB
MAX NUMBER OF REGISTERABLE PROGRAMS UPGRADE 1000
FANUC AICCII (200 BLOCK LOOK-AHEAD)
DYNAMIC GRAPHIC DISPLAY
JERK CONTROL
SMOOTH TOLERANCE CONTROL
MANUAL HANDLE RETRACE
ONE TOUCH MACRO CALL
RIGID TAPPING
ETHERNET/LAN/RS232/USB/MEMORY CARD
FANUC ALPHA 15i SPINDLE MOTOR, 20/25/40 HP (Cont./30min/Peak)
6,000 RPM GEAR DRIVEN SPINDLE, CAT50 BIG PLUS
30 TOOLS ATC MAGAZINE SIDE MOUNT ARM TYPE
MACHINE PERFORMANCE PACKAGE:
UPGRADE Z AXIS MOTOR DRIVE THE WHOLE WEIGHT OF THE SPINDLE HEAD
SPINDLE OIL CHILLER
COOLANT THRU SPINDLE 1000 PSI PREP (W/ UNION)
300 PSI HIGH PRESSURE COOLANT SYSTEM
CATERPILLAR TYPE CHIP CONVEYOR
RENISHAW PROBE INTERFACE (OMI-2T RECEIVER + GRAPHIC INTERFACE LICENSED)
4TH AXIS INTERFACE (MACHINE PRE-WIRE)
3-COLOR TOWER LIGHT
COOLANT AND AIR GUN
AIR BUFFER TANK FOR ATC TOOL CHANGE
ADDITIONAL HIGH-INTENSITY LIGHTING INTERNALLY MOUNTED LED LIGHTS
AIR CURTAIN AROUND SPINDLE
COOLANT NOZZLE AROUND SPINDLE
HARDENED AND GROUND BOX WAYS
HARDENED C3 CLASS BALL SCREWS
HIGH INTENSITY WORK LIGHT
M CODE CONTROLLED AIR BLOW
M CODE AUTOMATIC POWER OFF
COOLANT WASH DOWN
COOLANT SYSTEM WITH GRUNDFOS 3/4HP COOLANT PUMP
ENLARGED 500 LITER (131 GALLON) COOLANT TANK
FULL ENCLOSED SPLASH GUARD
DOOR INTERLOCK, SAFETY SWITCH, PROGRAM PROTECT
DUAL INTERNAL CHIP AUGER
ADVANCE AUTO LUBRICATION SYSTEM W/ COPPER PIPING
WAY LUBRICATION OIL RECYCLING SYSTEM
REMOTE MPG HANDWHEEL
ELECTRICAL CABINET HEAT EXCHANGER
LEVELING KIT
