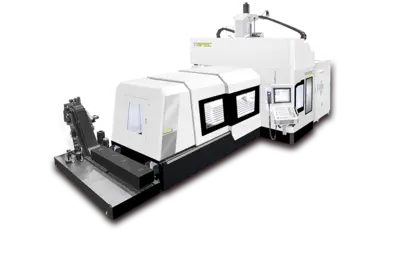

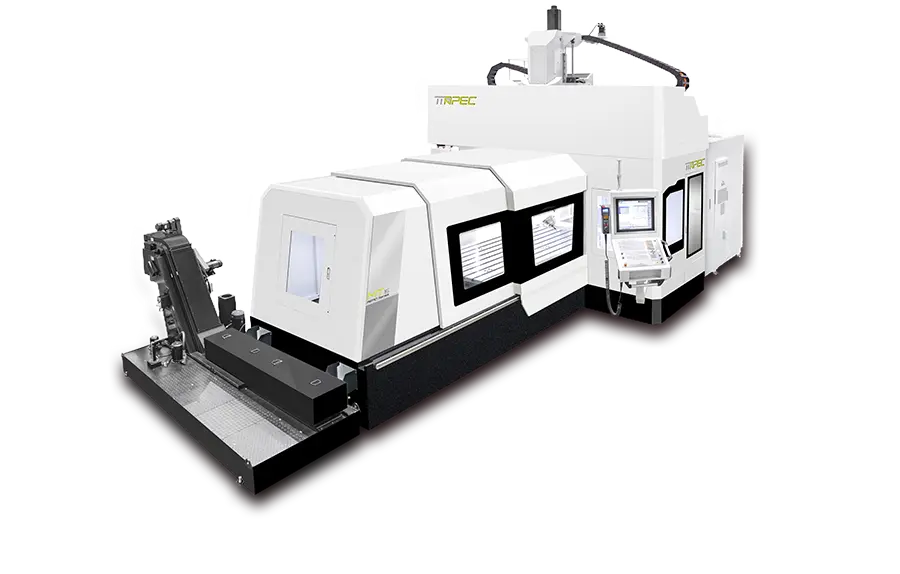

APEC MT2432 5-AXIS HIGH SPEED DOUBLE COLUMN MACHINING CENTER
ConditionNew
New
The APEC MT2432-5S is a high-performance 5-axis double-column machining center engineered for precision, stability, and efficiency in machining large and complex workpieces. Featuring a rigid, heavy-duty structural design, the machine delivers excellent stability, vibration resistance, and consistent machining accuracy, making it suitable for demanding industrial applications. Its advanced 5-axis machining capabilities enable complex contours, multi-surface machining, and intricate geometries to be completed with fewer setups, reducing handling time while improving productivity and overall part quality.
Designed for versatility and reliable performance, the MT2432-5S supports high-speed machining operations while maintaining precision and superior surface finishes. Its double-column construction provides the structural rigidity required for machining large components, while its flexible machining capabilities allow manufacturers to handle a wide range of materials and applications. Ideal for aerospace, automotive, mold and die, energy, and general precision manufacturing industries, the APEC MT2432-5S offers a dependable and productive machining solution for manufacturers seeking greater efficiency, machining flexibility, and consistent long-term performance.
HEIDENHAIN TNC7 WITH HR510 MPG
AGA FORK TYPE 2-AXIS MILLING HEAD
A/C MAX. SWIVEL/ROTATION SPEED: 60 RPM
B-AXIS SWIVEL/ROTATION TORQUE (RATED/MAX.)1,192 / 1,980 NM
C- AXIS SWIVEL/ROTATION TORQUE (RATED/MAX.) 1,070 / 2,090 NM
A/C-AXIS CAMPING TORQUE (RATED/MAX.) 4,000 NM
A-AXIS SWIVEL: 110°
C-AXIS ROTATION ANGLE: ±360°
15,000 RPM BUILT-IN SPINDLE, HSK100A
60 TOOLS ATC MAGAZINE
FULLY ENCLOSED SPLASH GUARD
X/Y/Z-AXIS WITH HIGH-SPEED BALL-SCREW DRIVE
X/Y/Z-AXIS WITH HIGH RIGIDITY ROLLER TYPE LINEAR GUIDE-WAY
5-AXIS WITH HEIDENHAIN LINEAR/ CIRCULAR OPTICAL SCALE
FULLY ENCLOSURE SPLASH GUARD
AIR-CONDITIONER FOR ELECTRICAL CABINET
SPINDLE CHILLER
COOLANT AROUND SPINDLE
OIL-AIR LUBRICATION DEVICE FOR SPINDLE
OIL MIST AROUND SPINDLE
CHIP AUGER SYSTEM
STANDARD COOLANT TANK
SAFETY INTERLOCK OF FRONT AND BACK DOOR
WATER-PROOF WORKING LAMP
AIR DRYER
The APEC MT2432-5S is a high-performance 5-axis double-column machining center engineered for precision, stability, and efficiency in machining large and complex workpieces. Featuring a rigid, heavy-duty structural design, the machine delivers excellent stability, vibration resistance, and consistent machining accuracy, making it suitable for demanding industrial applications. Its advanced 5-axis machining capabilities enable complex contours, multi-surface machining, and intricate geometries to be completed with fewer setups, reducing handling time while improving productivity and overall part quality.
Designed for versatility and reliable performance, the MT2432-5S supports high-speed machining operations while maintaining precision and superior surface finishes. Its double-column construction provides the structural rigidity required for machining large components, while its flexible machining capabilities allow manufacturers to handle a wide range of materials and applications. Ideal for aerospace, automotive, mold and die, energy, and general precision manufacturing industries, the APEC MT2432-5S offers a dependable and productive machining solution for manufacturers seeking greater efficiency, machining flexibility, and consistent long-term performance.
Metric
| X-Axis Travel | 3,200 mm |
| Y-Axis Travel | 3,000 mm |
| Z-Axis Travel | 1,000 mm |
| Distance Between Column | 2,400 mm |
| Spindle Nose to Table Top | 910 mm |
| Table Surface to Spindle Dist. | 125 - 1125 MM |
| Table Size-X | 3,000 mm |
| Table Size-Y | 2,060 mm |
| Table Load Capacity | 12,700.6 kg |
| Standard Spindle Taper | HSK100A |
| Standard Spindle Speed | 12,000 RPM |
| Rapid Feedrate (Traverse) | 20 m/min |
| Spindle Power (S1/S6) | 50/76 kW |
| Spindle Torque (S1/S6) | 200/302 NM |
| ATC | 60 |
| Max Tool Dia with Adjacent | 125 mm |
| Max Tool Dia without Adjacent | 250 mm |
| Max Tool Length | 400 mm |
| Max Tool Weight | 25 kg |
| CN Control | Heidenhain TNC7 |
HEIDENHAIN TNC7 WITH HR510 MPG
AGA FORK TYPE 2-AXIS MILLING HEAD
A/C MAX. SWIVEL/ROTATION SPEED: 60 RPM
B-AXIS SWIVEL/ROTATION TORQUE (RATED/MAX.)1,192 / 1,980 NM
C- AXIS SWIVEL/ROTATION TORQUE (RATED/MAX.) 1,070 / 2,090 NM
A/C-AXIS CAMPING TORQUE (RATED/MAX.) 4,000 NM
A-AXIS SWIVEL: 110°
C-AXIS ROTATION ANGLE: ±360°
15,000 RPM BUILT-IN SPINDLE, HSK100A
60 TOOLS ATC MAGAZINE
FULLY ENCLOSED SPLASH GUARD
X/Y/Z-AXIS WITH HIGH-SPEED BALL-SCREW DRIVE
X/Y/Z-AXIS WITH HIGH RIGIDITY ROLLER TYPE LINEAR GUIDE-WAY
5-AXIS WITH HEIDENHAIN LINEAR/ CIRCULAR OPTICAL SCALE
FULLY ENCLOSURE SPLASH GUARD
AIR-CONDITIONER FOR ELECTRICAL CABINET
SPINDLE CHILLER
COOLANT AROUND SPINDLE
OIL-AIR LUBRICATION DEVICE FOR SPINDLE
OIL MIST AROUND SPINDLE
CHIP AUGER SYSTEM
STANDARD COOLANT TANK
SAFETY INTERLOCK OF FRONT AND BACK DOOR
WATER-PROOF WORKING LAMP
AIR DRYER
