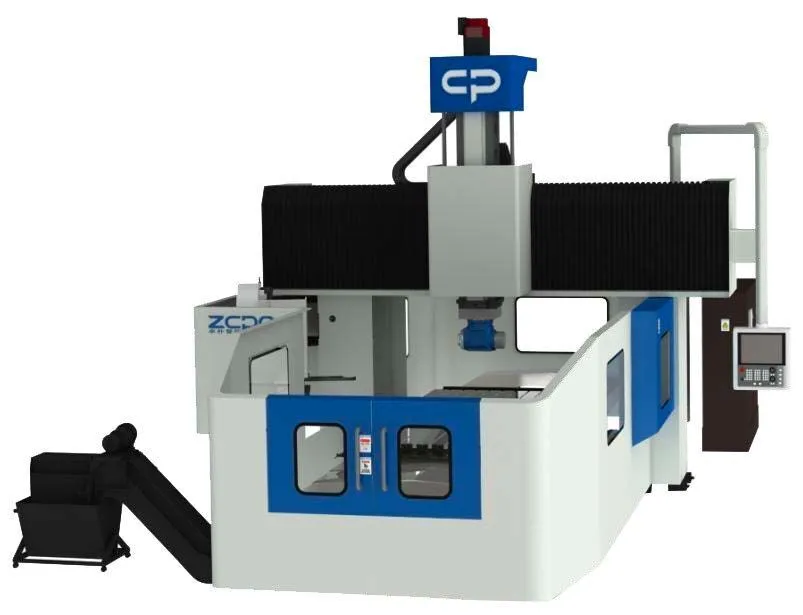

ZOPO SP3060L-RII ZOPO HEAVY DUTY LARGE CNC GANTRY

Description

The ZOPO SP3060L-RII is a heavy-duty double column machining center engineered for large-scale, high-precision machining applications. Built with a rigid cast-iron structure, high-torque geared spindle, and a large-capacity worktable, this machine is designed to handle demanding cutting operations on oversized and heavy workpieces while maintaining machining stability and accuracy.

Featuring a 6,200 × 4,200 × 1,250 mm X/Y/Z travel, a 3,000 × 6,000 mm worktable, and a 35,000 kg table load capacity, the SP3060L-RII provides the working envelope and structural rigidity required for large components used in heavy machinery, energy, mold and die, and general industrial manufacturing.

The machine features a CAT50 geared spindle rated at 4,000 RPM, delivering up to 1,510 Nm of torque (S6) with a 30/37 kW spindle motor (S1/S6). Its X and Y axes utilize heavy-duty roller-type linear guideways, while the Z-axis incorporates a 460 × 460 mm box-type square ram for improved rigidity and vibration damping during heavy cutting operations.

Equipped with a FANUC 0i-MF Plus Type 1A CNC controller, the machine includes a 15-inch LCD display, 400-block look-ahead, data server, and Ethernet connectivity for efficient programming and machining operations.

The quoted configuration also includes an automatic 90-degree milling head, automatic universal milling head, 60-tool CAT50 vertical/horizontal tool magazine, 70-bar through-spindle coolant system, and Heidenhain linear scales on all three axes, providing greater machining flexibility for complex and multi-surface components.
