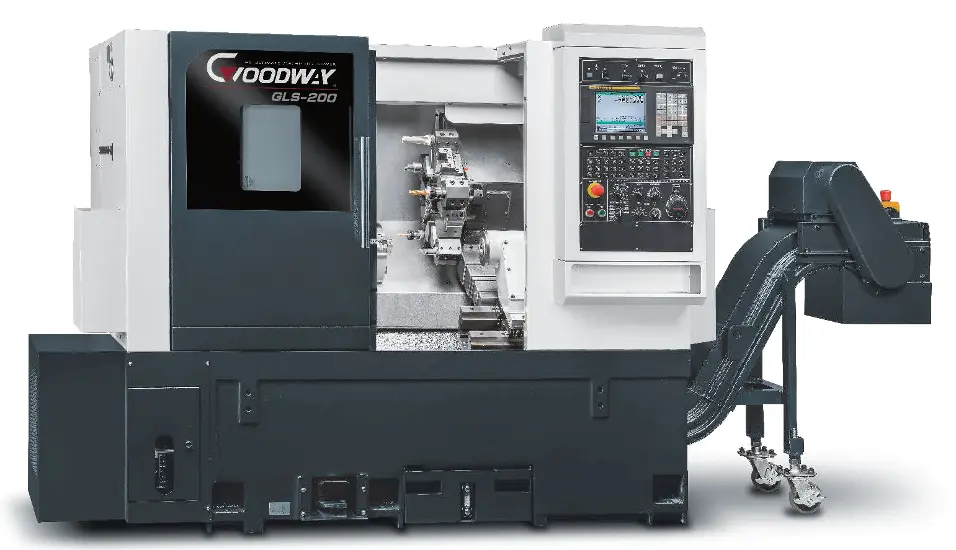

GOODWAY GLS-200 HIGH SPEED CNC TURNING CENTER
ConditionNew
New
The Goodway GLS-200 High-Speed CNC Turning Center is a precision-engineered machine tool designed to deliver superior performance, accuracy, and reliability for modern manufacturing. Built with a thermally balanced one-piece MEEHANITE® casting and a 30-degree slant bed design, the GLS-200 provides exceptional rigidity and vibration damping, ensuring long-term machining accuracy and extended tool life. Powered by a 15 kW (20 HP) spindle motor with 4,500 rpm speed and P4-class super-precision bearings, this CNC lathe offers outstanding torque and smooth performance for heavy-duty turning applications. Its 8-inch hydraulic chuck and 65 mm bar capacity make it ideal for a wide range of precision machining tasks in industries such as automotive, aerospace, and general engineering.
The GLS-200’s 12-station servo-driven turret ensures fast indexing in just 0.2 seconds, while optional live tooling and Y-axis capabilities enable complex milling, drilling, and contouring operations in a single setup, reducing cycle time and increasing productivity. Equipped with the advanced FANUC Oi-TF Plus CNC control system, this high-speed turning center features a 10.4-inch color LCD, 3D cutting simulation, manual guide programming, and intelligent load monitoring for easy setup and enhanced operational efficiency. The machine’s linear guideways deliver high-speed, smooth movement up to 30 m/min, supported by an automatic lubrication system, fully enclosed splashguards, and optional high-pressure coolant system for a clean, reliable production environment. With available automation options such as bar feeders, parts conveyors, and gantry loaders, the Goodway GLS-200 CNC lathe offers unmatched versatility and productivity for high-precision, high-volume machining operations.
Key Features:
• High-speed machining with up to 30 m/min rapids.
• Durable construction: 30° slant bed and Meehanite casting for increased rigidity.
• Optional live tooling, C-axis, and Y-axis for versatile turning and milling applications.
• Precision control with rigid tapping and direct belt-drive spindle system.
• Designed for long-term high precision and extended tool life.
• Enhanced safety: Fully enclosed splashguards and auto lubrication system.
FANUC 0i-TF PLUS CONTROL WITH 10.4" LCD SCREEN
FANUC MANUAL GUIDE-I
FANUC ALPHA P22 SPINDLE MOTOR 11/15KW
LINEAR GUIDEWAYS ON ALL AXIS
8" HYDRAULIC CYLINDER
STANDARD 12 STATION SERVO TURRET
STANDARD TOOL HOLDER AND SLEEVE PACKAGE
CHIP DRAWER (WITHOUT CHIP CONVEYOR)
COOLANT SYSTEM WITH GRUNDFOS 3/4HP COOLANT PUMPT
ELECTRICAL CABINET HEAT EXCHANGER
FULLY ENCLOSED GUARDING
DOOR INTERLOCK TAILSTOCK STROKE OUT-END CHECK
CHUCK CYLINDER STROKE OUT-END CHECK CHUCK CYLINDER CHECK VALVE
LOW HYDRAULIC PRESSURE DETECTION SWITCH OVER TRAVEL ( SOFT LIMIT )
The Goodway GLS-200 High-Speed CNC Turning Center is a precision-engineered machine tool designed to deliver superior performance, accuracy, and reliability for modern manufacturing. Built with a thermally balanced one-piece MEEHANITE® casting and a 30-degree slant bed design, the GLS-200 provides exceptional rigidity and vibration damping, ensuring long-term machining accuracy and extended tool life. Powered by a 15 kW (20 HP) spindle motor with 4,500 rpm speed and P4-class super-precision bearings, this CNC lathe offers outstanding torque and smooth performance for heavy-duty turning applications. Its 8-inch hydraulic chuck and 65 mm bar capacity make it ideal for a wide range of precision machining tasks in industries such as automotive, aerospace, and general engineering.
The GLS-200’s 12-station servo-driven turret ensures fast indexing in just 0.2 seconds, while optional live tooling and Y-axis capabilities enable complex milling, drilling, and contouring operations in a single setup, reducing cycle time and increasing productivity. Equipped with the advanced FANUC Oi-TF Plus CNC control system, this high-speed turning center features a 10.4-inch color LCD, 3D cutting simulation, manual guide programming, and intelligent load monitoring for easy setup and enhanced operational efficiency. The machine’s linear guideways deliver high-speed, smooth movement up to 30 m/min, supported by an automatic lubrication system, fully enclosed splashguards, and optional high-pressure coolant system for a clean, reliable production environment. With available automation options such as bar feeders, parts conveyors, and gantry loaders, the Goodway GLS-200 CNC lathe offers unmatched versatility and productivity for high-precision, high-volume machining operations.
Key Features:
• High-speed machining with up to 30 m/min rapids.
• Durable construction: 30° slant bed and Meehanite casting for increased rigidity.
• Optional live tooling, C-axis, and Y-axis for versatile turning and milling applications.
• Precision control with rigid tapping and direct belt-drive spindle system.
• Designed for long-term high precision and extended tool life.
• Enhanced safety: Fully enclosed splashguards and auto lubrication system.
Metric
| Max Swing Diameter | 500 mm |
| Swing Over Saddle | 310 mm |
| Max Turning Diameter | 280 mm |
| Max Turning Length | 500 mm |
| Standard Chuck Size | 203.2 mm |
| Standard Bar Capacity | 65 mm |
| Hole through spindle | 76 mm |
| Spindle Bearing Diameter | 110 mm |
| Spindle Nose | A2-6 |
| Spindle Speed | 4,500 RPM |
| CN Control | FANUC OR MITSUBISHI |
FANUC 0i-TF PLUS CONTROL WITH 10.4" LCD SCREEN
FANUC MANUAL GUIDE-I
FANUC ALPHA P22 SPINDLE MOTOR 11/15KW
LINEAR GUIDEWAYS ON ALL AXIS
8" HYDRAULIC CYLINDER
STANDARD 12 STATION SERVO TURRET
STANDARD TOOL HOLDER AND SLEEVE PACKAGE
CHIP DRAWER (WITHOUT CHIP CONVEYOR)
COOLANT SYSTEM WITH GRUNDFOS 3/4HP COOLANT PUMPT
ELECTRICAL CABINET HEAT EXCHANGER
FULLY ENCLOSED GUARDING
DOOR INTERLOCK TAILSTOCK STROKE OUT-END CHECK
CHUCK CYLINDER STROKE OUT-END CHECK CHUCK CYLINDER CHECK VALVE
LOW HYDRAULIC PRESSURE DETECTION SWITCH OVER TRAVEL ( SOFT LIMIT )
