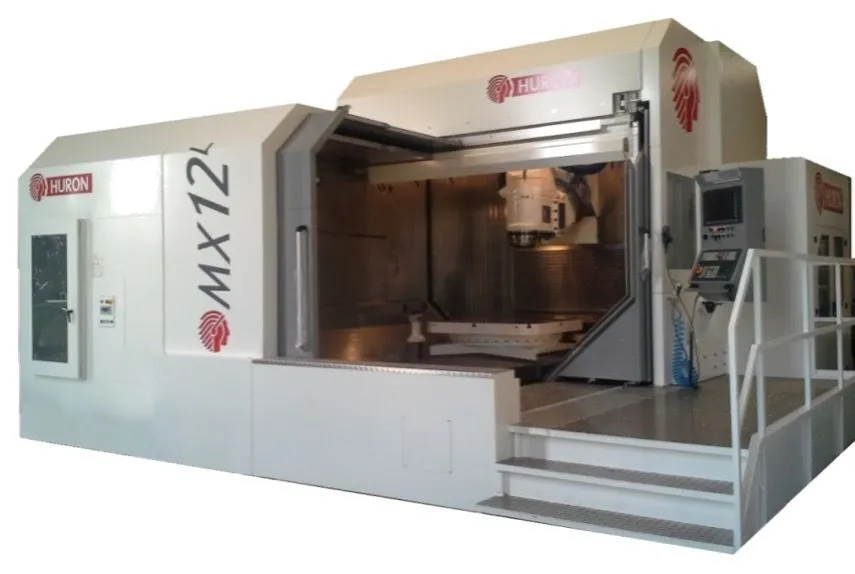

HURON MX-12M 5-AXIS PORTAL STYLE MACHINING CENTER

Description

The HURON MX-12M 5-Axis Portal-Style Milling Center is a high-performance CNC machining solution designed for precision, rigidity, and versatility in complex milling applications. Featuring a robust portal-style structure and advanced 5-axis machining technology, the MX-12M delivers exceptional stability, accuracy, and cutting performance for manufacturers handling demanding components and intricate geometries. Its rigid construction and large working envelope make it particularly suitable for aerospace, automotive, mold and die, energy, and general precision engineering applications.

The MX-12M features a vertical milling head with an inclined A-axis configuration and an integrated rotary table, enabling simultaneous 5-axis machining of complex contours, angled surfaces, and multi-sided components with fewer setups. With X, Y, and Z-axis travels of 1,200 mm, 1,600 mm, and 1,000 mm, respectively, and a rotary table measuring 1,600 × 1,250 mm, the machine offers generous machining capacity for medium-to-large workpieces. Its portal-style architecture provides the structural rigidity required for demanding milling operations while maintaining precision across the machining envelope.

Designed to accommodate a wide range of machining requirements, the HURON MX-12M offers spindle configurations starting from 8,000 RPM, with higher-speed options up to 14,000 RPM and HSK-A100 or HSK-A63 tooling interfaces, depending on the selected configuration. These options allow manufacturers to balance spindle speed, torque, and cutting performance for applications ranging from heavy-duty material removal to high-speed precision finishing. An automatic tool-changing system supports efficient tool management and continuous machining operations, reducing non-cutting time and improving overall productivity.

The MX-12M is equipped with the advanced HEIDENHAIN TNC 640 CNC control, providing intuitive programming, precise motion control, and sophisticated 5-axis machining capabilities. Its flexible configuration can accommodate optional equipment such as high-pressure through-spindle coolant, air-blast systems, RENISHAW workpiece and tool probing, 5-axis kinematic software, and precision measurement systems. Additional features, including full machine guarding, integrated chip evacuation, coolant management, and HURON Secure Remote Service connectivity, contribute to efficient operation, improved process reliability, and simplified maintenance.

Combining robust construction, flexible spindle configurations, advanced CNC technology, and versatile 5-axis milling capabilities, the HURON MX-12M is an ideal solution for manufacturers seeking to increase productivity, minimize setup times, and achieve consistent machining accuracy. Its adaptable design allows the machine to be configured for a broad range of production requirements, from complex one-off components to precision machining of high-value industrial parts.
