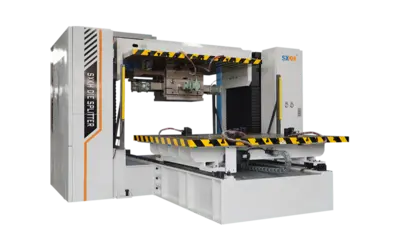

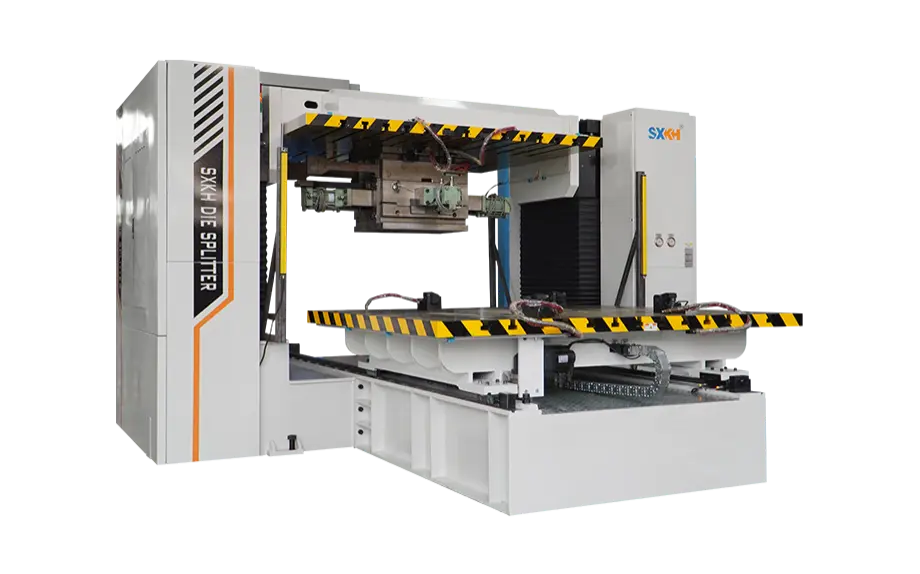

SXKH SMG-3217 DIE SPLITTER

Description

Die Splitter is the surest & safe way to check the butting of core & cavity of Die & Mould. It allows you to conveniently separate two parts of the mould or die in more comfortable and safe position. Check and finish the die at one place in more ergonomic position.

1. The main parts:
• Presses with four 40Cr alloy steel columns, using Oil-free self-lubrication graphite copper sleeve, it makes the machine cleaner and more environmentally friendly.
• The upper platen, equipped two gear motor, can be titled forward up to 180°
• The shift-out rail of lower platen adopts wear resistant rail with intensified handle and large-scale dust-proof device, driven by Servo Motor with gear structure, which are easy for maintenance.
• Using high tensile rod to provide higher accuracy and to make more convenient for platen parallelism adjustment when the mold is closed with high pressure.
• Using quick cylinder device, it speeds up null stroke without mold closing, and it makes lower energy consumption and more energy conservation.

2. Hydraulic and electrical system:
• Servo hydraulic system adopts optimal combination of imported high performance hydraulic elements, ensure accurate and keep machine quiet. Oil pump hydraulic valve is the world first-class brand.
• Servo system closed loop control
• Achieving digital PLC controlled by computer, all of the parameters can be displayed by the Siemens touch screen and free to set up.

3. Mold-protection function:
• Using the proportional backpressure method, it can be adjusted freely according to the actual weight of mold and play an actual role of mold protection.

4. Safety Design:
• Using Anti-dropping, safety devices with suspension type to make your mold and machine safer
• Sufficient Safety Devices and Pneumatic-mechanical locks on the right and left sides of upper platen.
• Providing practical reliable failure detection and alarm and low-pressure mold protection functions.
