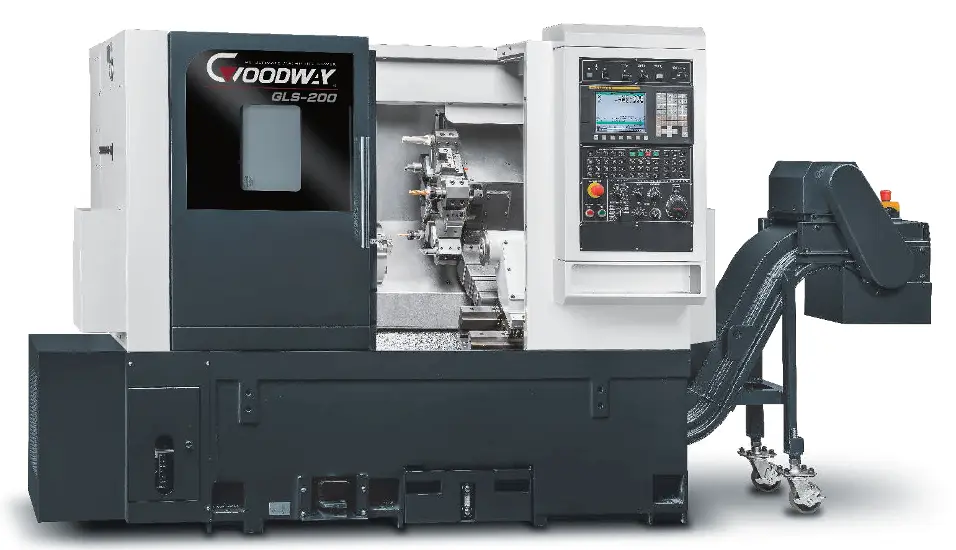

GOODWAY GLS-200M (SN: 896141) HIGH SPEED CNC TURNING CENTER
ConditionNew
New
The Goodway GLS-200 High-Speed CNC Turning Center is a precision-engineered machine tool designed to deliver superior performance, accuracy, and reliability for modern manufacturing. Built with a thermally balanced one-piece MEEHANITE® casting and a 30-degree slant bed design, the GLS-200 provides exceptional rigidity and vibration damping, ensuring long-term machining accuracy and extended tool life. Powered by a 15 kW (20 HP) spindle motor with 4,500 rpm speed and P4-class super-precision bearings, this CNC lathe offers outstanding torque and smooth performance for heavy-duty turning applications. Its 8-inch hydraulic chuck and 65 mm bar capacity make it ideal for a wide range of precision machining tasks in industries such as automotive, aerospace, and general engineering.
The GLS-200’s 12-station servo-driven turret ensures fast indexing in just 0.2 seconds, while optional live tooling and Y-axis capabilities enable complex milling, drilling, and contouring operations in a single setup, reducing cycle time and increasing productivity. Equipped with the advanced FANUC Oi-TF Plus CNC control system, this high-speed turning center features a 10.4-inch color LCD, 3D cutting simulation, manual guide programming, and intelligent load monitoring for easy setup and enhanced operational efficiency. The machine’s linear guideways deliver high-speed, smooth movement up to 30 m/min, supported by an automatic lubrication system, fully enclosed splashguards, and optional high-pressure coolant system for a clean, reliable production environment. With available automation options such as bar feeders, parts conveyors, and gantry loaders, the Goodway GLS-200 CNC lathe offers unmatched versatility and productivity for high-precision, high-volume machining operations.
Key Features:
• High-speed machining with up to 30 m/min rapids.
• Durable construction: 30° slant bed and Meehanite casting for increased rigidity.
• Optional live tooling, C-axis, and Y-axis for versatile turning and milling applications.
• Precision control with rigid tapping and direct belt-drive spindle system.
• Designed for long-term high precision and extended tool life.
• Enhanced safety: Fully enclosed splashguards and auto lubrication system.
FANUC 0I-TF PLUS CONTROL WITH 10.4" COLOR LCD
RIGID TAPPING
FANUC ALPHA SPINDLE & SERVO DRIVES
FANUC AC 15 HP (CONT.), 20 HP (30 MIN.), 25 HP (PEAK) SPINDLE MOTOR
X/Z AXIS FANUC SERVO MOTOR WITH ABSOLUTE ENCODER
DIRECT BELT DRIVEN SPINDLE
HIGH-PRECISION LINEAR GUIDE WAYS
8 INCH 3-JAW THROUGH-HOLE (65 MM) BIG-BORE POWER CHUCK
GOODWAY 12 STATION LIVE TOOLING TURRET CY-DCD0 (12 LIVE OF 12 STATION)
CS AXIS
0-DEGREE DRIVEN TOOL HOLDER (CY-DCD0 TURRET)
90-DEGREE DRIVEN TOOL HOLDER (CY-DCD0 TURRET)
RENISHAW HPMA TOOL SETTER
SMART CHUCK SENSOR
BAR FEEDER INTERFACE
PARTS CATCHER
SPINDLE ORIENTATION - 1 DEGREE INDEXING
USER DEFINABLE MACRO
TAILSTOCK WITH PROGRAMMABLE NON-ROTATING QUILL (MT#4)
3 COLOR TOWER SIGNAL
UPGRADE CHIP PAN TO 47" SIDE DISCHARGE CHIP CONVEYOR D51
UPGRADE TO 132 PSI HIGH PRESSURE COOLANT PUMP (MTH-2/70)
OIL SKIMMER
2-SPEED SPINDLE MOTOR CONFIGURATION
M CODE AUTOMATIC POWER OFF
HIGH INTENSITY WORK LIGHT
OPERATION & MAINTENANCE MANUALS
TOOL BOX WITH EMERGENCY MAINTENANCE ELECTRICAL PART PACKAGE
FULLY ENCLOSED GUARDING
DOOR INTERLOCK
HYDRAULIC PRESSURE SAFETY SWITCHA AND PROGRAM PROTECT
CHUCK CLAMP/UNCLAMP CONFIRMATION
The Goodway GLS-200 High-Speed CNC Turning Center is a precision-engineered machine tool designed to deliver superior performance, accuracy, and reliability for modern manufacturing. Built with a thermally balanced one-piece MEEHANITE® casting and a 30-degree slant bed design, the GLS-200 provides exceptional rigidity and vibration damping, ensuring long-term machining accuracy and extended tool life. Powered by a 15 kW (20 HP) spindle motor with 4,500 rpm speed and P4-class super-precision bearings, this CNC lathe offers outstanding torque and smooth performance for heavy-duty turning applications. Its 8-inch hydraulic chuck and 65 mm bar capacity make it ideal for a wide range of precision machining tasks in industries such as automotive, aerospace, and general engineering.
The GLS-200’s 12-station servo-driven turret ensures fast indexing in just 0.2 seconds, while optional live tooling and Y-axis capabilities enable complex milling, drilling, and contouring operations in a single setup, reducing cycle time and increasing productivity. Equipped with the advanced FANUC Oi-TF Plus CNC control system, this high-speed turning center features a 10.4-inch color LCD, 3D cutting simulation, manual guide programming, and intelligent load monitoring for easy setup and enhanced operational efficiency. The machine’s linear guideways deliver high-speed, smooth movement up to 30 m/min, supported by an automatic lubrication system, fully enclosed splashguards, and optional high-pressure coolant system for a clean, reliable production environment. With available automation options such as bar feeders, parts conveyors, and gantry loaders, the Goodway GLS-200 CNC lathe offers unmatched versatility and productivity for high-precision, high-volume machining operations.
Key Features:
• High-speed machining with up to 30 m/min rapids.
• Durable construction: 30° slant bed and Meehanite casting for increased rigidity.
• Optional live tooling, C-axis, and Y-axis for versatile turning and milling applications.
• Precision control with rigid tapping and direct belt-drive spindle system.
• Designed for long-term high precision and extended tool life.
• Enhanced safety: Fully enclosed splashguards and auto lubrication system.
Metric
| Max Swing Diameter | 19.685" |
| Swing Over Saddle | 12.205" |
| Max Turning Diameter | 11.024" |
| Max Turning Length | 13.386" |
| Chuck Size | 203.2 mm |
| Bar Capacity | 2.5591" |
| Hole Through Spindle | 2.9921" |
| Spindle Bearing Dia | 4.3307" |
| Spindle Nose | A2-6 |
| Spindle Speed | 4,500 RPM |
| Live Tooling Stations | 12 |
| Live Tooling RPM Range | 4000 RPM |
| Tailstock Taper | MT4 |
| CN Control | FANUC 0i-TF PLUS |
FANUC 0I-TF PLUS CONTROL WITH 10.4" COLOR LCD
RIGID TAPPING
FANUC ALPHA SPINDLE & SERVO DRIVES
FANUC AC 15 HP (CONT.), 20 HP (30 MIN.), 25 HP (PEAK) SPINDLE MOTOR
X/Z AXIS FANUC SERVO MOTOR WITH ABSOLUTE ENCODER
DIRECT BELT DRIVEN SPINDLE
HIGH-PRECISION LINEAR GUIDE WAYS
8 INCH 3-JAW THROUGH-HOLE (65 MM) BIG-BORE POWER CHUCK
GOODWAY 12 STATION LIVE TOOLING TURRET CY-DCD0 (12 LIVE OF 12 STATION)
CS AXIS
0-DEGREE DRIVEN TOOL HOLDER (CY-DCD0 TURRET)
90-DEGREE DRIVEN TOOL HOLDER (CY-DCD0 TURRET)
RENISHAW HPMA TOOL SETTER
SMART CHUCK SENSOR
BAR FEEDER INTERFACE
PARTS CATCHER
SPINDLE ORIENTATION - 1 DEGREE INDEXING
USER DEFINABLE MACRO
TAILSTOCK WITH PROGRAMMABLE NON-ROTATING QUILL (MT#4)
3 COLOR TOWER SIGNAL
UPGRADE CHIP PAN TO 47" SIDE DISCHARGE CHIP CONVEYOR D51
UPGRADE TO 132 PSI HIGH PRESSURE COOLANT PUMP (MTH-2/70)
OIL SKIMMER
2-SPEED SPINDLE MOTOR CONFIGURATION
M CODE AUTOMATIC POWER OFF
HIGH INTENSITY WORK LIGHT
OPERATION & MAINTENANCE MANUALS
TOOL BOX WITH EMERGENCY MAINTENANCE ELECTRICAL PART PACKAGE
FULLY ENCLOSED GUARDING
DOOR INTERLOCK
HYDRAULIC PRESSURE SAFETY SWITCHA AND PROGRAM PROTECT
CHUCK CLAMP/UNCLAMP CONFIRMATION
