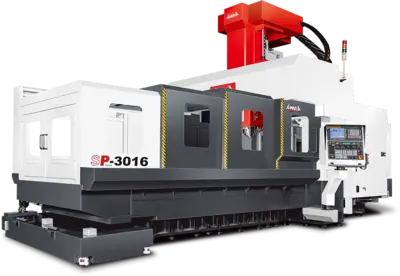

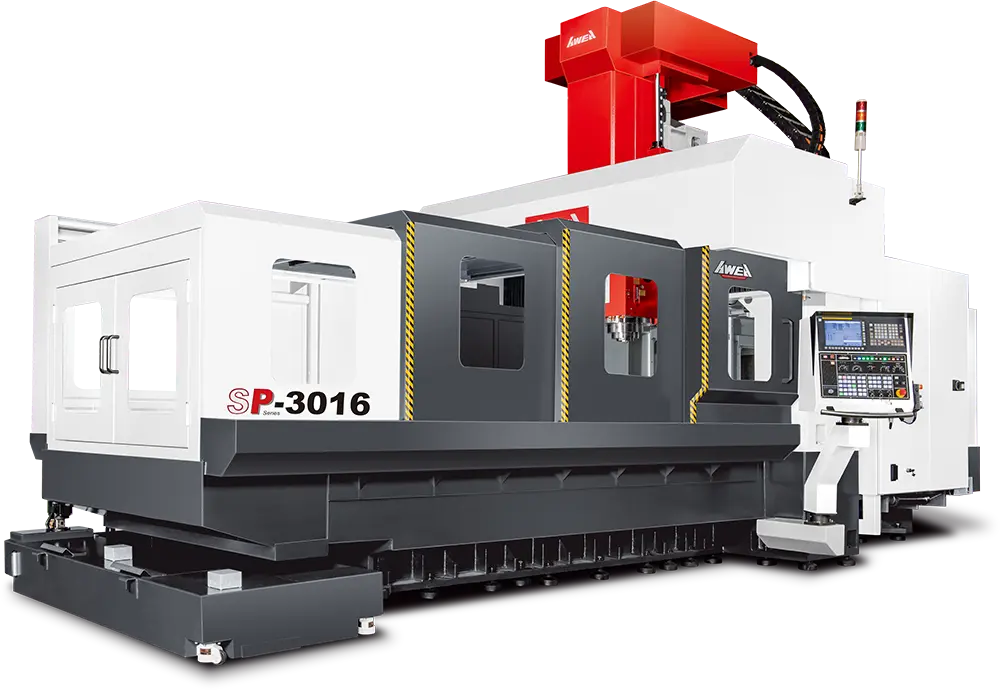

AWEA SP-3016YF BRIDGE TYPE VERTICAL MACHINING CENTER with 90° HEAD
ConditionNew
New
Representing AWEA’s “The royal family of bridge machines” of mature manufacturing abilities and advanced technology skills, the SP series bridge-type vertical machining centers combine strong spindle power and high rigidity structure along with high-quality automation equipment and a full product line to provide you with high efficiency, high productivity machining strategies; it can be broadly applied in the automotive, precision mold, aerospace and energy industries.
Key Highlights:
• The modular spindle design provides cutting flexibility for various working conditions.
• High-rigidity roller-type linear guideways on the X, and Y axes offer heavy-duty cutting, fast movement, and low abrasion capabilities.
• The Z-axis is adopted with a high rigidity box way which is hardened and precisely ground suitable for heavy-duty cutting conditions.
FANUC 31i MB PLUS WITH 15" LCD SCREEN
6,000 RPM GEAR DRIVEN SPINDLE, CAT50 DUAL CONTACT
GEAR SPINDLE MOTOR 22/26 KW
60 TOOLS ATC MAGAZINE
35 BAR COOLANT THROUGH SPINDLE SYSTEM, ALLCOOL MB500, MANUAL PRESSURE ADJ., SINGLE FILTER (WITH SUB TANK) (HOSES AND ROTARY JOINT 1000 PSI CAPABLE)
F OPTION (ONE AUTO 90° HEAD AT 5° INDEXING, 3,000 RPM, HEAD STORAGE COMPARTMENTS, HORIZONTAL/VERTICAL ATC)
90° HEAD UPGRADE WITH CTS PREP. AT 40 BAR (MUST ORDER CS ANGLE AUTO CHANGE AND CTS)
ADD TWO FLUORESCENT LIGHTS
LINEAR SCALE ON X, Y, Z AXES
LINEAR SCALE AIR PURGE
OIL LUBRICANT SEPARATOR
UL STANDARD COMPONENTS
DOOR INTERLOCK
ROOF ENCLOSED SPLASH GUARD
CATERPILLAR TYPE CHIP CONVEYOR
TWIN COIL TYPE CHIP AUGERS
SPINDLE COOLING SYSTEM
COOLANT SYSTEM WITH PUMP AND TANK
EXTENSION OPERATOR DOOR
CENTRALIZED AUTOMATIC LUBRICATING SYSTEM
AUTOMATIC POWER OFF SYSTEM
THREE AXES COLLISION IMPACT ABSORBING CLUTCH SYSTEM
THREE AXES SEMI-CLOSED LOOP FEEDBACK WITH EXTERNAL ENCODERS
Representing AWEA’s “The royal family of bridge machines” of mature manufacturing abilities and advanced technology skills, the SP series bridge-type vertical machining centers combine strong spindle power and high rigidity structure along with high-quality automation equipment and a full product line to provide you with high efficiency, high productivity machining strategies; it can be broadly applied in the automotive, precision mold, aerospace and energy industries.
Key Highlights:
• The modular spindle design provides cutting flexibility for various working conditions.
• High-rigidity roller-type linear guideways on the X, and Y axes offer heavy-duty cutting, fast movement, and low abrasion capabilities.
• The Z-axis is adopted with a high rigidity box way which is hardened and precisely ground suitable for heavy-duty cutting conditions.
Metric
| X-Axis Travel | 118.11" |
| Y-Axis Travel | 90.551" |
| Z-Axis Travel | 29.921" |
| Distance Between Column | 66.929" |
| Spindle Nose to Table Top | 37.795" |
| Table Size-X | 128.35" |
| Table Size-Y | 59.055" |
| Table Load Capacity | 22,046.2 lb |
| Standard Spindle Taper | CAT50 |
| Standard Spindle Speed | 6,000 RPM |
| Rapid Feedrate (Traverse) | 20/15/15 m/min |
| ATC | 60 |
| Max Tool Dia with Adjacent | 4.9213" |
| Max Tool Dia without Adjacent | 8.4646" |
| Max Tool Length | 15.748" |
| Max Tool Weight | 44.1 lb |
| CN Control | Fanuc 0iMF-Plus |
FANUC 31i MB PLUS WITH 15" LCD SCREEN
6,000 RPM GEAR DRIVEN SPINDLE, CAT50 DUAL CONTACT
GEAR SPINDLE MOTOR 22/26 KW
60 TOOLS ATC MAGAZINE
35 BAR COOLANT THROUGH SPINDLE SYSTEM, ALLCOOL MB500, MANUAL PRESSURE ADJ., SINGLE FILTER (WITH SUB TANK) (HOSES AND ROTARY JOINT 1000 PSI CAPABLE)
F OPTION (ONE AUTO 90° HEAD AT 5° INDEXING, 3,000 RPM, HEAD STORAGE COMPARTMENTS, HORIZONTAL/VERTICAL ATC)
90° HEAD UPGRADE WITH CTS PREP. AT 40 BAR (MUST ORDER CS ANGLE AUTO CHANGE AND CTS)
ADD TWO FLUORESCENT LIGHTS
LINEAR SCALE ON X, Y, Z AXES
LINEAR SCALE AIR PURGE
OIL LUBRICANT SEPARATOR
UL STANDARD COMPONENTS
DOOR INTERLOCK
ROOF ENCLOSED SPLASH GUARD
CATERPILLAR TYPE CHIP CONVEYOR
TWIN COIL TYPE CHIP AUGERS
SPINDLE COOLING SYSTEM
COOLANT SYSTEM WITH PUMP AND TANK
EXTENSION OPERATOR DOOR
CENTRALIZED AUTOMATIC LUBRICATING SYSTEM
AUTOMATIC POWER OFF SYSTEM
THREE AXES COLLISION IMPACT ABSORBING CLUTCH SYSTEM
THREE AXES SEMI-CLOSED LOOP FEEDBACK WITH EXTERNAL ENCODERS
