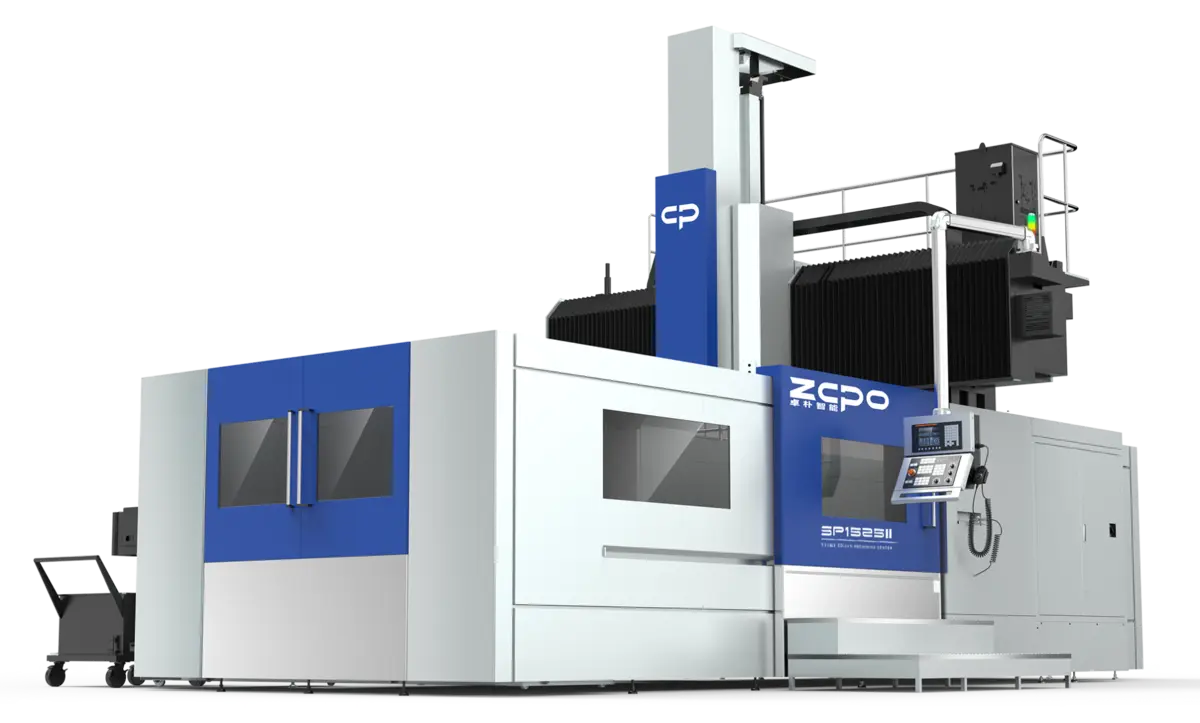

ZOPO SP-1525II BRIDGE TYPE (DOUBLE COLUMN) VERTICAL MACHINING CENTER
ConditionNew
New
The ZOPO SP-1525II Bridge Type Vertical Machining Center is a high-rigidity double column machining solution engineered for manufacturers requiring exceptional stability, heavy-duty cutting capability, and precision machining performance on large workpieces. Built with a robust bridge-type structure and optimized machine frame design, the SP-1525II delivers outstanding accuracy, rigidity, and long-term reliability for demanding industries such as aerospace, energy, mold & die, heavy equipment, automotive, and general precision manufacturing. Its double-column construction, high-torque spindle design, and precision guideway system make it ideal for heavy cutting applications, large component machining, and complex multi-surface operations.
The SP-1525II features a large worktable capacity and long-axis travel designed to handle oversized and heavy workpieces with confidence. Its rigid spindle head structure, advanced cooling systems, and high-performance servo control contribute to improved machining accuracy, superior surface finish quality, and consistent production performance over extended operating hours.
Key Features
• Rigid bridge-type double column machine structure for maximum stability
• High-torque spindle designed for heavy-duty cutting applications
• Precision guideway and ballscrew system for smooth and accurate axis movement
• Excellent rigidity and vibration resistance for large workpiece machining
• Suitable for milling, drilling, boring, tapping, and contour machining
• Large work envelope designed for oversized and heavy components
• Advanced CNC control system for reliable and user-friendly operation
• Efficient chip removal and coolant management system
FANUC 0i MF PLUS WITH 15” LCD SCREEN
FANUC AICCII
DISTANCE FROM TABLE SURFACE TO SPINDLE: 120-920 MM
6,000 RPM GEAR DRIVEN SPINDLE, 22/26KW, CAT50
40 TOOLS ATC MAGAZINE
30 BAR COOLANT THROUGH SPINDLE SYSTEM
3 AXIS HEIDENHAIN LINEAR SCALE
X/Y AXIS ROLLER TYPE LINEAR GUIDEWAY
Z AXIS BOX GUIDEWAY
Z AXIS COUNTER WEIGHT BALANCE SYSTEM
2* SCREW TYPE CHIP CONVEYOR
1* CHAIN TYPE CHIP CONVEYOR
FULLY ENCLOSED ROOF GUARD
OIL SKIMMER
WATER GUN
AIR GUN
ELECTRICAL CABINET AIR CONDITIONER
M30 POWER OFF
The ZOPO SP-1525II Bridge Type Vertical Machining Center is a high-rigidity double column machining solution engineered for manufacturers requiring exceptional stability, heavy-duty cutting capability, and precision machining performance on large workpieces. Built with a robust bridge-type structure and optimized machine frame design, the SP-1525II delivers outstanding accuracy, rigidity, and long-term reliability for demanding industries such as aerospace, energy, mold & die, heavy equipment, automotive, and general precision manufacturing. Its double-column construction, high-torque spindle design, and precision guideway system make it ideal for heavy cutting applications, large component machining, and complex multi-surface operations.
The SP-1525II features a large worktable capacity and long-axis travel designed to handle oversized and heavy workpieces with confidence. Its rigid spindle head structure, advanced cooling systems, and high-performance servo control contribute to improved machining accuracy, superior surface finish quality, and consistent production performance over extended operating hours.
Key Features
• Rigid bridge-type double column machine structure for maximum stability
• High-torque spindle designed for heavy-duty cutting applications
• Precision guideway and ballscrew system for smooth and accurate axis movement
• Excellent rigidity and vibration resistance for large workpiece machining
• Suitable for milling, drilling, boring, tapping, and contour machining
• Large work envelope designed for oversized and heavy components
• Advanced CNC control system for reliable and user-friendly operation
• Efficient chip removal and coolant management system
Metric
| X-Axis Travel | 102.36" |
| Y-Axis Travel | 74.803" |
| Z-Axis Travel | 31.496" |
| Distance Between Column | 74.803" |
| Distance from spindle center to column | 18.11" |
| Table Surface to Spindle Dist. | 120-920 MM |
| Table Size-X | 98.425" |
| Table Size-Y | 59.055" |
| Table Load Capacity | 19,841.6 lb |
| Standard Spindle Taper | CAT50 |
| Standard Spindle Speed | 6,000 RPM |
| Rapid Feedrate (Traverse) | 15/15/10 m/min |
| Max. Feed Speed | 8000 mm/min |
| ATC | 40 |
| # Axis | 3 |
| CN Control | FANUC 0i-MF PLUS |
FANUC 0i MF PLUS WITH 15” LCD SCREEN
FANUC AICCII
DISTANCE FROM TABLE SURFACE TO SPINDLE: 120-920 MM
6,000 RPM GEAR DRIVEN SPINDLE, 22/26KW, CAT50
40 TOOLS ATC MAGAZINE
30 BAR COOLANT THROUGH SPINDLE SYSTEM
3 AXIS HEIDENHAIN LINEAR SCALE
X/Y AXIS ROLLER TYPE LINEAR GUIDEWAY
Z AXIS BOX GUIDEWAY
Z AXIS COUNTER WEIGHT BALANCE SYSTEM
2* SCREW TYPE CHIP CONVEYOR
1* CHAIN TYPE CHIP CONVEYOR
FULLY ENCLOSED ROOF GUARD
OIL SKIMMER
WATER GUN
AIR GUN
ELECTRICAL CABINET AIR CONDITIONER
M30 POWER OFF
