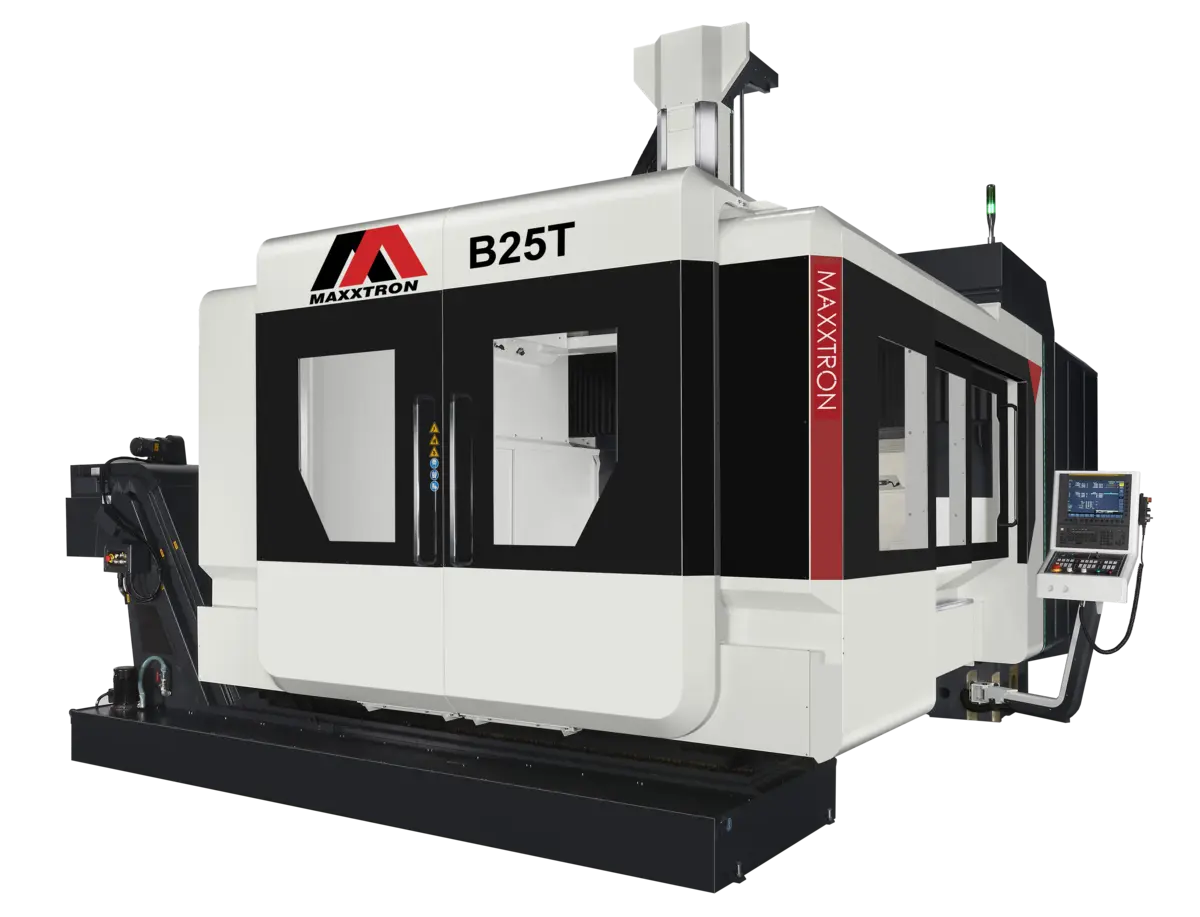

MAXXTRON B25-5A 5-AXIS BRIDGE TYPE MACHINING CENTER
ConditionNew
New
Introducing MAXXTRON B Series: Redefining Precision Machining
The MAXXTRON B Series stands at the forefront of precision machining solutions, meticulously designed to meet the rigorous requirements of parts production and die & mold industries. Widely embraced in the 3C, automobile, and mold machining sectors, the B Series offers unparalleled performance and reliability to elevate your machining operations to new heights.
Key Features:
• All 3 axes are equipped with high-precision roller-type linear guide ways to optimize acceleration/deceleration. And match the high speed, accuracy, and performance manufacturing requirements.
• Extra rigidity Column design: The unique design of the column structure is more stable than other comparable models, and the beam & column are made of one-piece casting providing the best rigidity and stability.
Saddle structure:
• The ladder-type design of linear guideways on the beam provides a wider supporting surface for the saddle, assuring the spindle of a powerful and stable cutting performance.
• Fully symmetrical design and perfect thermal equilibrium structural design, reduce high-speed thermal deformation so that the machine body structure can maintain high stability.
• The swivel operation cabinet allows users to operate at any angle and position.
• The wider width of the door opening makes the working piece easier to be loaded and unloaded.
HEIDENHAIN TNC7 5 AXES WITH 24" TOUCH SCREEN
KINEMATICSOPT CALIBRATION OF ROTARY AXIS
3 AXES POWER (X/Y/Z): 14.4/8.9/8.9 KW
12,000 RPM BUILT-IN SPINDLE, 55/64 KW, 124/162 NM, HSK-A100
32 TOOLS ATC MAGAZINE
MAX. SPEED A/C: 60/60 RPM
MAX. TORQUE A/C: 1200/1000 NM
CLAMPING TORQUE A/C: 2700/2700 NM
SWIVELING ANGLE A/C: ±105 /±270 DGE.
POSITIONING A/C: ±5/±5 ARC.SEC.
LASER TOOL LENGTH MEASUREMENT SYSTEM BLUM NT-A3
RENISHAW OMP60 PART PROBE
45 DEGREE CALIBRATION BALL (INC. MAGNETIC BASE)
40 BAR CTS (INC. ATS FUNCTION, PAPER FILTER, WATER TANK)
A/C AXIS WITH HEIDENHAIN ANGLE ENCODER
HEIDENHAIN LINEAR SCALES 3 AXES
FULL ENCLOSED SPLASH GUARD
SPINDLE COOLER
SPINDLE AIR BLAST
CUTTING AIR BLAST
CUTTING COOLANT SYSTEM
CENTRALIZED AUTO OIL LUBRICATION SYSTEM
WORKING LAMP
INDICATION LAMP
SCREW TYPE CONVEYOR*2 (TABLE SIDE)
STEEL BELT TYPE CHIP CONVEYOR AND CHIP CART
OIL SKIMMER
COOLANT FLUSHING SYSTEM (WASH DOWN SYSTEM)
ELECTRIC CABINET AIR CONDITIONER
CLEANING WATER GUN & AIR GUN
LEVELING BLOCKS AND BOLTS
Introducing MAXXTRON B Series: Redefining Precision Machining
The MAXXTRON B Series stands at the forefront of precision machining solutions, meticulously designed to meet the rigorous requirements of parts production and die & mold industries. Widely embraced in the 3C, automobile, and mold machining sectors, the B Series offers unparalleled performance and reliability to elevate your machining operations to new heights.
Key Features:
• All 3 axes are equipped with high-precision roller-type linear guide ways to optimize acceleration/deceleration. And match the high speed, accuracy, and performance manufacturing requirements.
• Extra rigidity Column design: The unique design of the column structure is more stable than other comparable models, and the beam & column are made of one-piece casting providing the best rigidity and stability.
Saddle structure:
• The ladder-type design of linear guideways on the beam provides a wider supporting surface for the saddle, assuring the spindle of a powerful and stable cutting performance.
• Fully symmetrical design and perfect thermal equilibrium structural design, reduce high-speed thermal deformation so that the machine body structure can maintain high stability.
• The swivel operation cabinet allows users to operate at any angle and position.
• The wider width of the door opening makes the working piece easier to be loaded and unloaded.
Metric
| X-Axis Travel | 98.425" |
| Y-Axis Travel | 90.551" |
| Z-Axis Travel | 31.496" |
| Spindle Nose to Table Dist. | 50-850 MM |
| Table Size - X | 110.24" |
| Table Size - Y | 66.929" |
| Table Load Capacity | 11,023.1 lb |
| Spindle Taper | HSK-A100 |
| Spindle Speed | 12,000 RPM |
| Spindle Power (S1/S6) | 5564 |
| Spindle Torque (S1/S6) | 124/162 NM |
| X/Y/Z Feed Rate | 787.4 in/min. |
| ATC | 32 TOOLS |
| CN Control | HEIDENHAIN TNC7 |
HEIDENHAIN TNC7 5 AXES WITH 24" TOUCH SCREEN
KINEMATICSOPT CALIBRATION OF ROTARY AXIS
3 AXES POWER (X/Y/Z): 14.4/8.9/8.9 KW
12,000 RPM BUILT-IN SPINDLE, 55/64 KW, 124/162 NM, HSK-A100
32 TOOLS ATC MAGAZINE
MAX. SPEED A/C: 60/60 RPM
MAX. TORQUE A/C: 1200/1000 NM
CLAMPING TORQUE A/C: 2700/2700 NM
SWIVELING ANGLE A/C: ±105 /±270 DGE.
POSITIONING A/C: ±5/±5 ARC.SEC.
LASER TOOL LENGTH MEASUREMENT SYSTEM BLUM NT-A3
RENISHAW OMP60 PART PROBE
45 DEGREE CALIBRATION BALL (INC. MAGNETIC BASE)
40 BAR CTS (INC. ATS FUNCTION, PAPER FILTER, WATER TANK)
A/C AXIS WITH HEIDENHAIN ANGLE ENCODER
HEIDENHAIN LINEAR SCALES 3 AXES
FULL ENCLOSED SPLASH GUARD
SPINDLE COOLER
SPINDLE AIR BLAST
CUTTING AIR BLAST
CUTTING COOLANT SYSTEM
CENTRALIZED AUTO OIL LUBRICATION SYSTEM
WORKING LAMP
INDICATION LAMP
SCREW TYPE CONVEYOR*2 (TABLE SIDE)
STEEL BELT TYPE CHIP CONVEYOR AND CHIP CART
OIL SKIMMER
COOLANT FLUSHING SYSTEM (WASH DOWN SYSTEM)
ELECTRIC CABINET AIR CONDITIONER
CLEANING WATER GUN & AIR GUN
LEVELING BLOCKS AND BOLTS
