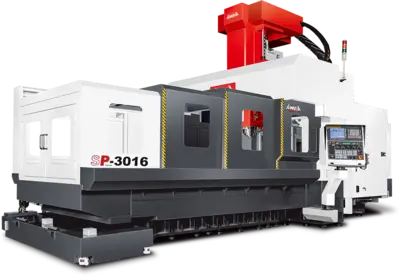

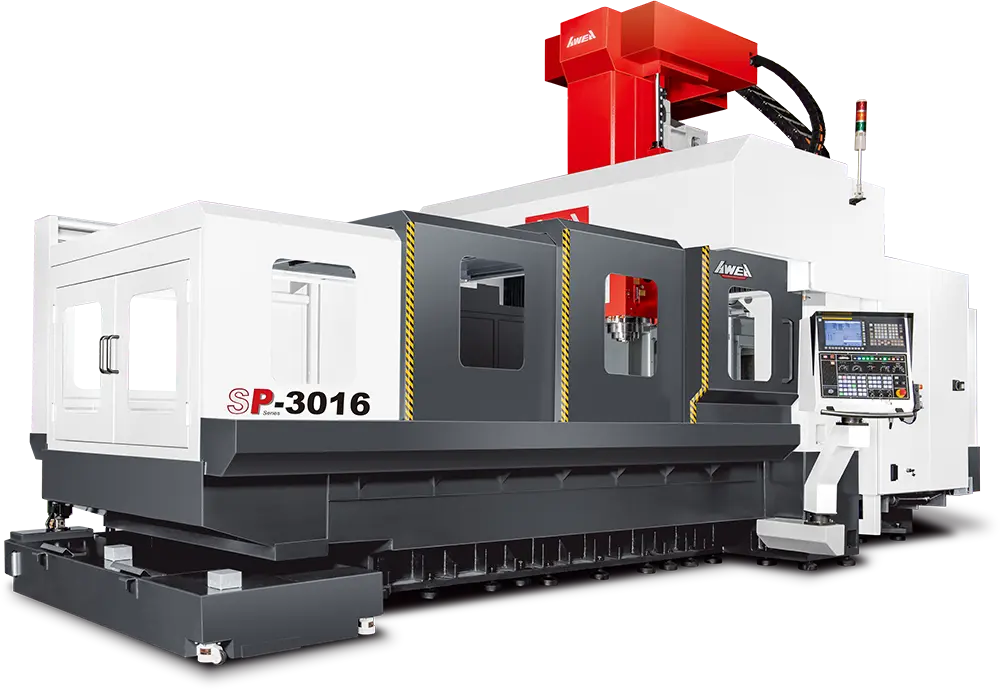

AWEA SP-3016HSS BRIDGE TYPE VERTICAL MACHINING CENTER
ConditionNew
New
Representing AWEA’s “The royal family of bridge machines” of mature manufacturing abilities and advanced technology skills, the SP series bridge-type vertical machining centers combine strong spindle power and high rigidity structure along with high-quality automation equipment and a full product line to provide you with high efficiency, high productivity machining strategies; it can be broadly applied in the automotive, precision mold, aerospace and energy industries.
Key Highlights:
• The modular spindle design provides cutting flexibility for various working conditions.
• High-rigidity roller-type linear guideways on the X, and Y axes offer heavy-duty cutting, fast movement, and low abrasion capabilities.
• The Z-axis is adopted with a high rigidity box way which is hardened and precisely ground suitable for heavy-duty cutting conditions.
FANUC 0I-MF-PLUS CONTROL WITH 15’’ LCD SCREEN
FANUC AICCII (400 BLOCK LOOK AHEAD) + 2GB DATA SERVER
15,000 RPM DIRECT DRIVEN SPINDLE, CAT40 BIG PLUS
18.5/22 KW SPINDLE MOTOR
60 TOOLS ATC MAGAZINE
SPINDLE THERMAL COMPENSATION
POLARJET PJ-30MT 70 BAR COOLANT THROUGH SPINDLE SYSTEM
AIR THROUGH SPINDLE
LINEAR SCALES XYZ
ROOF ENCLOSURE
CATERPILLAR TYPE CHIP CONVEYOR
OIL SKIMMER
SPINDLE COOLING SYSTEM
CENTRALIZED AUTOMATIC LUBRICATING SYSTEM
EXTENSION OPERATOR DOOR
COOLANT SYSTEM WITH PUMP AND TANK
COIL TYPE CHIP AUGERS
CATERPILLAR TYPE CHIP CONVEYOR
FOUNDATION BOLT KIT
TOOLBOX
ALARM LIGHT
WATER GUN
MPG MANUAL PULSE GENERATOR
DOOR INTERLOCK
AUTOMATIC POWER-OFF SYSTEM
Representing AWEA’s “The royal family of bridge machines” of mature manufacturing abilities and advanced technology skills, the SP series bridge-type vertical machining centers combine strong spindle power and high rigidity structure along with high-quality automation equipment and a full product line to provide you with high efficiency, high productivity machining strategies; it can be broadly applied in the automotive, precision mold, aerospace and energy industries.
Key Highlights:
• The modular spindle design provides cutting flexibility for various working conditions.
• High-rigidity roller-type linear guideways on the X, and Y axes offer heavy-duty cutting, fast movement, and low abrasion capabilities.
• The Z-axis is adopted with a high rigidity box way which is hardened and precisely ground suitable for heavy-duty cutting conditions.
Metric
| X-Axis Travel | 120.47" |
| Y-Axis Travel | 62.992" |
| Z-Axis Travel | 29.921" |
| Distance Between Column | 66.929" |
| Spindle Nose to Table Top | 37.795" |
| Table Size-X | 128.35" |
| Table Size-Y | 59.055" |
| Table Load Capacity | 22,046.2 lb |
| Standard Spindle Taper | CAT40 |
| Standard Spindle Speed | 15,000 RPM |
| ATC | 60 |
| Max Tool Dia with Adjacent | 4.9213" |
| Max Tool Dia without Adjacent | 8.4646" |
| Max Tool Length | 15.748" |
| Max Tool Weight | 44.1 lb |
| CN Control | Fanuc 0iMF-Plus |
FANUC 0I-MF-PLUS CONTROL WITH 15’’ LCD SCREEN
FANUC AICCII (400 BLOCK LOOK AHEAD) + 2GB DATA SERVER
15,000 RPM DIRECT DRIVEN SPINDLE, CAT40 BIG PLUS
18.5/22 KW SPINDLE MOTOR
60 TOOLS ATC MAGAZINE
SPINDLE THERMAL COMPENSATION
POLARJET PJ-30MT 70 BAR COOLANT THROUGH SPINDLE SYSTEM
AIR THROUGH SPINDLE
LINEAR SCALES XYZ
ROOF ENCLOSURE
CATERPILLAR TYPE CHIP CONVEYOR
OIL SKIMMER
SPINDLE COOLING SYSTEM
CENTRALIZED AUTOMATIC LUBRICATING SYSTEM
EXTENSION OPERATOR DOOR
COOLANT SYSTEM WITH PUMP AND TANK
COIL TYPE CHIP AUGERS
CATERPILLAR TYPE CHIP CONVEYOR
FOUNDATION BOLT KIT
TOOLBOX
ALARM LIGHT
WATER GUN
MPG MANUAL PULSE GENERATOR
DOOR INTERLOCK
AUTOMATIC POWER-OFF SYSTEM
