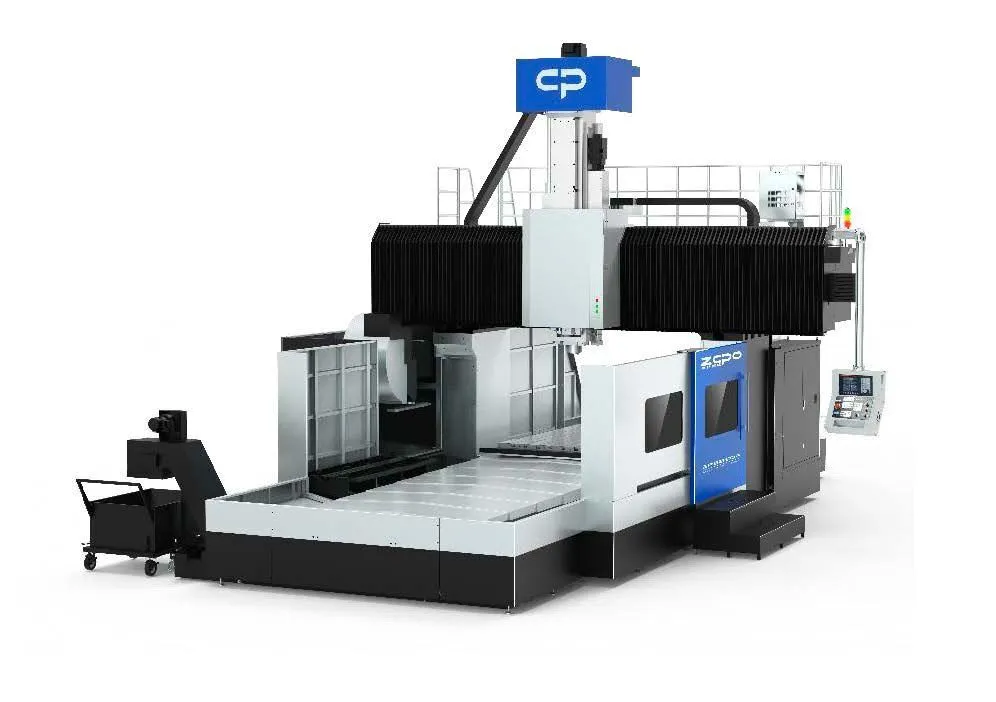

ZOPO SP2280F BRIDGE TYPE (DOUBLE COLUMN) VERTICAL MACHINING CENTER

Description

The ZOPO SP2280F Double Column Machining Center is a large-capacity, heavy-duty CNC machining center engineered for high-precision machining of large and heavy components. Its rigid double-column structure, oversized work envelope, and high-load worktable make it well suited for applications requiring stability, accuracy, and powerful cutting performance.

The SP2280F provides an expansive 8200 × 2250 × 1250 mm (X/Y/Z) travel with a 2000 × 8000 mm worktable capable of supporting loads up to 25,000 kg. A 2400 mm distance between columns provides generous clearance for machining large workpieces.

For heavy machining performance, the machine is equipped with a CAT50 square-ram spindle operating up to 4,000 RPM, driven by a 30/37 kW FANUC spindle motor delivering up to 374 Nm of torque. The X and Y axes utilize roller-type linear guideways for responsive movement, while the Z-axis incorporates a hardened and ground box-guideway square ram with a large contact surface to increase rigidity during demanding cutting operations.

Controlled by the FANUC 0i-MF Plus CNC system with a 15-inch display, the SP2280F also incorporates features designed to improve productivity and machining reliability. The supplied configuration includes a 120-tool CAT50 vertical/horizontal tool magazine, automatic 90-degree head with head magazine, 70-bar through-spindle coolant, three-axis linear scales, chip evacuation system, oil cooler, oil skimmer, and full enclosure.

With its combination of large machining capacity, high structural rigidity, powerful CAT50 spindle, extensive tooling capability, and FANUC CNC technology, the ZOPO SP2280F provides a versatile solution for manufacturers machining large, complex components where consistent accuracy and heavy-duty performance are required.
