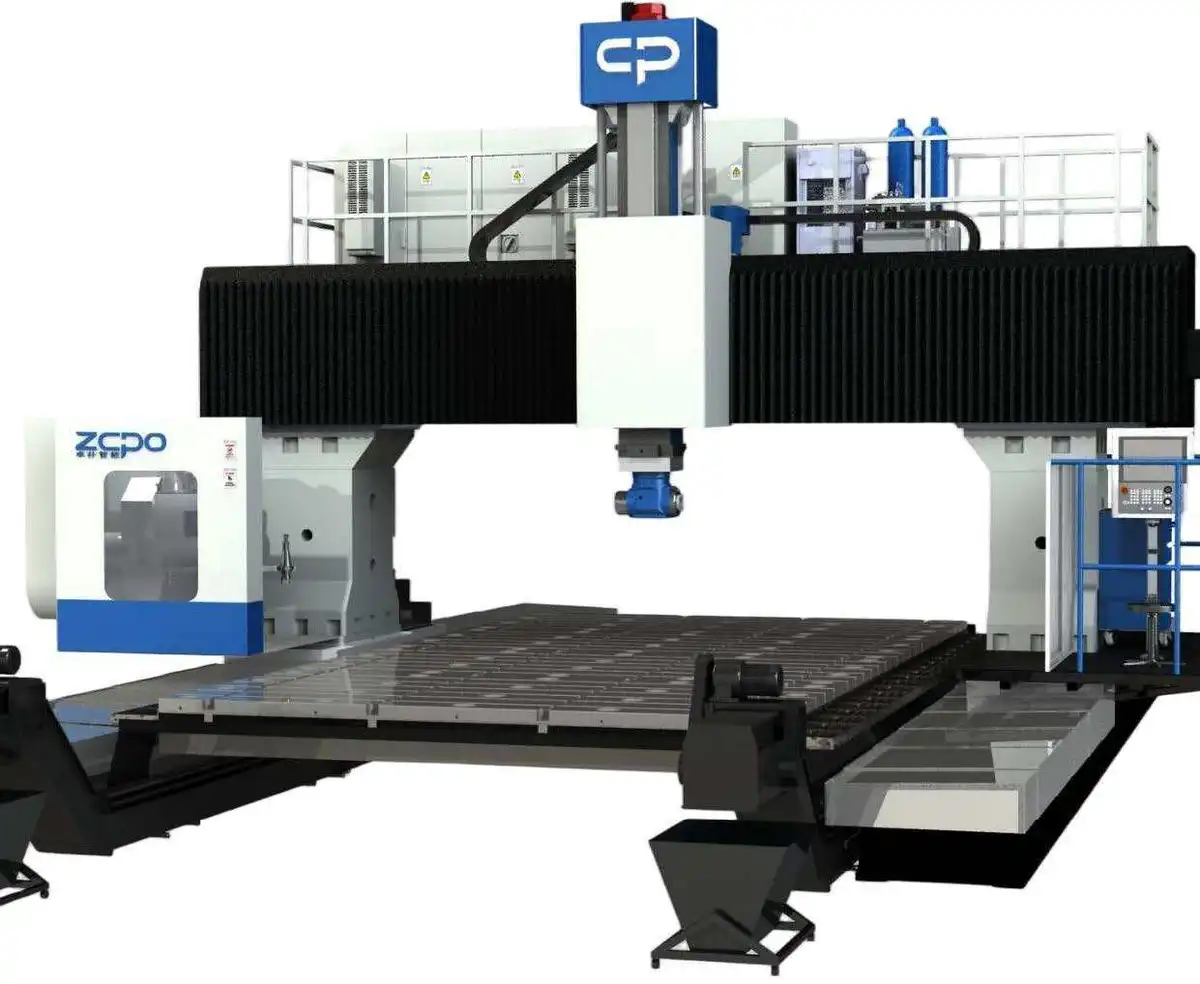

ZOPO SP3080GL-RIII ZOPO HEAVY DUTY LARGE CNC GANTRY
ConditionNew
New
The ZOPO SP3080WGL-RIII Double Column Moving Beam Machining Center is a high-performance heavy-duty machining solution engineered for large-part precision machining across aerospace, energy, mold & die, construction equipment, automotive, and general manufacturing industries. Designed with a rigid double-column moving beam structure and optimized through CAE and FEM analysis, the SP3080WGL-RIII delivers exceptional stability, cutting performance, and long-term machining accuracy for demanding large-format applications. Equipped with a FANUC 0i-MF Plus control system, BT50 spindle interface, and a powerful 30/37 kW spindle capable of up to 4,000 RPM, this machine is built to handle aggressive material removal while maintaining superior surface finish and dimensional precision.
Featuring an oversized 3000 mm x 8000 mm worktable, 8,200 mm X-axis travel, 4,800 mm Y-axis travel, and 1,500 mm travel on both the Z and W axes, the SP3080WGL-RIII provides outstanding flexibility for machining large and complex workpieces in a single setup. The machine utilizes high-quality imported components from leading global manufacturers including FANUC, SCHNEEBERGER, KORTA/SHUTON, ALPHA, and FAG/INA/NSK to ensure high reliability, accuracy, and machine longevity in continuous production environments.
The SP3080WGL-RIII is also designed for advanced productivity and automation, offering through-spindle coolant capability, high-capacity tool magazine options, automatic milling head configurations, linear scale options, and customizable machining solutions to meet diverse production requirements. With decades of machine tool manufacturing expertise and global installations across Europe, Asia, the Americas, and the Middle East, ZOPO continues to provide reliable CNC machining solutions for manufacturers seeking high rigidity, precision, and productivity in large-scale machining applications.
SP3080GL-RIII WITH FANUC 0I MF PLUS 1A+ 15’LCD
DATA SERVER+ 400 BLOCKS LOOK AHEAD+ ETHERNET
MAX LOAD BEARING OF WORKTABLE: 10 T/m2
T-SLOT SIZE: 36 MM
SPINDLE FRONT BEARING INNER DIAMETER: Φ100
CAT50 DIRECT GEAR BOX 4.000RPM
CAT50-90T CHAIN TYPE TOOL MAGAZINE
CTS 30BAR
30/37KW
X/Y AXIS ROLLER TYPE LINEAR GUIDEWAY,
Z AXIS BOX GUIDEWAY 460*460 SQUARE RAM
WATER GUN + AIR GUN
M30 POWER OFF, TRANSFORMER
CHAIN TYPE CHIP CONVEYOR*2
OIL SKIMMER
POWER TRANSFORMER
ONE SPARE SPINDLE LEFT ON CONSIGNMENT AT CUSTOMER’S SHOP OR AT MEGATEL USA-GREENVILLE – MICHIGAN
AUTOMATIC PROGRAMMABLE UNIVERSAL HEAD, 2.5 DEG, WITH LOADING STATION
The ZOPO SP3080WGL-RIII Double Column Moving Beam Machining Center is a high-performance heavy-duty machining solution engineered for large-part precision machining across aerospace, energy, mold & die, construction equipment, automotive, and general manufacturing industries. Designed with a rigid double-column moving beam structure and optimized through CAE and FEM analysis, the SP3080WGL-RIII delivers exceptional stability, cutting performance, and long-term machining accuracy for demanding large-format applications. Equipped with a FANUC 0i-MF Plus control system, BT50 spindle interface, and a powerful 30/37 kW spindle capable of up to 4,000 RPM, this machine is built to handle aggressive material removal while maintaining superior surface finish and dimensional precision.
Featuring an oversized 3000 mm x 8000 mm worktable, 8,200 mm X-axis travel, 4,800 mm Y-axis travel, and 1,500 mm travel on both the Z and W axes, the SP3080WGL-RIII provides outstanding flexibility for machining large and complex workpieces in a single setup. The machine utilizes high-quality imported components from leading global manufacturers including FANUC, SCHNEEBERGER, KORTA/SHUTON, ALPHA, and FAG/INA/NSK to ensure high reliability, accuracy, and machine longevity in continuous production environments.
The SP3080WGL-RIII is also designed for advanced productivity and automation, offering through-spindle coolant capability, high-capacity tool magazine options, automatic milling head configurations, linear scale options, and customizable machining solutions to meet diverse production requirements. With decades of machine tool manufacturing expertise and global installations across Europe, Asia, the Americas, and the Middle East, ZOPO continues to provide reliable CNC machining solutions for manufacturers seeking high rigidity, precision, and productivity in large-scale machining applications.
Metric
| X-Axis Travel | 8,200 mm |
| Y-Axis Travel | 4,500 mm |
| Z-Axis Travel | 1,500 mm |
| Distance Between Column | 4,300 mm |
| Table Surface to Spindle Dist. | 500-2000 mm |
| Table Size-X | 8,000 mm |
| Table Size-Y | 3,000 mm |
| Standard Spindle Taper | CAT50 |
| Standard Spindle Speed | 4,000 RPM |
| Rapid Feedrate (Traverse) | 16/16/12 m/min |
| Max. Feed Speed | 8 m/min |
| Spindle Power (S1/S6) | 30/37 kW |
| Spindle Torque (S1/S6) | 1225/1510 Nm |
| ATC | 90 |
| CN Control | Fanuc 0i-MF Plus |
| Weight | 105T |
SP3080GL-RIII WITH FANUC 0I MF PLUS 1A+ 15’LCD
DATA SERVER+ 400 BLOCKS LOOK AHEAD+ ETHERNET
MAX LOAD BEARING OF WORKTABLE: 10 T/m2
T-SLOT SIZE: 36 MM
SPINDLE FRONT BEARING INNER DIAMETER: Φ100
CAT50 DIRECT GEAR BOX 4.000RPM
CAT50-90T CHAIN TYPE TOOL MAGAZINE
CTS 30BAR
30/37KW
X/Y AXIS ROLLER TYPE LINEAR GUIDEWAY,
Z AXIS BOX GUIDEWAY 460*460 SQUARE RAM
WATER GUN + AIR GUN
M30 POWER OFF, TRANSFORMER
CHAIN TYPE CHIP CONVEYOR*2
OIL SKIMMER
POWER TRANSFORMER
ONE SPARE SPINDLE LEFT ON CONSIGNMENT AT CUSTOMER’S SHOP OR AT MEGATEL USA-GREENVILLE – MICHIGAN
AUTOMATIC PROGRAMMABLE UNIVERSAL HEAD, 2.5 DEG, WITH LOADING STATION
