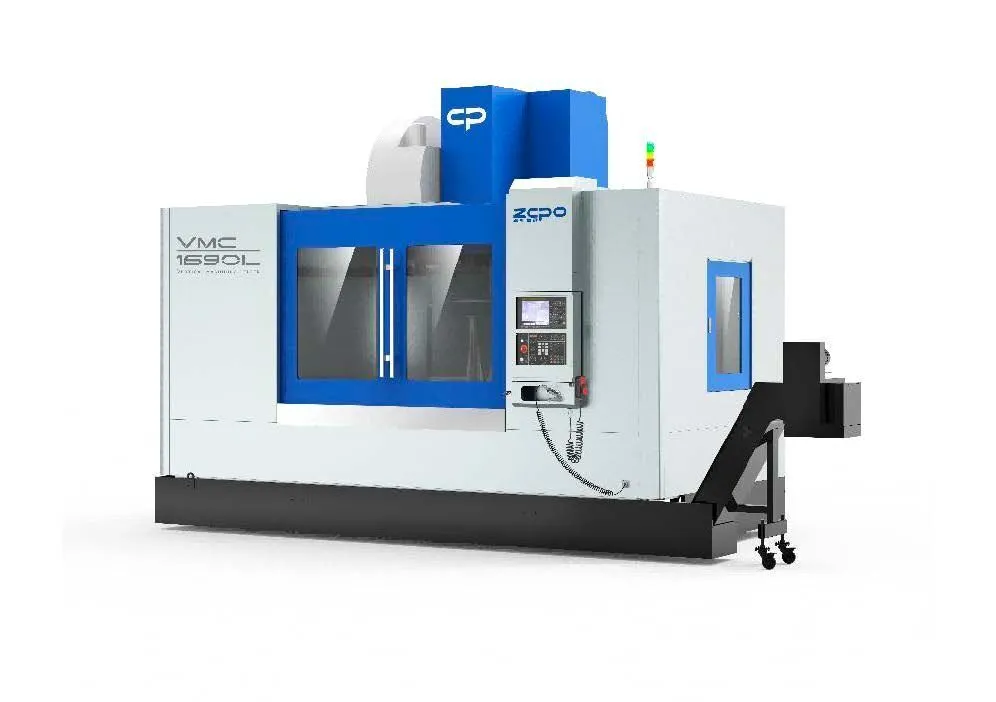

ZOPO VMC-1690L VERTICAL MILLING CENTER
ConditionNew
New
The ZOPO V11B Vertical Machining Center is a high-performance machining solution designed for manufacturers requiring precision, reliability, and productivity across a wide range of applications. Built with a rigid machine structure, high-speed direct-drive spindle technology, and premium linear guideways, the V11B delivers excellent cutting performance for aerospace, automotive, medical, mold & die, energy, and general machining industries.
Featuring generous X, Y, and Z travels combined with a large worktable capacity, the V11B is capable of handling a wide variety of workpieces while maintaining exceptional accuracy and surface finish. Its robust machine construction, roller-type linear guideways, and precision spindle assembly provide the stability needed for demanding machining operations ranging from roughing to high-precision finishing.
The machine is equipped with a high-speed CAT40 direct-drive spindle, a high-capacity automatic tool changer, and a modern CNC control system to maximize productivity while reducing setup and cycle times. Designed for long-term reliability and ease of operation, the V11B offers an ideal balance of performance, accuracy, and value for modern manufacturing environments.
FANUC 0I-MF WITH 15’ LCD SCREEN
FANUC AICCII (400 BLOCK LOOK AHEAD)
10, 000 RPM DIRECT TYPE SPINDLE, 15/18.5 KW, CAT50
40T ARM TYPE TOOL MAGAZINE
70 BAR COOLANT THROUGH SPINDLE SYSTEM
4TH AXIS PREPARATION
RENISHAW RMP60 + OTS WIRELESS PROBE
X/Y ROLLER TYPE LINEAR GUIDEWAY
Z BOX GUIDEWAY
Z-AXIS COUNTER BALANCE SYSTEM
AIR GUN
WATER GUN
HEAT EXCHANGER
1* CHAIN TYPE CHIP CONVEYOR FRONT SIDE
4* SCREW TYPE CHIP CONVEYOR
OIL SKIMMER
FRONT DOOR SAFETY DOOR
The ZOPO V11B Vertical Machining Center is a high-performance machining solution designed for manufacturers requiring precision, reliability, and productivity across a wide range of applications. Built with a rigid machine structure, high-speed direct-drive spindle technology, and premium linear guideways, the V11B delivers excellent cutting performance for aerospace, automotive, medical, mold & die, energy, and general machining industries.
Featuring generous X, Y, and Z travels combined with a large worktable capacity, the V11B is capable of handling a wide variety of workpieces while maintaining exceptional accuracy and surface finish. Its robust machine construction, roller-type linear guideways, and precision spindle assembly provide the stability needed for demanding machining operations ranging from roughing to high-precision finishing.
The machine is equipped with a high-speed CAT40 direct-drive spindle, a high-capacity automatic tool changer, and a modern CNC control system to maximize productivity while reducing setup and cycle times. Designed for long-term reliability and ease of operation, the V11B offers an ideal balance of performance, accuracy, and value for modern manufacturing environments.
Metric
| X-Axis Travel | 64.961" |
| Y-Axis Travel | 35.433" |
| Z-Axis Travel | 35.433" |
| Table Size-X | 66.929" |
| Table Size-Y | 33.465" |
| Table Load Capacity | 3,527.4 lb |
| Spindle Center to Column | 36.811" |
| Spindle Nose to Table Center | 95-995 mm |
| Spindle Speed | 10,000 RPM |
| Spindle Taper | CAT50 |
| X/Y Axis Rapid Feed Rate | 944.9 in/min. |
| Z-Axis Rapid Feed Rate | 590.6 in/min. |
| Cutting Feed Rate | 393.7 in/min. |
| ATC | 40 |
| Max. Tool Length | 11.811" |
| Max. Tool Weight | 17.6 lb |
| CN Control | FANUC 0i-MF |
FANUC 0I-MF WITH 15’ LCD SCREEN
FANUC AICCII (400 BLOCK LOOK AHEAD)
10, 000 RPM DIRECT TYPE SPINDLE, 15/18.5 KW, CAT50
40T ARM TYPE TOOL MAGAZINE
70 BAR COOLANT THROUGH SPINDLE SYSTEM
4TH AXIS PREPARATION
RENISHAW RMP60 + OTS WIRELESS PROBE
X/Y ROLLER TYPE LINEAR GUIDEWAY
Z BOX GUIDEWAY
Z-AXIS COUNTER BALANCE SYSTEM
AIR GUN
WATER GUN
HEAT EXCHANGER
1* CHAIN TYPE CHIP CONVEYOR FRONT SIDE
4* SCREW TYPE CHIP CONVEYOR
OIL SKIMMER
FRONT DOOR SAFETY DOOR
