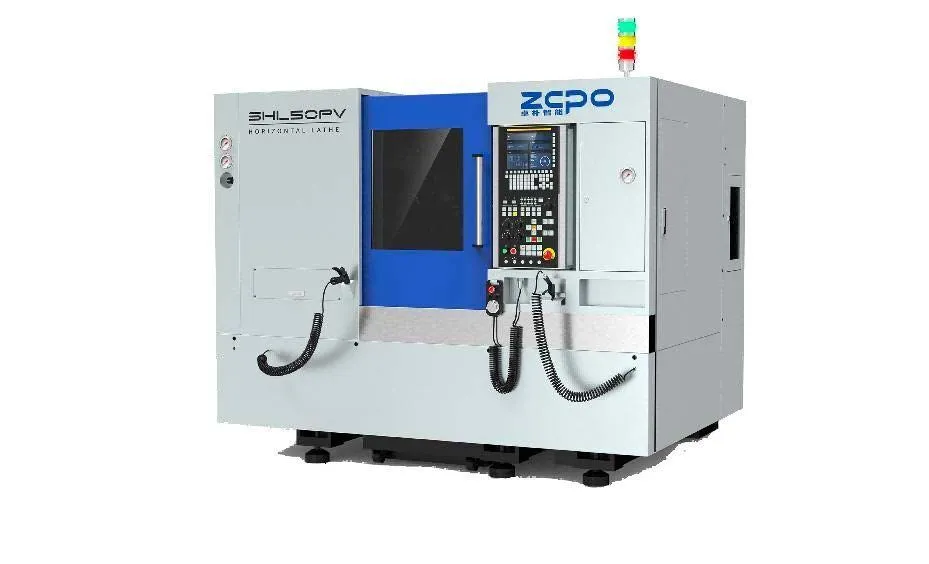

ZOPO SHL50PV HORIZONTAL LATHE WITH Y-AXIS
ConditionNew
New
The ZOPO SHL50PV CNC Horizontal Lathe is a high-performance turning solution designed for precision machining, flexibility, and efficient production of complex components. Combining powerful turning capability with Y-axis machining, live tooling, and a servo tailstock, the SHL50PV enables multiple machining operations to be completed in a single setup, helping reduce part handling and improve overall productivity.
Built on a one-piece high-rigidity bed, the SHL50PV is engineered for stability and consistent machining performance. Its dual X-axis structure provides ±50 mm Y-axis travel, while the 12-station BMT55 servo live-tool turret expands machining capability for applications requiring turning, drilling, milling, and other secondary operations.
The machine features an A2-6 spindle with speeds up to 4,500 rpm, 11/15 kW spindle power, and maximum spindle torque of 236 Nm. A servo-controlled tailstock provides additional support for shaft-type and longer workpieces.
Equipped with a FANUC 0i MF Plus CNC control, the SHL50PV provides a proven control platform for reliable and efficient operation.
FANUC 0I-TF PLUS 1AA +10.4’ LCD SCREEN
A2-6 BELT TYPE SPINDLE WITH 4500RPM
8” HYDRAULIC HOLLOW CHUCK WITH A SET SOFT JAW
12T/80MM BMT55 LIVE TURRET
2 X 90 DEGREE HOLDERS
2 X ZERO DEGREE MILLING HOLDER
HEAT EXCHANGER, AIR GUN
MANUAL GUIDE I
2 SET MASTER JAWS
2 SET SOFT JAWS
OIL SKIMMER
FRONT CHIP CONVEYOR
FRONT DOOR SAFETY INTERLOCK + SIDE DOOR TRIANGULAR LOCK
POWER TRANSFORMER
The ZOPO SHL50PV CNC Horizontal Lathe is a high-performance turning solution designed for precision machining, flexibility, and efficient production of complex components. Combining powerful turning capability with Y-axis machining, live tooling, and a servo tailstock, the SHL50PV enables multiple machining operations to be completed in a single setup, helping reduce part handling and improve overall productivity.
Built on a one-piece high-rigidity bed, the SHL50PV is engineered for stability and consistent machining performance. Its dual X-axis structure provides ±50 mm Y-axis travel, while the 12-station BMT55 servo live-tool turret expands machining capability for applications requiring turning, drilling, milling, and other secondary operations.
The machine features an A2-6 spindle with speeds up to 4,500 rpm, 11/15 kW spindle power, and maximum spindle torque of 236 Nm. A servo-controlled tailstock provides additional support for shaft-type and longer workpieces.
Equipped with a FANUC 0i MF Plus CNC control, the SHL50PV provides a proven control platform for reliable and efficient operation.
Metric
| Swing Over Bed | 550 mm |
| Standard Turning Dia | 350 mm |
| Max Turning Length | 710 mm |
| Swing Over Carriage | 350 mm |
| Chuck Size | 203.2 mm |
| Hole Through Spindle | 65 mm |
| Spindle Nose | A2-6 |
| Spindle Speed | 4,500 RPM |
| Spindle Motor | 11/15 kW |
| Spindle Torque (High) | 248 Nm |
| X-Axis Travel | 200 mm |
| Z-Axis Travel | 760 mm |
| Y-Axis Travel (±) | 50 mm |
| Tailstock Taper | MT5 |
| Tool Capacity | 12 |
| OD Tool Shank Size | 25x25 mm |
| Boring Tool Holder Dia. | 40 |
| CN Control | Fanuc 0i-TF Plus |
FANUC 0I-TF PLUS 1AA +10.4’ LCD SCREEN
A2-6 BELT TYPE SPINDLE WITH 4500RPM
8” HYDRAULIC HOLLOW CHUCK WITH A SET SOFT JAW
12T/80MM BMT55 LIVE TURRET
2 X 90 DEGREE HOLDERS
2 X ZERO DEGREE MILLING HOLDER
HEAT EXCHANGER, AIR GUN
MANUAL GUIDE I
2 SET MASTER JAWS
2 SET SOFT JAWS
OIL SKIMMER
FRONT CHIP CONVEYOR
FRONT DOOR SAFETY INTERLOCK + SIDE DOOR TRIANGULAR LOCK
POWER TRANSFORMER
