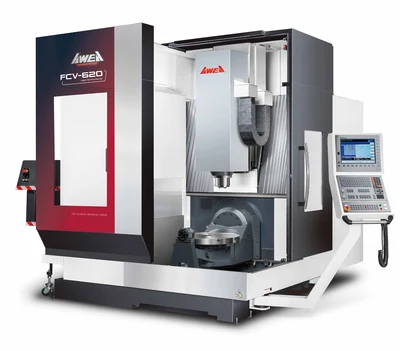

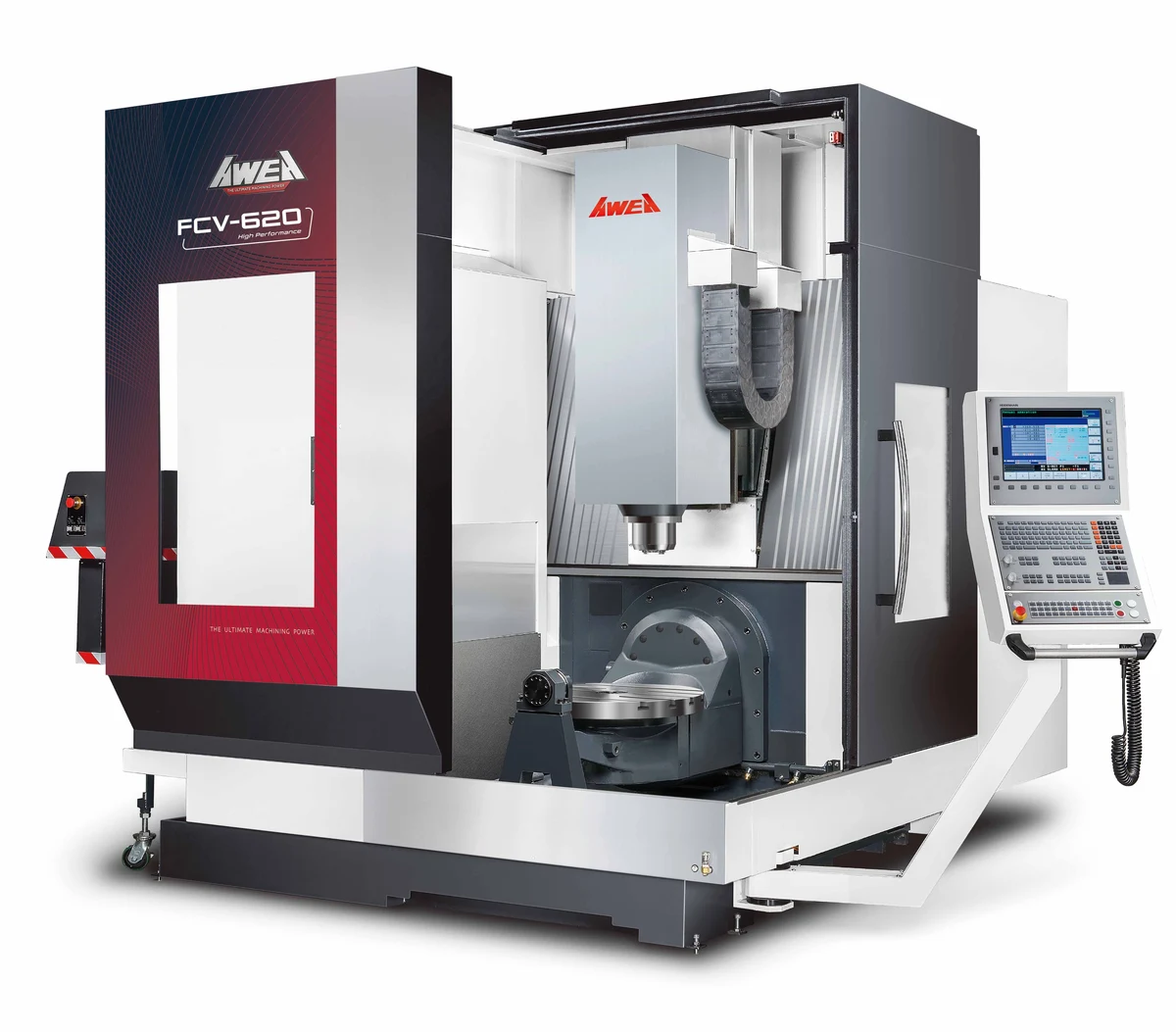

The AWEA FCV-620 5-Axis Machining Center is a high-performance vertical CNC solution designed for manufacturers demanding precision, speed, and flexibility. Engineered with a compact footprint and a heavy-duty cast iron base, this machine is ideal for complex part production across industries such as aerospace, automotive, and medical manufacturing. Its advanced B/C rotary tilting table enables full 5-axis simultaneous machining, allowing operators to complete multi-face operations in a single setup—reducing cycle times while increasing accuracy.
The FCV-620 supports spindle options of up to 20,000 rpm with either HSK-A63 or BBT40 taper, offering optimal cutting performance for both light finishing and heavy-duty machining applications. A rapid traverse speed of 36 m/min, oversized linear guideways, and a spindle power of up to 15 kW ensure smooth, high-speed operation with excellent surface quality and rigidity. The machine includes a 32-tool magazine standard, expandable to 40 or 60 tools to support continuous production. Whether you're machining titanium, aluminum, or stainless steel, the AWEA FCV-620 delivers world-class performance and reliability. Available through MEGATEL CNC, your trusted CNC machinery supplier in Canada and the USA, with local service, expert support, and financing options available.
Key Features:
• High-Performance Rotary Table: Swift B/C axis rotation provides highly efficient positioning, with a B-axis range of -50° to +110° for versatile tooling space.
• Dynamic Feed Rates: Rapid feed rates of 36 m/min for X/Y/Z axes and 25 rpm for B/C axes enhance productivity by reducing non-cutting time.
• Efficient Chip Removal: Equipped with spindle coolant nozzles, chip wash-down systems, and a 310L coolant tank for thorough chip management.
• Rigid Structure: Constructed with high-damping, one-piece Meehanite casting for minimized vibration, optimal rigidity, and consistent high-accuracy machining.
HEIDENHAIN TNC7 WITH 24" LCD, FULL 5 AXES FUNCTION
HEIDENHAIN SOFTWARE OPTIONS: 0, 1, 2, 8, 9, 40, 48
HEIDENHAIN KINEMATICSOPT
FS MODE 3 (SINGLE CIRCUITY DESIGN)
ROTARY TABLE WITH ROLLER CAM (DIA. 500 MM; LOAD CAPACITY: 300 KG)
TABLE LOAD: (0°~ 45°): 300 KG, (45°~90°): 200 KG
DISTANCE FROM SPINDLE NOSE TO TABLE CENTER: 150 - 610 MM
16,000 RPM BUILT-IN SPINDLE, SETCO, HSK-A63
60 TOOLS MAGAZINE WITH ATC ARM (SERVO MOTOR DRIVEN)
ULTRA-FAST ATC
RENISHAW NC4 AUTOMATIC TOOL LENGTH MEASUREMENT SYSTEM (LASER)
RENISHAW RMP-60 + RMI-Q WORK PIECE MEASUREMENT + STEEL BALL
LINEAR SCALE ON X, Y, Z AXES
LINEAR SCALE AIR PURGE
SPINDLE THERMAL COMPENSATION
300 PSI COOLANT THROUGH SPINDLE (1000 PSI CAPABLE)
AIR THROUGH SPINDLE
SPINDLE COOLING SYSTEM
SCRAPER TYPE CHIP CONVEYOR WITH CHIP BUCKET
CHIP WASH DOWN COOLANT
OIL LUBRICANT SEPARATOR (OIL SKIMMER)
ELECTRIC CABIN COOLER
ROOF ENCLOSED SPLASH GUARD
4 ADDITIONAL FREE M CODES
The AWEA FCV-620 5-Axis Machining Center is a high-performance vertical CNC solution designed for manufacturers demanding precision, speed, and flexibility. Engineered with a compact footprint and a heavy-duty cast iron base, this machine is ideal for complex part production across industries such as aerospace, automotive, and medical manufacturing. Its advanced B/C rotary tilting table enables full 5-axis simultaneous machining, allowing operators to complete multi-face operations in a single setup—reducing cycle times while increasing accuracy.
The FCV-620 supports spindle options of up to 20,000 rpm with either HSK-A63 or BBT40 taper, offering optimal cutting performance for both light finishing and heavy-duty machining applications. A rapid traverse speed of 36 m/min, oversized linear guideways, and a spindle power of up to 15 kW ensure smooth, high-speed operation with excellent surface quality and rigidity. The machine includes a 32-tool magazine standard, expandable to 40 or 60 tools to support continuous production. Whether you're machining titanium, aluminum, or stainless steel, the AWEA FCV-620 delivers world-class performance and reliability. Available through MEGATEL CNC, your trusted CNC machinery supplier in Canada and the USA, with local service, expert support, and financing options available.
Key Features:
• High-Performance Rotary Table: Swift B/C axis rotation provides highly efficient positioning, with a B-axis range of -50° to +110° for versatile tooling space.
• Dynamic Feed Rates: Rapid feed rates of 36 m/min for X/Y/Z axes and 25 rpm for B/C axes enhance productivity by reducing non-cutting time.
• Efficient Chip Removal: Equipped with spindle coolant nozzles, chip wash-down systems, and a 310L coolant tank for thorough chip management.
• Rigid Structure: Constructed with high-damping, one-piece Meehanite casting for minimized vibration, optimal rigidity, and consistent high-accuracy machining.
Metric
| X-Axis Travel | 635 mm |
| Y-Axis Travel | 535 mm |
| Z-Axis Travel | 460 mm |
| Table Diameter | 500 mm |
| Table Load Capacity | 300 kg |
| Spindle Taper | HSK-A63 |
| Spindle Speed | 16,000 RPM |
| X/Y/Z Feed Rate | 36 m/min. |
| Cutting Feed rate | 10 m/min. |
| ATC | 60 |
| Max Tool Length | 250 mm |
| Max Tool Weight | 6 kg |
| Max Tool Dia. | 75 mm |
| Max Tool Dia. (Pocket Empty) | 127 mm |
| B-Axis Swivel Angle | -50°~ +110° |
| C-axis Rotation | 360° |
| CN Control | HEIDENHAIN TNC7 |
HEIDENHAIN TNC7 WITH 24" LCD, FULL 5 AXES FUNCTION
HEIDENHAIN SOFTWARE OPTIONS: 0, 1, 2, 8, 9, 40, 48
HEIDENHAIN KINEMATICSOPT
FS MODE 3 (SINGLE CIRCUITY DESIGN)
ROTARY TABLE WITH ROLLER CAM (DIA. 500 MM; LOAD CAPACITY: 300 KG)
TABLE LOAD: (0°~ 45°): 300 KG, (45°~90°): 200 KG
DISTANCE FROM SPINDLE NOSE TO TABLE CENTER: 150 - 610 MM
16,000 RPM BUILT-IN SPINDLE, SETCO, HSK-A63
60 TOOLS MAGAZINE WITH ATC ARM (SERVO MOTOR DRIVEN)
ULTRA-FAST ATC
RENISHAW NC4 AUTOMATIC TOOL LENGTH MEASUREMENT SYSTEM (LASER)
RENISHAW RMP-60 + RMI-Q WORK PIECE MEASUREMENT + STEEL BALL
LINEAR SCALE ON X, Y, Z AXES
LINEAR SCALE AIR PURGE
SPINDLE THERMAL COMPENSATION
300 PSI COOLANT THROUGH SPINDLE (1000 PSI CAPABLE)
AIR THROUGH SPINDLE
SPINDLE COOLING SYSTEM
SCRAPER TYPE CHIP CONVEYOR WITH CHIP BUCKET
CHIP WASH DOWN COOLANT
OIL LUBRICANT SEPARATOR (OIL SKIMMER)
ELECTRIC CABIN COOLER
ROOF ENCLOSED SPLASH GUARD
4 ADDITIONAL FREE M CODES
