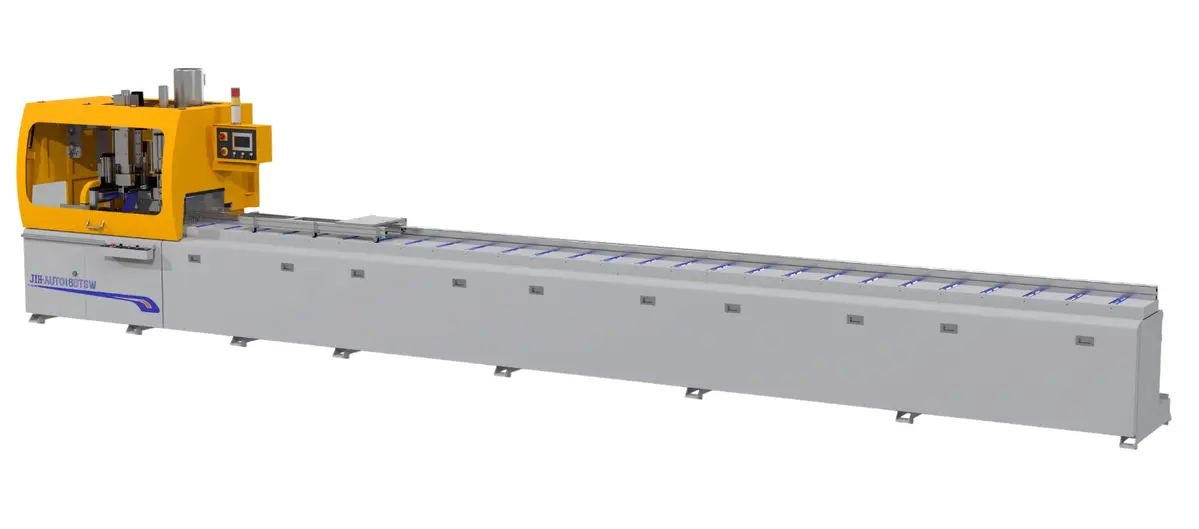

JIH - AUTO20RDS Automatic Drilling, Tapping & Sawing Machine

Description

Features:

• The machine is stronger and higher accuracy.
• When push the "saw start" button the machine performs feed material, rotary angle, clamping material and cutting automatically. The saw blade moves upward for cutting. Meanwhile do not keep the hand under the safe ground.
• The pressure is adjustable to prevent distortion materials by over force.
• The clamping and saw feeding height are adjustable according to the profile for adjustment. This helps shorten the waiting time.
• The worktable can be rotated to adjust the cutting angle.
• Miter cut from ±45° to 0° (or from 90° to 45°).
• Auto oil mist system lubricates and cools the saw blade to prolong blade life.
• Two servo motors control the puncher system and rotary table.
• NC controller provides user-friendly operation.
• Human-machine interface (HMI) touch screen for maximum operating convenience. The controller features a self-diagnostic function.
• Diagnostic information is displayed on the screen for convenient troubleshooting.
• 100 memory modules (each module can store up to 12 different cutting sizes).
• The program automatically records cutting time and cutting quantity. This information is displayed for every cutting operation, and a working report is generated, allowing process costs to be calculated more conveniently.
