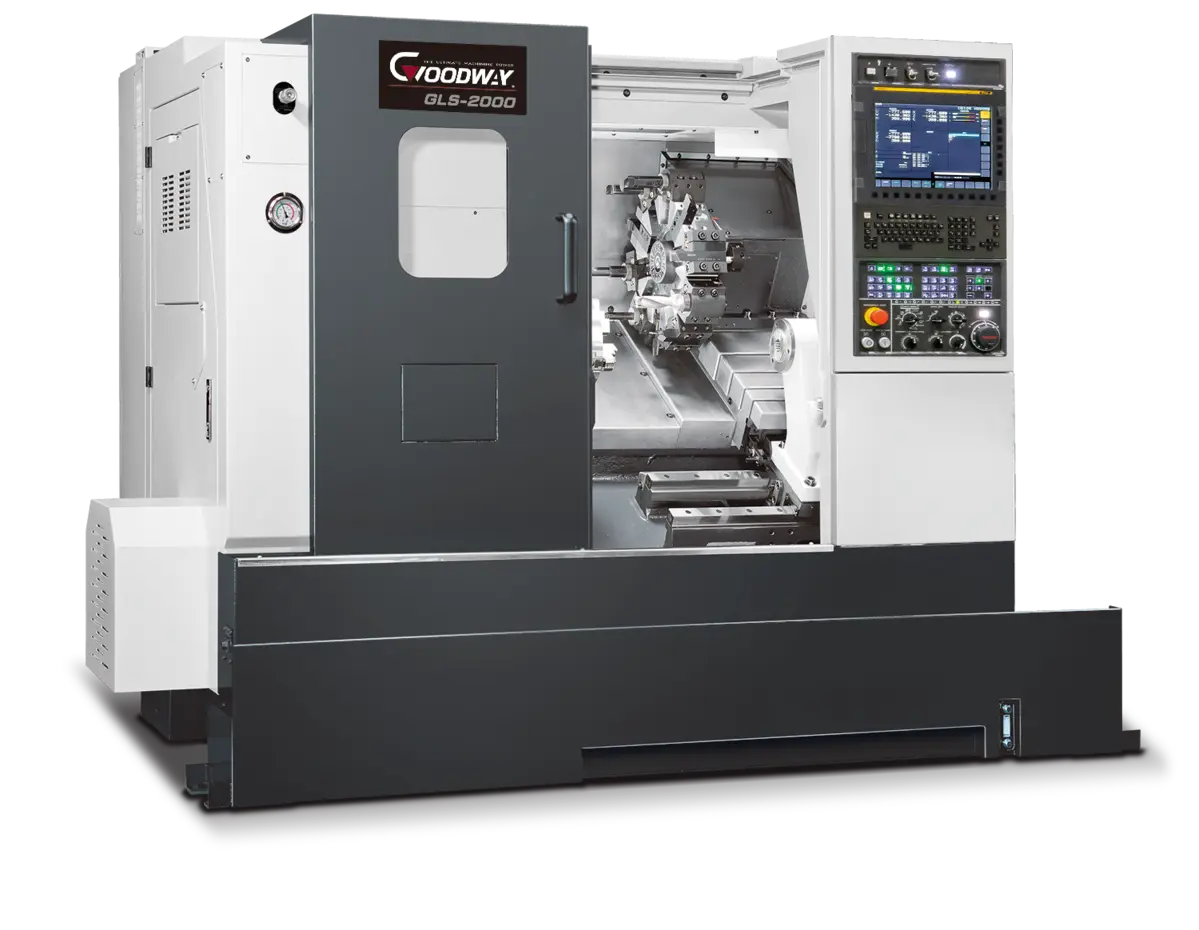

GOODWAY GLS-2000M TURNING CENTER
ConditionNew
New
With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GLS-1500 series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
• 30˚ slant-bed design provides smooth chip disposal and easier operator access.
• Steel way covers and special steel wipers molded with industrial-strength rubber are used for durability.
• Fully enclosed splash guards keep chips and coolant contained for a safe clean working environment.
The auto lubrication system delivers metered amounts of lubrication to the slideways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.
FANUC 0I-TF PLUS CONTROL WITH 10.4" COLOR LCD
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
FANUC ALPHA P22 SPINDLE MOTOR 11/15KW
RIGID TAPPING
SPINDLE ORIENTATION
GANG TOOL
TAIWAN MADE 8" HYDRAULIC CYLINDER
GOODWAY 12 STATION LIVE TOOLING TURRET (12 LIVE OF 12 STATION)
2 EACH 0° DRIVEN TOOL HOLDER (CY-DCD0) ER-25
2 EACH 90° DRIVEN TOOL HOLDER (CY-DCD0) ER-25
8" TAIWAN MADE 3 JAWS BIG BORE (66MM BAR CAPACITY) WITH 1 EACH HARD AND SOFT JAWS
HYDRAULIC TAIL STOCK L (QUILL PROGRAMMABLE, QUILL TRAVEL LENGTH 150MM) FOR LIVE CENTER MT4)
CS-AXIS WITH DISK BRAKE ON MAIN SPINDLE
AUTO RENISHAW TOOL SETTER (FOR MAIN SPINDLE) HPMA
TOOL HOLDER PACKAGE:
- 6 PCS X CLAMP PIECE (CT-3046)
- 6 PCS X CLAMP PIECE (CT-3045)
- 1 PC X FACE CUTTING TOOL HOLDER (CY-3007)
- 6 PCS X BORING BAR HOLDER (CY-3006)
- 1 PC X CUT-OFF TOOL HOLDER
- 1 PC BORING BAR SLEEVE (CY-3032A/CY-3032A/CY-3032B/CY-3032C/CF-3052D/CF-3052E) DIA. 10/12/16/8/6
- 1 PC X THROW-AWAY DRILL SOCKET (CY-3033A/CY-3033B) DIA. 20/25
- 1 PC X BORING BAR SLEEVE (CF-3053/CF-3054) MT1/MT2
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
UPGRADED CHIP CONVEYOR HEIGHT 1200MM
CHIP CART
7 BAR COOLANT PUMP
OIL SKIMMER
COOLANT PRESSURE SWITCH
COOLANT LEVEL SWITCH
BAR FEEDER INTERFACE
FULLY ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM
TRI-COLOR SIGNAL TOWER (YELLOW/RED/GREEN)
HIGH INTENSITY WORK LIGHT
M CODE AUTOMATIC POWER OFF
FOOT SWITCH FOR CHUCK
RS-232 INTERFACE
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELlING KIT/MAINTENANCE TOOL KIT
OPERATION & MAINTENANCE MANUALS
