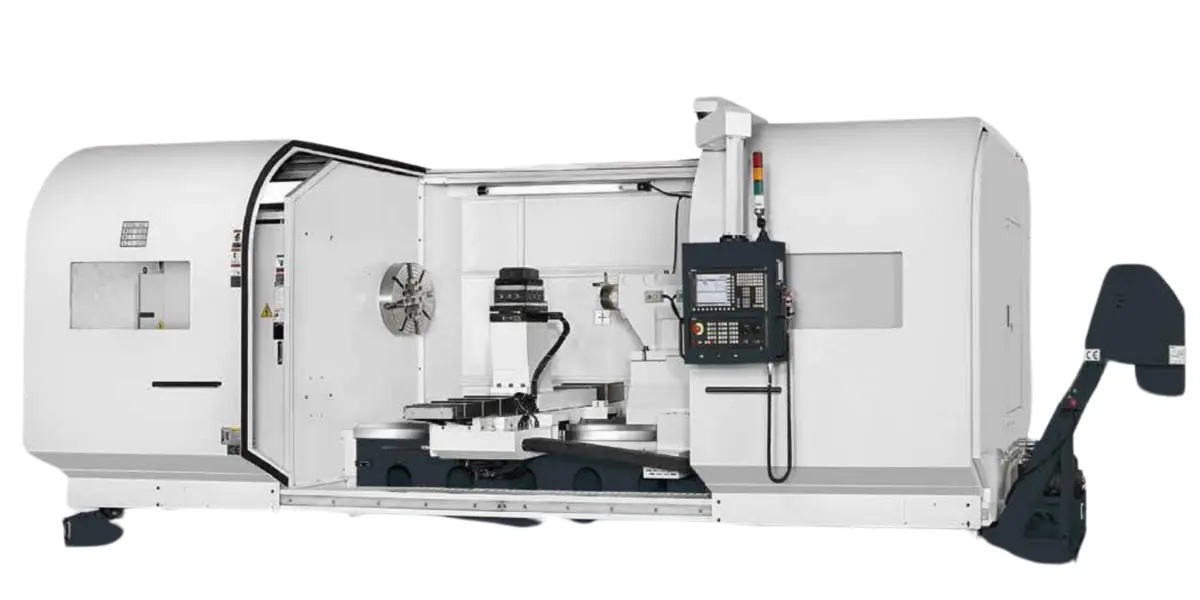

BEMATO BMT-2180AC FLAT-BED CNC TURNING CENTER
ConditionNew
New
The BEMATO BMT-2180AC is a robust flat-bed CNC turning center designed for precision machining of medium to large workpieces. Combining a rigid one-piece cast iron construction with a powerful spindle drive and user-friendly FAGOR control system, the BMT-2180AC delivers exceptional accuracy, stability, and reliability for a wide range of turning applications.
Built with a heavy-duty box-type bed and a three-point supported spindle structure, the machine provides outstanding rigidity for demanding cutting operations while maintaining excellent surface finishes. The automatic three-step spindle speed shifting system allows operators to optimize spindle performance across varying workpiece sizes and materials, ensuring efficient and consistent machining results.
Equipped with a generous 2,000 mm distance between centers, 540 mm swing over bed, and 310 mm swing over cross slide, the BMT-2180AC is ideally suited for shaft work, large cylindrical components, repair machining, and general-purpose production environments. The machine's FAGOR 8058 Elite CNC control offers intuitive operation, reliable performance, and precise motion control for improved productivity and ease of programming.
Key Features
• Heavy-duty flat-bed CNC lathe construction for maximum rigidity and stability
• Large 540 mm swing over bed capacity
• 2,000 mm distance between centers for long-part machining
• Automatic 3-step spindle speed shifting controlled by CNC
• Ø85 mm (3") spindle bore with D1-8 spindle nose
• Precision manual tailstock for enhanced support during long-part turning
• High-performance FAGOR servo drives on X and Z axes
• Fully enclosed guarding for improved operator safety and chip containment
• Integrated coolant and lubrication systems
• Ideal for job shops, maintenance facilities, general engineering, and production machining
WITH FAGOR 8058 ELITE CONTROL
MAIN MOTOR 15/22 KW
MAIN SPINDLE 3 STEP SPEED AUTO. CHANGE BY CNC CONTROL
10” 3 JAW UNIVERSAL CHUCK , D1-8 MOUNT
12” 4 JAW INDEPENDENT CHUCK , D1-8 MOUNT
H-4 ELECTRONIC TOOL POST , 25MM SHANK
STEADY REST 80-280MM
COOLANT EQUIPMENT
LUBRICATE EQUIPMENT
FULL GUARD
MANUAL TAILSTOCK
WORK LIGHT
TOOLS / TOOL BOX / CENTER SLEEVE *1PC / CENTER *2PCS
The BEMATO BMT-2180AC is a robust flat-bed CNC turning center designed for precision machining of medium to large workpieces. Combining a rigid one-piece cast iron construction with a powerful spindle drive and user-friendly FAGOR control system, the BMT-2180AC delivers exceptional accuracy, stability, and reliability for a wide range of turning applications.
Built with a heavy-duty box-type bed and a three-point supported spindle structure, the machine provides outstanding rigidity for demanding cutting operations while maintaining excellent surface finishes. The automatic three-step spindle speed shifting system allows operators to optimize spindle performance across varying workpiece sizes and materials, ensuring efficient and consistent machining results.
Equipped with a generous 2,000 mm distance between centers, 540 mm swing over bed, and 310 mm swing over cross slide, the BMT-2180AC is ideally suited for shaft work, large cylindrical components, repair machining, and general-purpose production environments. The machine's FAGOR 8058 Elite CNC control offers intuitive operation, reliable performance, and precise motion control for improved productivity and ease of programming.
Key Features
• Heavy-duty flat-bed CNC lathe construction for maximum rigidity and stability
• Large 540 mm swing over bed capacity
• 2,000 mm distance between centers for long-part machining
• Automatic 3-step spindle speed shifting controlled by CNC
• Ø85 mm (3") spindle bore with D1-8 spindle nose
• Precision manual tailstock for enhanced support during long-part turning
• High-performance FAGOR servo drives on X and Z axes
• Fully enclosed guarding for improved operator safety and chip containment
• Integrated coolant and lubrication systems
• Ideal for job shops, maintenance facilities, general engineering, and production machining
Metric
| Center Height | 10.63" |
| Swing Over Bed | 21.26" |
| Swing Over Cros Slide | 12.205" |
| Distance Between Centers | 78.74" |
| Flat Bed Width | 13.78" |
| Transverse Travel (X) | 13.78" |
| Longitudinal Travel (Z) | 72.835" |
| Spindle Bore | 3.3465" |
| Spindle Nose | D1-8 |
| Quill Dia. | 2.9528" |
| Quill Travel | 6.6929" |
| Quill Taper | MT5 |
| Spindle Motor | 10/15 HP |
| CN Control | FAGOR 8058 Elite |
WITH FAGOR 8058 ELITE CONTROL
MAIN MOTOR 15/22 KW
MAIN SPINDLE 3 STEP SPEED AUTO. CHANGE BY CNC CONTROL
10” 3 JAW UNIVERSAL CHUCK , D1-8 MOUNT
12” 4 JAW INDEPENDENT CHUCK , D1-8 MOUNT
H-4 ELECTRONIC TOOL POST , 25MM SHANK
STEADY REST 80-280MM
COOLANT EQUIPMENT
LUBRICATE EQUIPMENT
FULL GUARD
MANUAL TAILSTOCK
WORK LIGHT
TOOLS / TOOL BOX / CENTER SLEEVE *1PC / CENTER *2PCS
