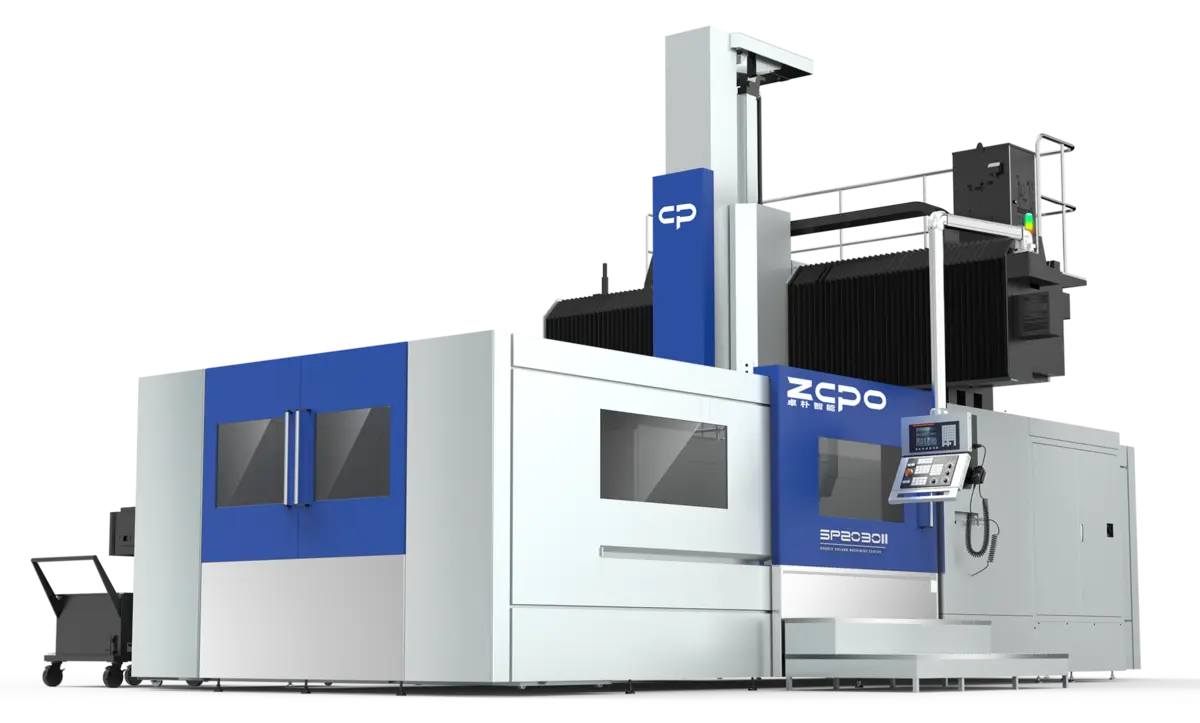

The ZOPO SP-2230 is a heavy-duty bridge-type double column vertical machining center engineered for high-precision machining of large workpieces requiring exceptional rigidity, stability, and accuracy. Designed with a robust double-column structure and optimized machine geometry, the SP-2230 is ideal for mold & die manufacturing, heavy equipment, energy, rail transportation, aerospace, and general machining applications where consistent performance and heavy cutting capability are essential. Combining advanced structural design with proven manufacturing processes, the SP-2230 delivers reliable productivity for demanding machining environments.
Built using high-strength cast iron components that undergo natural aging and vibration stress-relief treatment, the machine is designed to minimize deformation and maintain long-term machining accuracy. Finite Element Analysis (FEA) is applied throughout the machine structure to optimize rigidity, vibration dampening, and thermal stability. Large linear guideways on the X and Y axes combined with a box guideway on the Z-axis provide excellent support for heavy cutting operations while maintaining smooth machine movement and positioning accuracy.
The SP-2230 offers generous machining capacity with 3,200 mm X-axis travel, 2,250 mm Y-axis travel, and 1,000 mm Z-axis travel, supported by a large 2,000 mm × 3,000 mm worktable capable of handling workpieces up to 12,000 kg. The 2,400 mm distance between columns provides ample machining space for oversized components while maintaining excellent structural rigidity. Its heavy-duty BT50 spindle platform supports high-torque machining across a wide range of materials, including steel, cast iron, aluminum alloys, and other demanding applications.
Designed for productivity and ease of operation, the SP-2230 incorporates ergonomic machine guarding, efficient chip evacuation, thermal compensation technology, collision protection functions, and a modular platform that can accommodate a variety of spindle configurations, automatic tool changers, probing systems, and customized machining solutions. These features make the machine a versatile and reliable solution for manufacturers seeking both performance and long-term value.
MITSUBISHI M830 WITH 15” LCD SCREEN
X/Y AXIS ROLLER TYPE LINEAR GUIDEWAY, Z AXIS BOX GUIDEWAY
DISTANCE FROM TABLE SURFACE TO SPINDLE: 220-1220 MM
8,000 RPM DIRECT DRIVEN SPINDLE, CAT50
32 TOOLS ATC MAGAZINE
50 BAR COOLANT THROUGH SPINDLE SYSTEM
FULLY ENCLOSED ROOF GUARD
SAFETY DOOR
AIR BLAST OF SPINDLE
OIL CHILLER
CUTTING COOLANT SYSTEM
CUTTING AIR SYSTEM
OIL SKIMMER
COOLANT OIL TANK
AUTO LUBRICATION SYSTEM
AIR GUN
COOLANT GUN
HEAT EXCHANGER
LED WORKING LIGHT
LED WARNING LIGHT
LEVELING BOLTS& BLOCKS
TOOLS AND TOOL BOX
TELESCOPIC GUARDS FOR 3 AXIS
