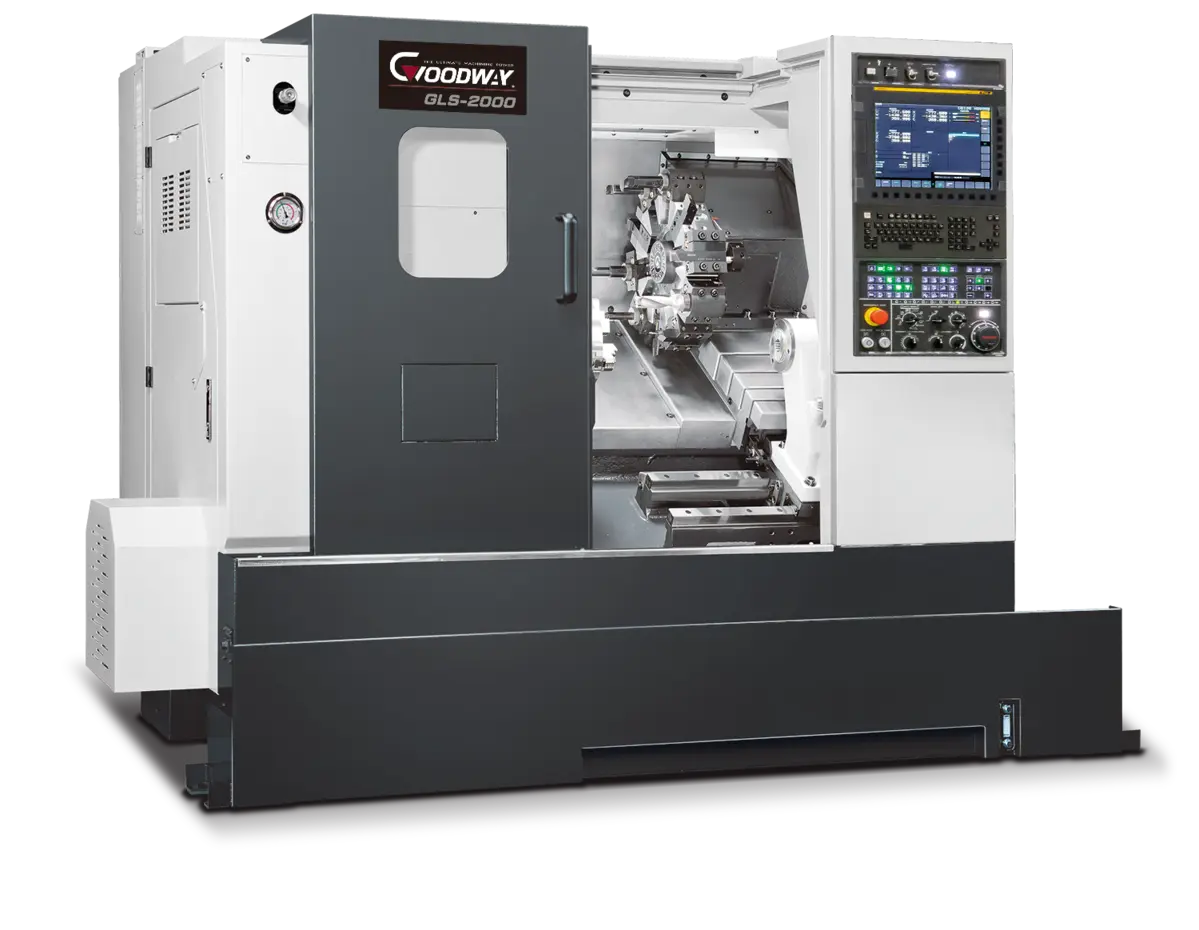

GOODWAY GLS-2000LYS HIGH SPEED CNC TURNING CENTER
ConditionNew
New
With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GLS-2000 series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
• 30˚ slant-bed design provides smooth chip disposal and easier operator access.
• Steel way covers and special steel wipers molded with industrial-strength rubber are used for durability.
• Fully enclosed splash guards keep chips and coolant contained for a safe clean working environment.
The auto lubrication system delivers metered amounts of lubrication to the slideways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.
FANUC 0I-TF PLUS CONTROL WITH 15" IHMI LCD SCREEN
FANUC ALPHA SPINDLE AND SERVO DRIVES
FANUC AC 15 HP (CONT.), 20 HP (30 MIN.), 25 HP (PEAK) DUAL WINDING SPINDLE MOTOR
X/Z AXIS FANUC AC 4.0 HP SERVO MOTOR WITH ABSOLUTE ENCODER
2-SPEED SPINDLE MOTOR CONFIGURATION
4,500 RPM DIRECT BELT DRIVEN SPINDLE
8 INCH 3-JAW THROUGH-HOLE (65 MM) BIG-BORE POWER CHUCK INCLUDING ONE SET OF SOFT JAWS
12/24 STATION LIVE TURRET WITH 1” OD AND 1-1/2” ID TOOLING SHANK
STANDARD TOOL HOLDER AND SLEEVES PACKAGE
1 X 0° LIVE TOOL HOLDERS (COLLET: ER-25)
1 X 90° LIVE TOOL HOLDERS (COLLET: ER-25)
FULL CS AXIS CONTROL ON MAIN AND SUB SPINDLE WITH DISK BRAKE
SUB SPINDLE SPEED: 6,000 RPM SINGLE SPINDLE SPEED CONFIGURATION
SUB SPINDLE CHUCK: 5” 3-JAW POWER CHUCK INCLUDING ONE SET OF SOFT JAWS
COOLANT THRU SUB SPINDLE
AIR BLOW FOR SUB SPINDLE
COOLANT PISTOL
SMART CHUCK SENSOR FOR MAIN & SUB-SPINDLE
RENISHAW HPMA TOOL SETTER FOR MAIN & SUB SPINDLE
PNEUMATIC SUB SPINDLE PARTS EJECTOR
COOLANT FLUSH FOR SUB SPINDLE SLIDE WAY COVER
Y AXIS TRAVEL 35 MM WITH FANUC AC 2.2 HP SERVO MOTOR
SPINDLE ORIENTATION - 1 DEGREE INDEXING
USER DEFINABLE MACRO
UPGRADE TO 132 PSI HIGH PRESSURE COOLANT PUMP (MTH-2/70)
UPGRADE CHIP PAN TO 47” SIDE DISCHARGE CHIP CONVEYOR
OIL SKIMMER
FULLY ENCLOSED GUARDING
DOOR INTERLOCK
HYDRAULIC PRESSURE SAFETY SWITCH
PROGRAM PROTECT
CHUCK CLAMP/UNCLAMP CONFIRMATION
THREE COLOR OPERATION STATUS SIGNAL LIGHT TOWER
TOOLBOX WITH EMERGENCY MAINTENANCE ELECTRICAL PART PACKAGE
OPERATION AND MAINTENANCE MANUALS
