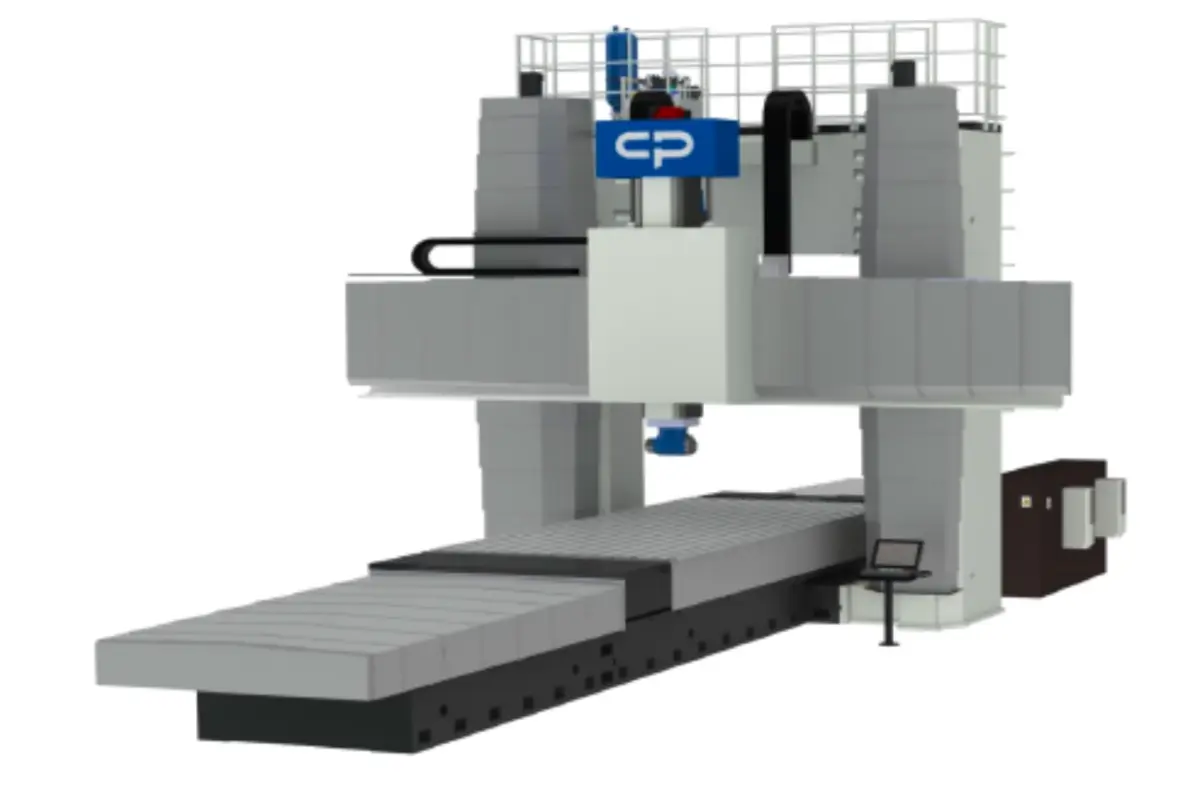

The ZOPO SP3080WGL-RIII Double Column Moving Beam Machining Center is a high-performance heavy-duty machining solution engineered for large-part precision machining across aerospace, energy, mold & die, construction equipment, automotive, and general manufacturing industries. Designed with a rigid double-column moving beam structure and optimized through CAE and FEM analysis, the SP3080WGL-RIII delivers exceptional stability, cutting performance, and long-term machining accuracy for demanding large-format applications. Equipped with a FANUC 0i-MF Plus control system, BT50 spindle interface, and a powerful 30/37 kW spindle capable of up to 4,000 RPM, this machine is built to handle aggressive material removal while maintaining superior surface finish and dimensional precision.
Featuring an oversized 3000 mm x 8000 mm worktable, 8,500 mm X-axis travel, 4,800 mm Y-axis travel, and 1,500 mm travel on both the Z and W axes, the SP3080WGL-RIII provides outstanding flexibility for machining large and complex workpieces in a single setup. The machine utilizes high-quality imported components from leading global manufacturers including FANUC, SCHNEEBERGER, KORTA/SHUTON, ALPHA, and FAG/INA/NSK to ensure high reliability, accuracy, and machine longevity in continuous production environments.
The SP3080WGL-RIII is also designed for advanced productivity and automation, offering through-spindle coolant capability, high-capacity tool magazine options, automatic milling head configurations, linear scale options, and customizable machining solutions to meet diverse production requirements. With decades of machine tool manufacturing expertise and global installations across Europe, Asia, the Americas, and the Middle East, ZOPO continues to provide reliable CNC machining solutions for manufacturers seeking high rigidity, precision, and productivity in large-scale machining applications.
FANUC 0i-MF PLUS 1A(a) WITH 10.4" LCD SCREEN
FANUC AICCII (200 BLOCKS LOOK AHEAD) +DATA SERVER
ETHERNET
UNIVERSAL PROGRAMABLE HEAD
HEAD CHANGER
3000MM OF DAYLIGHT UNDER VERTICAL SPINDLE
4,000 RPM SPINDLE, CAT50
40 TOOLS ATC MAGAZINE
70 BAR COOLANT THROUGH SPINDLE SYSTEM
X/Y AXIS ROLLER TYPE LINEAR GUIDEWAY, Z AXIS BOX GUIDEWAY
2 PCS X SCREW TYPE CHIP CONVEYOR
1 PC X CHAIN TYPE CHIP CONVEYOR
AIR BLAST OF SPINDLE
WATER COOLING
CUTTING COOLANT SYSTEM
CUTTING AIR SYSTEM
AIR CONDITIONER
LED WORKING LIGHT
LED WARNING LIGHT
OIL SKIMMER
COOLANT OIL TANK
AUTO LUBRICATION SYSTEM
LEVELING BOLTS & BLOCKS
TOOLS AND TOOL BOX
TELESCOPIC GUARDS FOR 3 AXIS
FULLY ENCLOSED SPLASH GUARD
