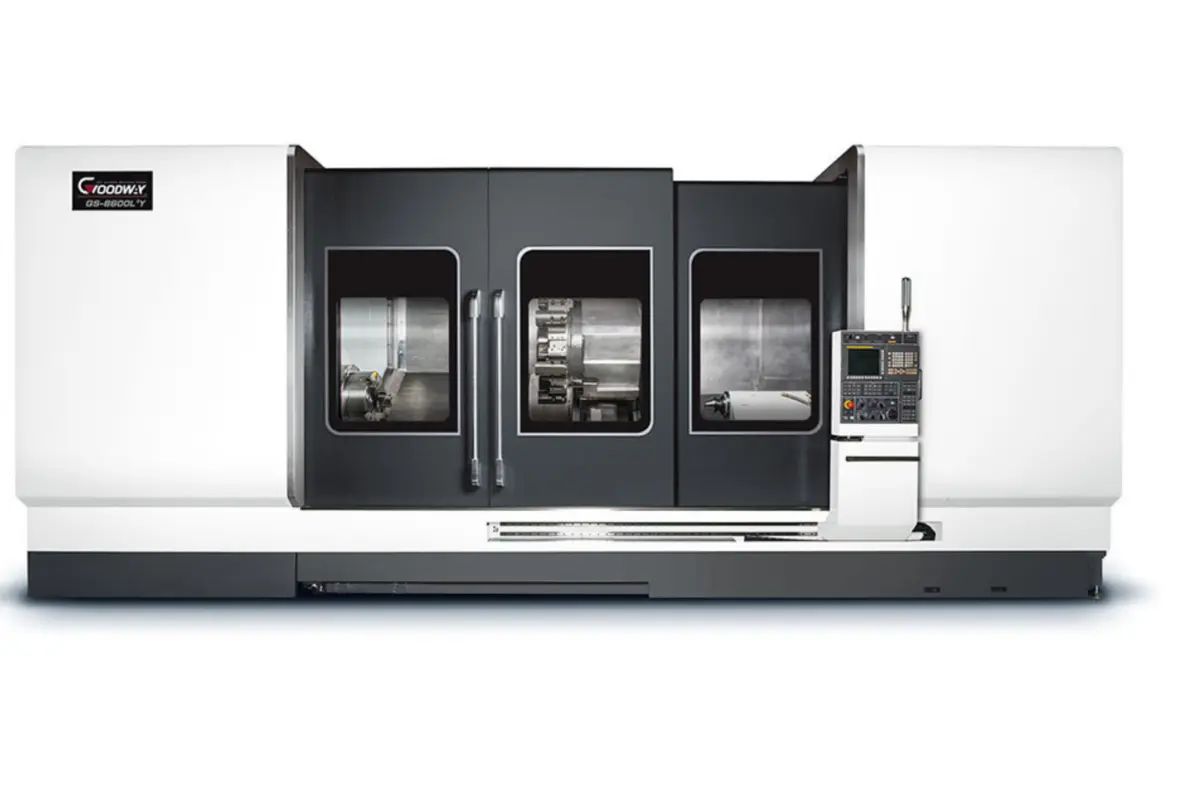

The GOODWAY GS-8000 Series Heavy Duty Supersize CNC Turning Centers are built for manufacturers requiring exceptional power, rigidity, and precision when machining large diameter and extra-long workpieces. Designed with a super-rigid Meehanite cast iron slant bed construction and hardened box guideways, the GS-8000 delivers outstanding stability and vibration damping for demanding heavy-duty cutting applications. Equipped with a powerful 3-speed geared spindle driven by FANUC spindle motors, the machine provides high torque output for aggressive material removal while maintaining excellent machining accuracy and surface finish. Optional live tooling, C-axis, and Y-axis capabilities transform the GS-8000 into a true multi-tasking turning center capable of turning, milling, drilling, tapping, and complex off-center machining in a single setup—helping reduce cycle times, improve accuracy, and increase productivity. Available in multiple bed lengths and spindle configurations, the GS-8000 Series is an ideal solution for aerospace, oil & gas, energy, shipbuilding, heavy equipment, and large component manufacturing industries where reliability, rigidity, and high-performance machining are essential.
KEY FEATURES
• Heavy-duty Meehanite cast iron slant bed construction
• Super-rigid hardened and precision-ground box ways
• Powerful 3-speed geared spindle design for high torque cutting
• FANUC spindle and servo drive systems
• Large spindle bore options for long shaft and pipe machining
• Available live tooling, C-axis, and Y-axis configurations
• Large Y-axis travel up to ±160 mm for complex machining applications
• 12-station heavy-duty servo indexing turret
• High precision CURVIC coupling turret technology
• Capable of turning, milling, drilling, tapping, and grooving in one setup
• Programmable hydraulic tailstock for heavy workpiece support
• Optional hydraulic steady rest for large diameter workpieces
• Excellent thermal stability and vibration damping for high precision machining
• Fully enclosed splash guarding for safe and clean operation
• Available in multiple bed lengths to accommodate extra-long parts
• Ideal for aerospace, energy, oil & gas, shipbuilding, and heavy industry applications
**Please see attached brochure for the complete specification of the machine
FANUC 0I-F WITH 15" LCD SCREEN INCLUDING MANUAL GUIDE-I
FANUC SPINDLE MOTOR UPGRADE TO 37/44KW
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
RIGID TAPPING / SPINDLE ORIENTATION
WIDELY SPACED BOX WAYS ON ALL AXES
12 STATION STANDARD TURRET WITH TOOL HOLDER PACKAGE
HYDRAULIC TYPE LP-1 PROGRAMMABLE TAIL STOCK (QUILL/BODY ARE PROGRAMMABLE) (LIVE CENTER MT6) QUILL DIA. 160MM, QUILL TRAVEL 150MM)
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
UPGRADED CHIP CONVEYOR HEIGHT 1200MM
CHIP CART
COOLANT GUN WITH PIPE CONTROL
OIL MIST COLLECTOR
70 BAR COOLANT PUMP INCLUDING FILTER (ALLRICH R58 HIGH PRESSURE COOLANT SYSTEM)
OIL SKIMMER
COOLANT LEVEL SWITCH
AUTO DOOR
HYDRAULIC SYSTEM
FULLY ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM FOR SLIDE WAYS AND BALL SCREWS
OIL LUBRICATION SYSTEM FOR SPINDLE BEARINGS & GEARS
TRI-COLOR LED SIGNAL TOWER(YELLOW/RED/GREEN)
HIGH INTESITY LED WORK LIGHT
M CODE AUTOMATIC POWER OFF
FOOT SWITCH FOR CHUCK
RS-232 INTERFACE
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
OPERATION & MAINTENANCE MANUALS
