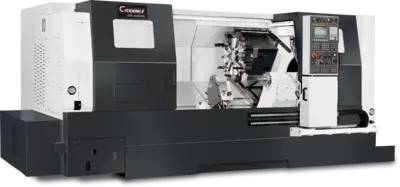

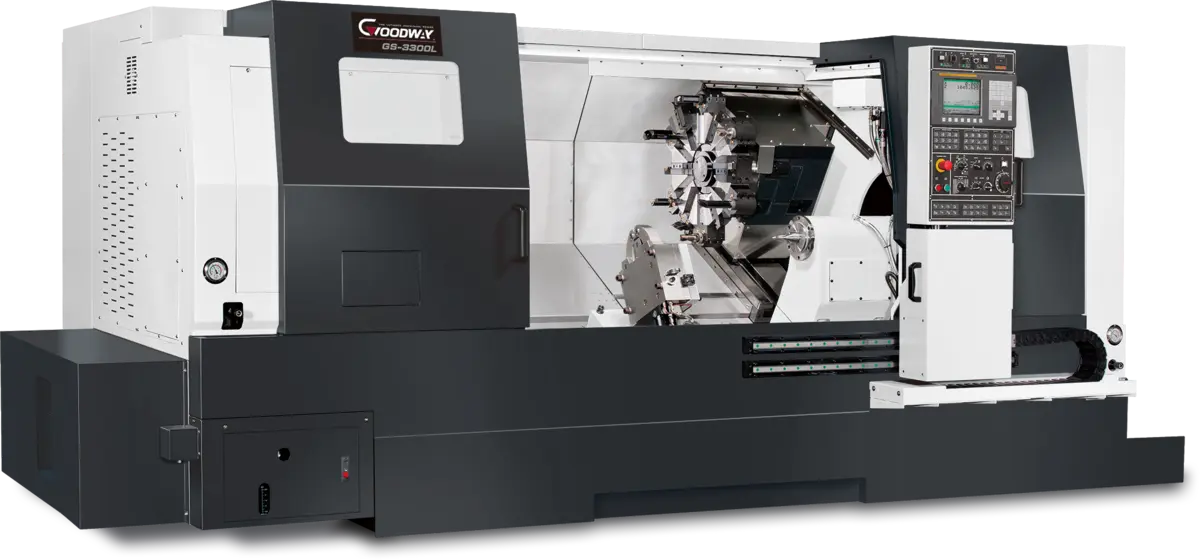

GOODWAY GS-3300LM HORIZONTAL TURNING CENTER
ConditionNew
New
With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GS Series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
* 30°low center gravity slant bed ensures high rigidity of GS-3000 series.
* X / Z axes adopt box ways structure and wide span design to ensure best rigidity and precision.
* Optional high precision built-in spindle or high power belt-driven spindle to meet any processing request.
* X / Z axes are directly driven by a high-performance AC servo motor, rapid feed rate can reach up to 30 m/min.
* 12-station servo index turret, adjacent and opposite tool changing only takes up to 0.3 and 0.8 sec.
* High-rigidity programmable tailstock or high-performance servo tailstock ensures the best support for the workpiece.
**Please see attached brochure for the complete specification of the machine.
FANUC OI-TF PLUS CONTROL 10.4" LCD SCREEN
FANUC ALPHA P40 SPINDLE MOTOR 18.55/22KW
BOX GUIDWAYS ON ALL AXES
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
12" 3 JAWS CHUCK WITH ONE SET EA. SOFT & HARD JAWS
CS-AXIS WITH DISK BRAKE ON MAIN SPINDLE
GOODWAY 12 STATION LIVE TOOLIGN TURRET (4.5KW, ER32)
- CLAMPING PIECE (CV-3045/CV-3046, 7PCS OF EACH)
- CUT OFF TOOL HOLDER (CB-4797) X 1 PC
- OD TOOL HOLDER (LF-3195) X 6 PCS
- FACING TOOL HOLDER (LF-3197) X 1 PC
- ID TOOL HOLDER (LF-3191) X 6 PCS
- DRILL SOCKET (CJ-3010/ CJ-3011) MT2/ MT3 X 1EA
- BORING BAR SLEEVE (CJ-3014A/B/C) DIA. 20/25/32 MM X 1 EA
- BORING BAR SLEEVE (CJ-3016C/D/A/B) DIA. 8/10/ 12/ 16 MM X 1EA
2 PCS X 0° LIVE TOOL HOLDER ER-32/EC QUICKFLEX
2 PCS X 90° LIVE TOOL HOLDER ER-32/EC QUICKFLEX
MANUAL STEADY REST HALF MOON TYPE (Ø 30~Ø180MM)
SERVO DRIVEN PROGRAMMABLE LIVE CENTER MT5 TAIL STOCK (LINEAR GUIDE WITH BALL SCREW)
LIVE CENTER FOR TAIL STOCK MT5
RENISHAW TOOL SETTER (FOR MAIN SPINDLE) HPRA
ALLCOOL MB500 COOLANT PUMP (35BAR/500PSI)
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
COOLANT SYSTEM WITH GRUNDFOS 3/4 HP COOLANT PUMP
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
OPERATION & MAINTENANCE MANUALS
