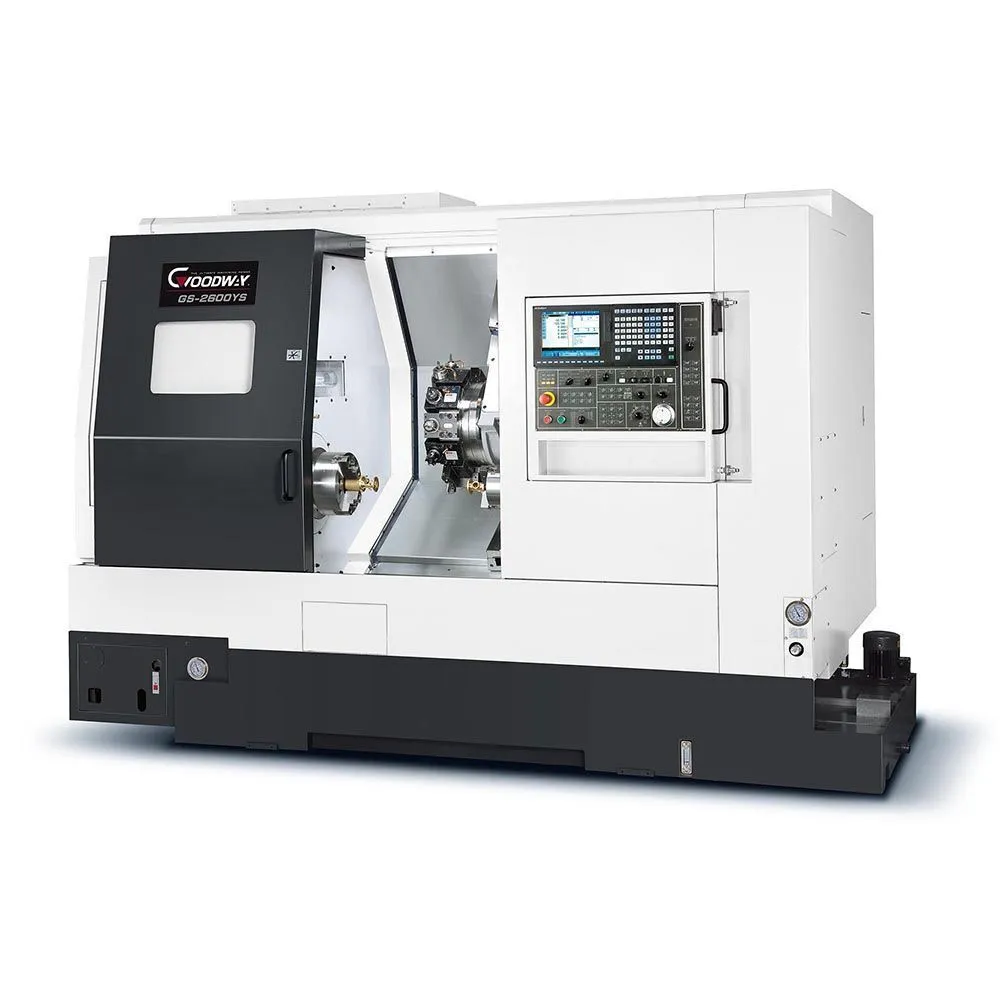

GOODWAY GS-2800LM HORIZONTAL TURNING CENTER
ConditionNew
New
With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GLS-1500 series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
✔ 30°low center gravity slant bed ensures high rigidity of GS-3000 series.
✔ X / Z axes adopt box ways structure and wide span design to ensure best rigidity and precision.
✔ Optional high precision built-in spindle or high power belt-driven spindle to meet any processing request.
✔ X / Z axes are directly driven by a high-performance AC servo motor, rapid feed rate can reach up to 30 m/min.
✔ 12-station servo index turret, adjacent and opposite tool changing only takes up to 0.3 and 0.8 sec.
✔ High-rigidity programmable tailstock or high-performance servo tailstock ensures the best support for the workpiece.
FANUC 0I-TF PLUS WITH 15" LCD SCREEN WITH IHMI
FANUC ALPHA SPINDLE AND SERVO DRIVES
SPINDLE MOTOR: FANUC AC 20HP (CONT.), 25 HP (30 MIN), 40HP (PEAK)
RIGID TAPPING
3500 DIRECT BELT DRIVEN SPINDLE, SINGLE SPINDLE SPEED CONFIGURATION
HIGH TORQUE FUNCTION
10” BIG-BORE 3-JAW THROUGH-HOLE (78MM) POWER CHUCK
ONE SET OF SOFT JAWS AND ONE SET OF HARD JAWS
X/Z SERVO MOTOR: FANUC ALPHA SERVO MOTOR 6.0 HP (CONT.)
X/Z AXES RAPID TRAVERSE RATE: 1181 IPM (30 M/MIN.)
12-STATION STANDARD SERVO TURRET WITH 1” OD AND 1.5” ID TOOL SHANK
UPGRADE TO PROGRAMMABLE TAILSTOCK W/NON-ROTATING QUILL MT5
SMART CHUCK SENSOR
REMOVABLE RENISHAW TOOL SETTER HPRA
PARTS CATCHER
STANDARD TOOL HOLDER AND SLEEVES PACKAGE
1 X 0° LIVE TOOL HOLDER (ER-32, EC)
1 X 90° LIVE TOOL HOLDER (ER-32, EC)
CHIP PAN WITH SCREEN FILTER
UPGRADE CHIP CONVEYOR TO 47” DISCHARGE HEIGHT
UPGRADE COOLANT PUMP TO 132 PSI HIGH PRESSURE COOLANT PUMP
OIL SKIMMER
ADVANCE AUTOMATIC LUBRICATION SYSTEM
COMPLETE HYDRAULIC SYSTEM
FULLY ENCLOSED GUARDING
DOOR INTERLOCK
HYDRAULIC PRESSURE SAFETY SWITCH
PROGRAM PROTECT
CHUCK CLAMP/UNCLAMP CONFIRMATION
LEVELING BOLT AND LEVELING PAD
WORK LIGHT
THREE COLOR OPERATION STATUS SIGNAL LIGHT TOWER
TOOL BOX WITH EMERGENCY MAINTENANCE ELECTRICAL PART PACKAGE
OPERATION & MAINTENANCE MANUALS, PARTS LIST AND ELECTRICAL DRAWINGS
