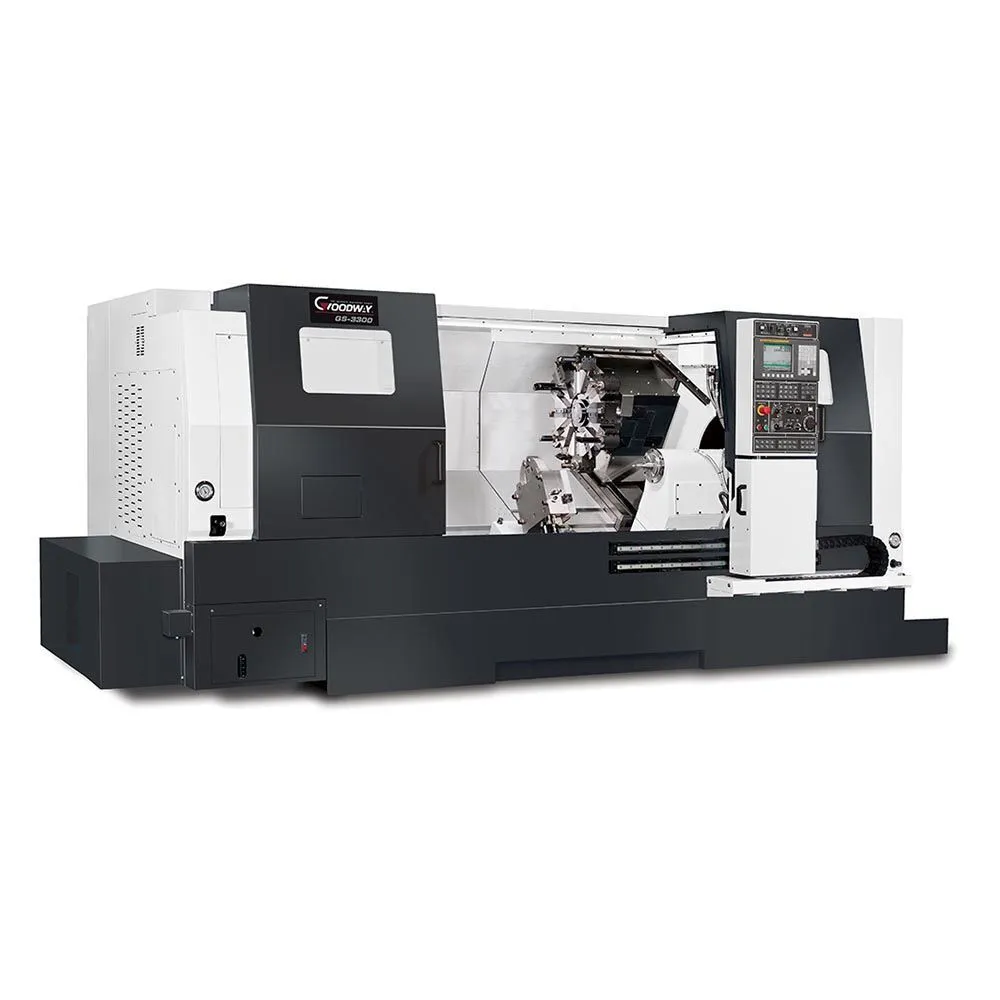

GOODWAY GS-3600LM - HORIZONTAL TURNING CENTER WITH MILLING
ConditionNew
New
With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GS series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
• 30°low center gravity slant bed ensures high rigidity of GS-3000 series.
• X / Z axes adopt box ways structure and wide span design to ensure best rigidity and precision.
• Optional high precision built-in spindle or high power belt-driven spindle to meet any processing request.
• X / Z axes are directly driven by a high-performance AC servo motor, rapid feed rate can reach up to 30 m/min.
• 12-station servo index turret, adjacent and opposite tool changing only takes up to 0.3 and 0.8 sec.
• High-rigidity programmable tailstock or high-performance servo tailstock ensures the best support for the workpiece.
FANUC 0I-TF PLUS WITH 15" LCD SCREEN WITH IHMI
RIGID TAPPING AND SPINDLE ORIENTATION
FANUC ALPHA SPINDLE MOTOR AND SERVO DRIVES
SPINDLE MOTOR FANUC 25 HP (CONT.), 30 HP (30 MIN), 35 HP (PEAK)
2-SPEED SPINDLE MOTOR CONFIGURATION
15” HOLLOW 3-JAW CHUCK WITH ONE SET OF SOFT AND HARD JAWS
12-STATION STANDARD SERVO TURRET WITH 1” OD & 1-1/2” ID TOOL SHANK
CF-AXIS WITH DISK BRAKE ON MAIN SPINDLE
10HP LIVE TOOLING DRIVE MOTOR, ER40 LIVE HOLDER
ZF GEAR BOX
SMART CHUCK SENSOR
X/Z AXIS SERVO MOTOR: FANUC ALPHA SERVO MOTOR 6 HP
RENISHAW MANUAL TOOL SETTER HPRA FOR MAIN SPINDLE
PROGRAMMABLE HYDRAULIC TAILSTOCK & NON-ROTATING TYPE QUILL (MT#5) (LIVE CENTER IS NOT INCLUDED)
STANDARD TOOL HOLDER AND SLEEVES PACKAGE
1 X 0° LIVE TOOL HOLDER (ER-32, EC)
1 X 90° LIVE TOOL HOLDER (ER-32, EC)
CHIP CONVEYOR WITH AUTO TIMER, HINGE TYPE, RIGHT DISCHARGE, 47” DISCHARGE HEIGHT
GRUNDFOS 132 PSI COOLANT PUMP (MTH 2-70/7)
AUTOMATIC LUBRICATION SYSTEM
OIL SKIMMER
COOLANT TANK
HYDRAULIC SYSTEM
ELECTRIC CABINET HEAT EXCHANGER
WORK LIGHT
THREE COLOR OPERATION STATUS SIGNAL LIGHT TOWER
LEVELING BOLT AND LEVELING PAD
TOOLBOX WITH EMERGENCY MAINTENANCE ELECTRICAL PART PACKAGE
FULLY ENCLOSED GUARDING
DOOR INTERLOCK
HYDRAULIC PRESSURE SAFETY SWITCH
PROGRAM PROTECT
CHUCK CLAMP/UNCLAMP CONFIRMATION
