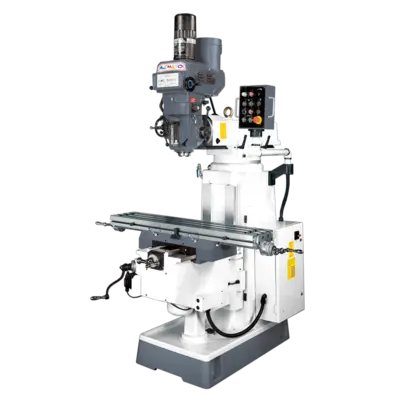

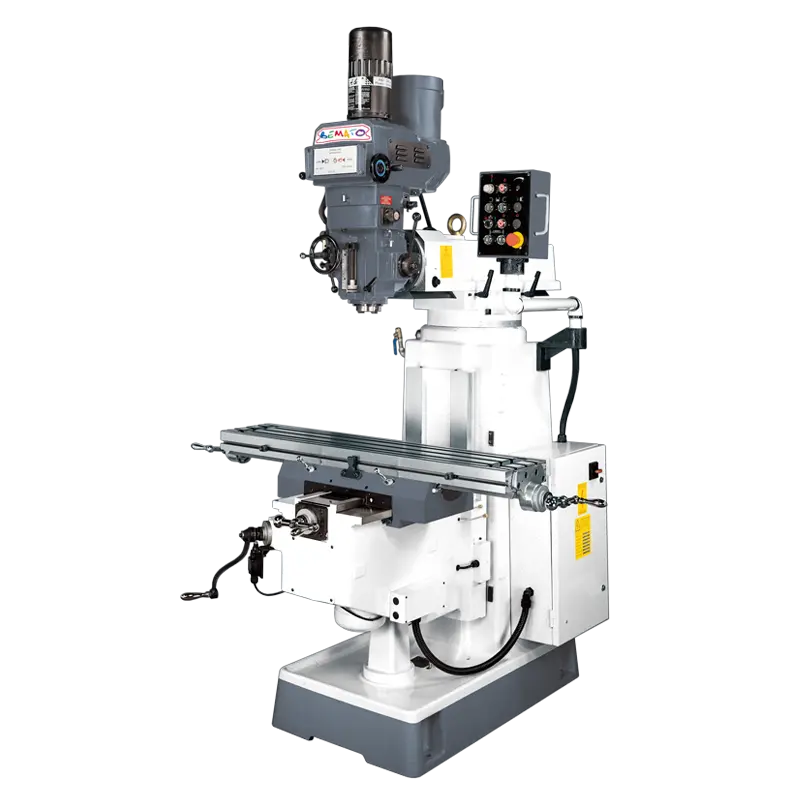

BEMATO BMT-1500VS VERTICAL MILLING MACHINE

Description

The BEMATO BMT-1500VS Vertical Milling Machine is a compact and reliable knee-type milling solution designed for precision machining, toolroom applications, and general manufacturing environments. Built with a rigid Meehanite cast iron construction, the BMT-1500VS offers excellent structural stability and vibration damping for consistent machining accuracy. The machine features hardened and precision-ground slideways, while the X and Y axes are coated with Turcite-B, ensuring smooth movement, reduced wear, and improved positioning precision during milling operations. With a table size of 230 × 1070 mm and generous X/Y/Z travels of 680 × 305 × 405 mm, the BMT-1500VS provides a practical working envelope for machining a wide variety of components used in maintenance shops, tooling departments, and small-batch production.

Equipped with a variable speed spindle ranging from 60 to 4200 RPM, the BMT-1500VS offers flexibility to handle different materials and cutting conditions. The machine features an R8 / ISO 30 spindle taper with an 85.7 mm quill diameter, allowing compatibility with common milling tooling used in toolrooms and manual milling applications. A 127 mm quill travel and automatic quill feed rates of 0.04 / 0.08 / 0.15 mm per revolution provide precise control for drilling, boring, and milling operations. The swiveling head design (90° left/right and 45° front/back) enables angled machining and increased versatility, while the 300 mm ram overarm travel and full 360° ram rotation allow flexible positioning of the milling head for complex setups.

Designed for durability and operator convenience, the BEMATO BMT-1500VS vertical milling machine comes with practical features such as one-shot lubrication, electrical control box, chip tray, coolant system, and tool storage. Optional accessories including X/Y axis power feed, digital readout (DRO), air power drawbar, inverter-driven spindle, and enlarged table options allow shops to configure the machine according to their production needs. With a machine footprint of approximately 2610 × 1700 × 2200 mm and a net weight of around 900 kg, the BMT-1500VS provides the rigidity and reliability required for accurate manual milling operations. Combining compact design, precision engineering, and flexible machining capability, the BEMATO BMT-1500VS is an ideal vertical turret milling machine for toolrooms, maintenance shops, educational facilities, and precision manufacturing environments.
