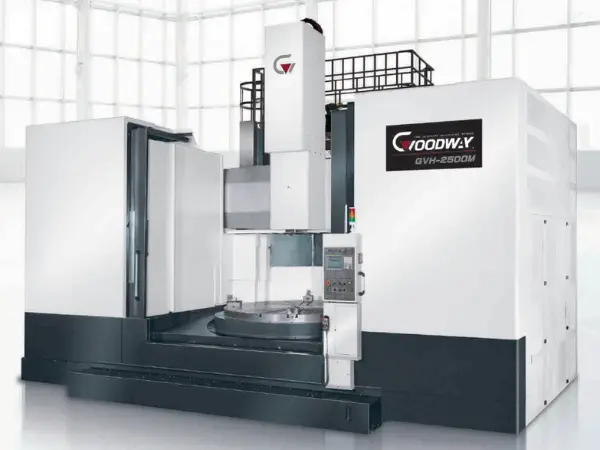

GOODWAY GVH-2500M VERTICAL CNC LATHE
ConditionNew
New
The Goodway GVH-2500M Vertical CNC Lathe is a heavy-duty vertical turning center engineered for precise and stable machining of large, high-weight components. It offers a generous working capacity with a Ø 2,500 mm table, Ø 3,000 mm maximum swing, Ø 2,800 mm turning diameter, 1,700 mm turning height, and a 15,000 kg table load. The machine features a one-piece column design, Meehanite cast iron construction, and rigid box-way guideways to ensure excellent rigidity, vibration control, and long-term accuracy. Powered by a 2-speed gearbox spindle with a 60/75 kW motor, the GVH-2500M delivers high torque for heavy cutting applications. The M configuration adds live tooling and C-axis capability, allowing milling, drilling, and tapping in a single setup for improved productivity.
Key Features
• Ø2,500 mm table diameter with 15,000 kg load capacity
• One-piece column structure with Meehanite cast iron and box ways
• 2-speed high-torque spindle with 60 / 75 kW motor
• BT50 live tooling spindle for milling operations
• Cf-axis with disk brake for rigid and accurate C-axis positioning
• 16-tool umbrella-type automatic tool changer (ATC)
• Available with FANUC Oi-TF Plus or Siemens 840D sl CNC control
FANUC 0I-F WITH 15" LCD INCL. MANUAL GUIDE I
FANUC ABSOLUTE ENCODER AC SERVO MOTORS
4-JAW MANUAL TABLE
MAIN SPINDLE MOTOR 60/75KW
2-STEP GEAR BOX
AUTO TOOL SETTER
LINEAR SCALE X-AXIS
MILLING FUNCTION (SINGLE RAM) WITH CF-AXIS
90 DEGREE HEAD
70 BAR ALLCOOL R58I HIGH PRESSURE COOLANT SYSTEM WITH SINGLE FILTER BAG, 7" COLOR HMI, 190L COOLANT TANK, TRANSFORMER (FOR 380/400V) & INTERFACE, AUTO VARIABLE PRESSURE CONTROL
RIGID TAPPING/TOOL SPINDLE ORIENTATION
SYMMETRICAL GUIDE WAY STRUCTURE WITH BOX WAYS ON ALL AXES
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
COOLANT THROUGH SPINDLE
COOLANT NOZZLE AROUND SPINDLE
HYDRAULIC SYSTEM
SEMI ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM
TRI-COLOR SIGNAL TOWER(YELLOW/RED/GREEN)
HIGH INTESITY WORK LIGHT
ELECTRIC CABINET HEAT EXCHANGER
OIL SKIMMER
COOLANT FLOW SWITCH
COOLANT LEVEL SWITCH
COOLANT CHILLER
PAPER FILTER SYSTEM
LOAD MONITORING SYSTEM
EXTRA 8 M CODE
The Goodway GVH-2500M Vertical CNC Lathe is a heavy-duty vertical turning center engineered for precise and stable machining of large, high-weight components. It offers a generous working capacity with a Ø 2,500 mm table, Ø 3,000 mm maximum swing, Ø 2,800 mm turning diameter, 1,700 mm turning height, and a 15,000 kg table load. The machine features a one-piece column design, Meehanite cast iron construction, and rigid box-way guideways to ensure excellent rigidity, vibration control, and long-term accuracy. Powered by a 2-speed gearbox spindle with a 60/75 kW motor, the GVH-2500M delivers high torque for heavy cutting applications. The M configuration adds live tooling and C-axis capability, allowing milling, drilling, and tapping in a single setup for improved productivity.
Key Features
• Ø2,500 mm table diameter with 15,000 kg load capacity
• One-piece column structure with Meehanite cast iron and box ways
• 2-speed high-torque spindle with 60 / 75 kW motor
• BT50 live tooling spindle for milling operations
• Cf-axis with disk brake for rigid and accurate C-axis positioning
• 16-tool umbrella-type automatic tool changer (ATC)
• Available with FANUC Oi-TF Plus or Siemens 840D sl CNC control
Metric
| Table Diameter | 2,500 mm |
| Max Swing Diameter | 3,000 mm |
| Max Turning Diameter | 2,800 mm |
| Max Turning Height | 1,700 mm |
| Max Table Load | 15,000 kg |
| Spindle Bearing Dia | 1,180 mm |
| Main Spindle Motor | 60/75 KW |
| Spindle Speed | 130 RPM |
| CF-AXIS Max Speed | 6 RPM |
| Z-Axis Travel | 1,200 mm |
| W-Axis Travel | 1,200 mm |
| W-Axis Rapids | 200 m/min |
| Spindle Taper | CAT50 |
| ATC | 24 |
| Max Tool Weight | 50 kg |
| CN Control | 0 |
FANUC 0I-F WITH 15" LCD INCL. MANUAL GUIDE I
FANUC ABSOLUTE ENCODER AC SERVO MOTORS
4-JAW MANUAL TABLE
MAIN SPINDLE MOTOR 60/75KW
2-STEP GEAR BOX
AUTO TOOL SETTER
LINEAR SCALE X-AXIS
MILLING FUNCTION (SINGLE RAM) WITH CF-AXIS
90 DEGREE HEAD
70 BAR ALLCOOL R58I HIGH PRESSURE COOLANT SYSTEM WITH SINGLE FILTER BAG, 7" COLOR HMI, 190L COOLANT TANK, TRANSFORMER (FOR 380/400V) & INTERFACE, AUTO VARIABLE PRESSURE CONTROL
RIGID TAPPING/TOOL SPINDLE ORIENTATION
SYMMETRICAL GUIDE WAY STRUCTURE WITH BOX WAYS ON ALL AXES
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
COOLANT THROUGH SPINDLE
COOLANT NOZZLE AROUND SPINDLE
HYDRAULIC SYSTEM
SEMI ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM
TRI-COLOR SIGNAL TOWER(YELLOW/RED/GREEN)
HIGH INTESITY WORK LIGHT
ELECTRIC CABINET HEAT EXCHANGER
OIL SKIMMER
COOLANT FLOW SWITCH
COOLANT LEVEL SWITCH
COOLANT CHILLER
PAPER FILTER SYSTEM
LOAD MONITORING SYSTEM
EXTRA 8 M CODE
