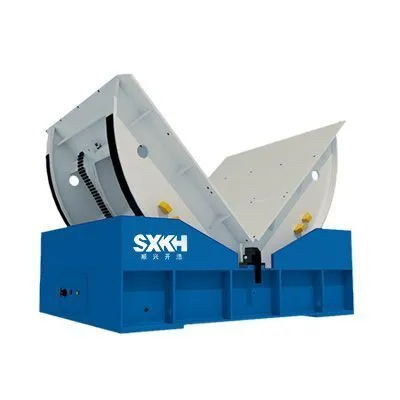

The machine is designed for flipping mold & die 90 degree. SXKH mold flipper features high turnover capacity, smooth and safe turnover process, it can minimize damage to mold & die, machine as well as the facility floor surface during flipping process. SXKH mold flipper enable fast and convenient flipping operation while ensuring full compliance with safe and civilized production standards.
Structure Overview
The machine adopts steel plate welding structure.
• There are double rails on the rolling support, and bush roller chain is fixed between the rails, which can make the stable revolving.
• There are 4 bogie wheels in the base that can lift and limit the scrolling support.
• The motor is the electric braking motor.
• The reducer is the planet cycloidal pinwheel connected with motor.
• After the reducer slows down, the machine revolves through chain sprocket gear drives the center chain of the rotation bracket. The travel switch is fixed on the 90-degree position in order to limit the rotation bracket on the 90 degree position.
• There are electric cabinet and moveable button operation box for operation on the machine.
• The safety panel is attached on the machine, and when the safety panel reverses up, that is ,Dump, the button operation box fails.
