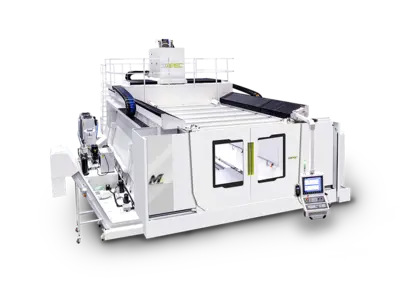

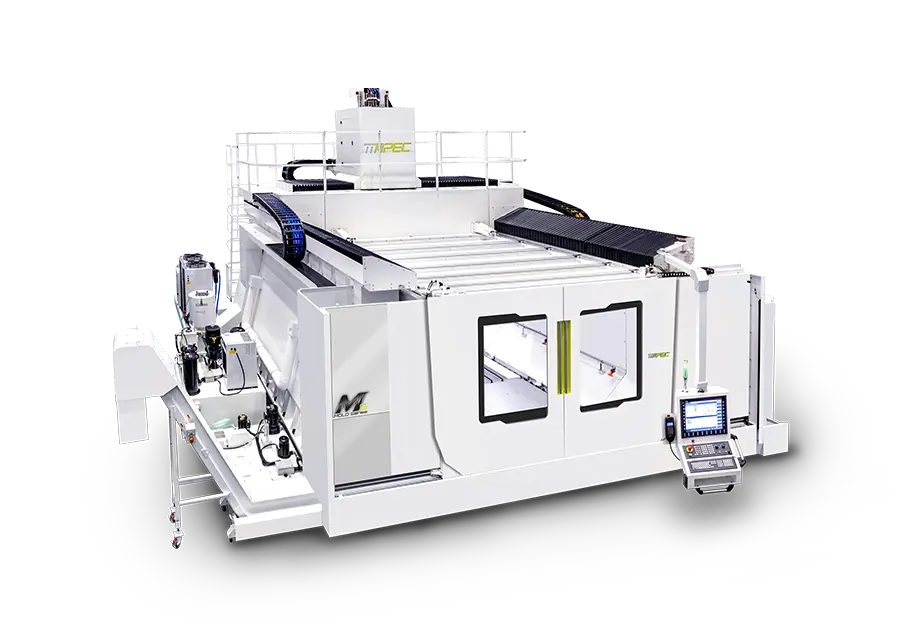

APEC GM2540-5L – 5-Axis High Speed Gantry Machining Center
The APEC GM2540-5L is an advanced 5-axis high-speed gantry machining center engineered for precision, efficiency, and durability in machining large-scale, complex components. Designed with aerospace, die/mold, and high-precision industries in mind, the GM2540-5L delivers superior accuracy, high dynamic performance, and reliable long-term operation.
Equipped with a 12,000 RPM HSK100A spindle delivering up to 76 kW of power and 302 Nm of torque, this machining center handles both high-speed aluminum cutting and heavy-duty machining of tough materials such as titanium alloys and nickel-based superalloys. Its fork-type 2-axis milling head with direct-drive motors enables ±110° B-axis swivel and full ±360° C-axis rotation, ensuring exceptional flexibility for freeform and undercut surface machining.
The machine offers generous travels of X: 4,000 mm, Y: 2,500 mm, Z: 1,200 mm, with a robust gantry structure designed for maximum rigidity and stability. The linear motor drives on X and Y axes deliver backlash-free high-speed movement at up to 60 m/min, while the rack-and-pinion Z-axis provides excellent rigidity for vertical stability. Thermal symmetry and APEC’s patented Box-in-Box structure enhance stiffness, reduce torsional deformation, and improve long-term accuracy.
Key Features:
• Large machining envelope: X: 4,000 mm / Y: 2,500 mm / Z: 1,200 mm
• High-performance spindle: 12,000 RPM, 50/76 kW, 200/302 Nm torque
• Linear motor drives on X/Y for 60 m/min rapid traverse and high-speed accuracy
• Rack & pinion Z-axis drive for rigidity and stability
• Automatic Tool Changer: 60 tools (HSK100A), expandable to 90 tools
• Positioning accuracy: X: 0.015 mm, Y: 0.012 mm, Z: 0.030 mm
HEIDENHAIN TNC640 5-AXIS CNC CONTROLLER WITH HR520 MPG
AGA FORK TYPE MILLING HEAD
12,000 RPM BUILT-IN SPINDLE, 50 / 76 KW(S1/MAX), 200 / 302 NM (S1/MAX, HSK100A
60 TOOLS ATC MAGAZINE
OIL-AIR LUBRICATION DEVICE FOR SPINDLE
X/Y-AXIS WITH LINEAR MOTOR DRIVE
CHILLER FOR LINEAR MOTORS
GERMANY BRAKING SYSTEM FOR LINEAR MOTOR
Z-AXIS WITH RACK & PINION DRIVE (SERVO PRELOAD)
Z-AXIS SERVO MOTOR WITH GEAR BOX
X/Y/Z-AXIS WITH HIGH RIGIDITY ROLLER TYPE LINEAR GUIDE-WAY
(11) 5-AXIS WITH HEIDENHAIN OPTICAL LINEAR / CIRCULAR SCALE
COUNTERBALANCE SYSTEM
CHIP AUGER SYSTEM (INCLUDING CHIP CONVEYOR)
STANDARD COOLANT TANK
AUTOMATIC TOOL CHANGER FOR HSK100A (60T)
SPINDLE CHILLER
SPINDLE THERMAL COMPENSATION
AIR THROUGH SPINDLE
AIR AROUND SPINDLE
OIL MIST AROUND SPINDLE
COOLANT AROUND SPINDLE
AIR CONDITIONER FOR ELECTRICAL CABINET
AIR DRYER
WATER-PROOF LED WORKING LAMP
SAFETY INTERLOCK OF FRONT AND BACK DOOR
