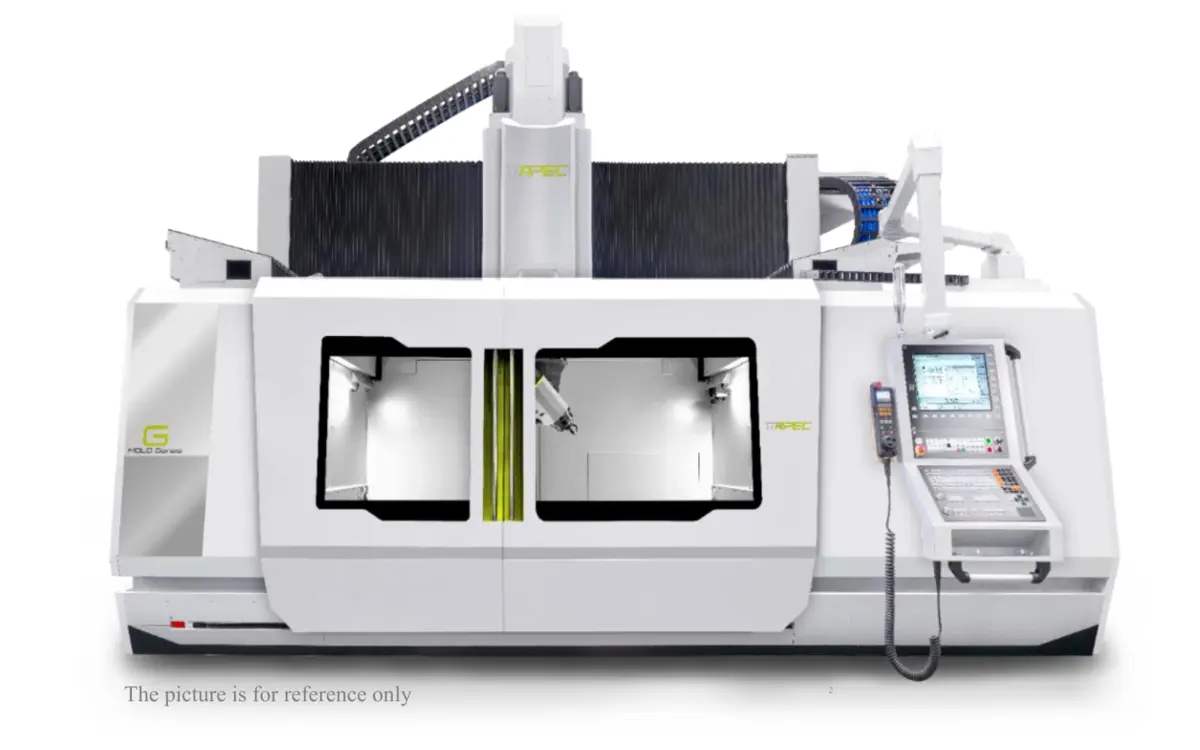

APEC G2540 5-Axis High-Speed Gantry Machining Center
ConditionNew
New
The APEC G2540 is an advanced 5-axis high-speed gantry machining center designed for machining large, complex, and high-precision components in industries such as aerospace, die/mold, and aluminum structural parts. With its rigid gantry design, linear motor technology, and dynamic 5-axis control, the G2540 ensures outstanding accuracy, productivity, and superior surface finishes on even the most demanding free-form geometries.
Equipped with a powerful spindle and a 2-axis fork or mono type milling head, the G2540 delivers high-speed simultaneous 5-axis machining. Its direct-drive torque motors on B and C axes enable ultra-precise, backlash-free motion, while minimizing thermal displacement for long-cycle accuracy. The Heidenhain CNC control system further enhances high-speed processing, intuitive programming, and precision part production.
The G2540 features a large working envelope of X: 4,000 mm, Y: 2,500 mm, Z: up to 1,200 mm, making it ideal for oversized aerospace structures and precision molds. Built for performance and flexibility, it is fitted with a 60-tool HSK100A automatic tool changer (ATC), high-speed linear drives, and advanced thermal compensation to ensure consistent performance across high-mix production.
Key Features
• 2-axis fork/mono-type direct-drive milling head (±115° B-axis / ±360° C-axis)
• High-speed spindle built-in design
• CNC system: Heidenhain with HR520 MPG handwheel
• Large travels: X = 4,000 mm, Y = 2,500 mm, Z = up to 1,200 mm
• Linear motors on X/Y axes: backlash-free, 60 m/min rapid traverse
• Automatic Tool Changer: 60-tool HSK100A ATC, max tool weight 15 kg
• Positioning accuracy: ±0.012 mm; Repeatability: ±0.008 mm
Whether producing aerospace structural components, precision molds, or high-speed aluminum parts, the APEC G2540 5-axis gantry machining center delivers the speed, rigidity, and precision required for next-generation manufacturing.
HEIDENHAIN TNC7 5-AXIS CNC CONTROLLER WITH HR520 MPG
FORK TYPE MILLING HEAD
B-AXIS SWIVEL (RATED/MAX): 1,192/1,980 NM
C-AXIS ROTATION TORQUE (RATED/MAX): 1,050/1,740 NM
SPINDLE END TO TABLE DISTANCE: 210 - 1,210 MM
15,000 RPM BUILT-IN SPINDLE, 45/54 KW (119/143 NM), HSK-A100
40 TOOLS ATC MAGAZINE
OIL-AIR LUBRICATION DEVICE FOR SPINDLE
X/Y-AXIS WITH LINEAR MOTOR DRIVE
CHILLER FOR LINEAR MOTORS
GERMANY BRAKING SYSTEM FOR LINEAR MOTOR
Z-AXIS WITH HIGH SPEED BALL SCREW DRIVE
X/Y/Z-AXIS WITH HIGH RIGIDITY ROLLER TYPE LINEAR GUIDE-WAY
5-AXIS WITH HEIDENHAIN OPTICAL LINEAR / CIRCULAR SCALE
COUNTER BALANCE SYSTEM
STANDARD COOLANT TANK
SPINDLE CHILLER
SPINDLE THERMAL COMPENSATION
AIR THROUGH SPINDLE
AIR AROUND SPINDLE
OIL MIST AROUND SPINDLE
COOLANT AROUND SPINDLE
AIR CONDITIONER FOR ELECTRICAL CABINET
AIR DRYER
OIL MIST COLLECTING SYSTEM
WATER-PROOF LED WORKING LAMP
SAFETY INTERLOCK OF FRONT AND BACK DOOR
The APEC G2540 is an advanced 5-axis high-speed gantry machining center designed for machining large, complex, and high-precision components in industries such as aerospace, die/mold, and aluminum structural parts. With its rigid gantry design, linear motor technology, and dynamic 5-axis control, the G2540 ensures outstanding accuracy, productivity, and superior surface finishes on even the most demanding free-form geometries.
Equipped with a powerful spindle and a 2-axis fork or mono type milling head, the G2540 delivers high-speed simultaneous 5-axis machining. Its direct-drive torque motors on B and C axes enable ultra-precise, backlash-free motion, while minimizing thermal displacement for long-cycle accuracy. The Heidenhain CNC control system further enhances high-speed processing, intuitive programming, and precision part production.
The G2540 features a large working envelope of X: 4,000 mm, Y: 2,500 mm, Z: up to 1,200 mm, making it ideal for oversized aerospace structures and precision molds. Built for performance and flexibility, it is fitted with a 60-tool HSK100A automatic tool changer (ATC), high-speed linear drives, and advanced thermal compensation to ensure consistent performance across high-mix production.
Key Features
• 2-axis fork/mono-type direct-drive milling head (±115° B-axis / ±360° C-axis)
• High-speed spindle built-in design
• CNC system: Heidenhain with HR520 MPG handwheel
• Large travels: X = 4,000 mm, Y = 2,500 mm, Z = up to 1,200 mm
• Linear motors on X/Y axes: backlash-free, 60 m/min rapid traverse
• Automatic Tool Changer: 60-tool HSK100A ATC, max tool weight 15 kg
• Positioning accuracy: ±0.012 mm; Repeatability: ±0.008 mm
Whether producing aerospace structural components, precision molds, or high-speed aluminum parts, the APEC G2540 5-axis gantry machining center delivers the speed, rigidity, and precision required for next-generation manufacturing.
Metric
| X-Axis Travel | 4,000 mm |
| Y-Axis Travel | 2,500 mm |
| Z-Axis Travel | 1,000 mm |
| Table Size-X | 4,000 mm |
| Table Size-Y | 2,500 mm |
| X/Y Rapid Feed Rate | 60 m/min. |
| Z Rapid Feed Rate | 40 m/min. |
| Spindle Speed | 15,000 RPM |
| Spindle Taper | HSKA100 |
| Spindle power (S1/Max) | 45/54 KW |
| Spindle torque (S1/Max) | 119/143 NM |
| B-Axis Swivel Speed | 60 RPM |
| C-Axis Rotation Speed | 60 RPM |
| B/C Axis Clamping Torque | 4000 Nm |
| B-axis Swivel Angle (±) | ±115° |
| C-axis Rotation Angle | ±360° |
| ATC | 40 |
| Max. Tool Length | 350 mm |
| Max. Tool Weight | 16 kg |
| Tool Dia w/ Adjacent Tool | 125 mm |
| Tool Dia w/o Adjacent Tool | 200 mm |
| CN Control | Heidenhain TNC7 |
HEIDENHAIN TNC7 5-AXIS CNC CONTROLLER WITH HR520 MPG
FORK TYPE MILLING HEAD
B-AXIS SWIVEL (RATED/MAX): 1,192/1,980 NM
C-AXIS ROTATION TORQUE (RATED/MAX): 1,050/1,740 NM
SPINDLE END TO TABLE DISTANCE: 210 - 1,210 MM
15,000 RPM BUILT-IN SPINDLE, 45/54 KW (119/143 NM), HSK-A100
40 TOOLS ATC MAGAZINE
OIL-AIR LUBRICATION DEVICE FOR SPINDLE
X/Y-AXIS WITH LINEAR MOTOR DRIVE
CHILLER FOR LINEAR MOTORS
GERMANY BRAKING SYSTEM FOR LINEAR MOTOR
Z-AXIS WITH HIGH SPEED BALL SCREW DRIVE
X/Y/Z-AXIS WITH HIGH RIGIDITY ROLLER TYPE LINEAR GUIDE-WAY
5-AXIS WITH HEIDENHAIN OPTICAL LINEAR / CIRCULAR SCALE
COUNTER BALANCE SYSTEM
STANDARD COOLANT TANK
SPINDLE CHILLER
SPINDLE THERMAL COMPENSATION
AIR THROUGH SPINDLE
AIR AROUND SPINDLE
OIL MIST AROUND SPINDLE
COOLANT AROUND SPINDLE
AIR CONDITIONER FOR ELECTRICAL CABINET
AIR DRYER
OIL MIST COLLECTING SYSTEM
WATER-PROOF LED WORKING LAMP
SAFETY INTERLOCK OF FRONT AND BACK DOOR
