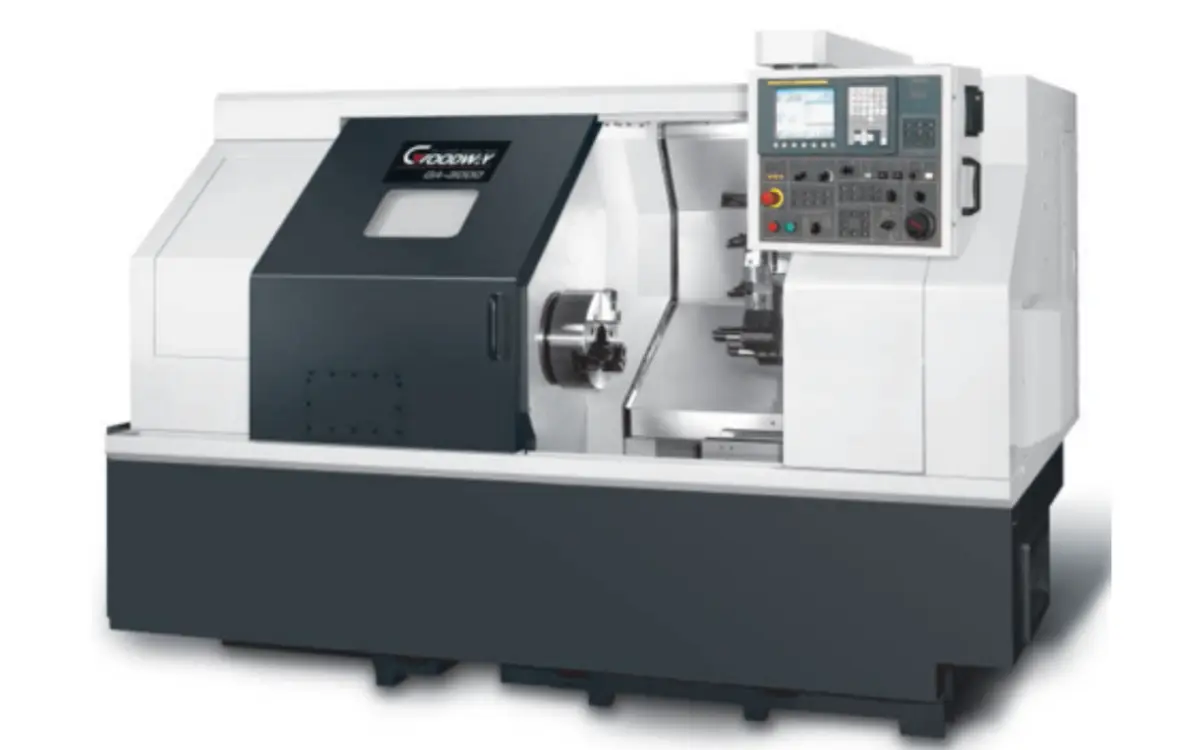

Engineered to handle heavy-duty turning applications with superb accuracy, the GA series ultra performance turning centers combine extremely powerful high torque motors, super rigid box way constructions, and large diameter servo indexing turrets to bring you The Ultimate Machining Power®. The GA series will help you be more competitive by achieving faster cycle times with heavier cuts, faster machine movements, and allow cutting of tough material efficiently.
Key Features:
• Extremely powerful high-torque spindles deliver 2.5 - 4 times the torque output of standard spindles.
• Extra large Z-axis servo motors provide the thrust needed to efficiently drill big diameter holes.
• In order to endure the machine’s high outputs with durability, heavy-duty roller bearings are used to support the spindles and axes guide ways are of super-rigid one-piece box ways.
• A total of 24 models are available in the GA Series lineup, use the chart below to pinpoint the model that best suits your applications needs.
** Please see the brochure for the complete specification
FANUC 0I-TF PLUS WITH 10.4” COLOR LCD SCREEN
FANUC ALPHA SPINDLE AND SERVO DRIVES
FANUC AC 25 HP (CONT.), 30 HP (30 MIN.), 35 HP (PEAK) SPINDLE MOTOR
2-SPEED SPINDLE MOTOR CONFIGURATION
GUIDE WAY TYPE: BOX WAYS
MAX TURNING LENGTH:
GA-3300*(12” CHUCK): 624MM [24.55”]
SPINDLE SPEED:
GA-3300: 30 ~ 3,000 RPM 2-SPEED MOTOR CONFIGURATION
WORK HOLDING:
GA-3300: 12” HOLLOW 3-JAW CHUCK (WITH ONE SET OF SOFT & HARD JAWS)
X AXIS SERVO MOTOR: FANUC ALPHA SERVO MOTOR 4 HP (CONT.)
Z AXIS SERVO MOTOR: FANUC ALPHA SERVO MOTOR 6 HP (CONT.)
AXIS RAPID TRAVERSE RATE: 788 IPM (20 M/MIN.) / 945 IPM (24 M/MIN.)
12-STATION STANDARD SERVO TURRET WITH 1” OD & 2” ID TOOLING
RENISHAW HPRA REMOVABLE TOOL SETTER
FULLY PROGRAMMABLE BASE AND BUILT-IN BEARING QUILL (MT#4 ROTATING QUILL)
MT#4 DEAD CENTER (NOT INCLUDED)
CHIP CONVEYOR WITH AUTO TIMER, HINGE TYPE, RIGHT DISCHARGE (TALL TYPE)
GRUNDFOS 132 PSI COOLANT PUMP (MTH 2-70/7)
OIL SKIMMER
OPERATION AND MAINTENANCE MANUALS, PARTS LIST AND ELECTRICAL DRAWINGS
FACTORY TEST REPORT
THREE COLOR OPERATION STATUS SIGNAL LIGHT TOWER
TOOLBOX WITH EMERGENCY MAINTENANCE ELECTRICAL PART PACKAGE
STANDARD TOOL HOLDER & SLEEVES PACKAGE
FULLY ENCLOSED GUARDING, DOOR INTERLOCK, HYDRAULIC PRESSURE SAFETY SWITCH, PROGRAM PROTECT,
CHUCK CLAMP/UNCLAMP CONFIRMATION
MACHINE INCLUDES THE FOLLOWING:
COOLANT ABOVE CHUCK TOP
COOLANT PISTOL
SMART CHUCK SENSOR
PROGRAMMABLE TAILSTOCK W/ NON-ROTATING QUILL MT#5
