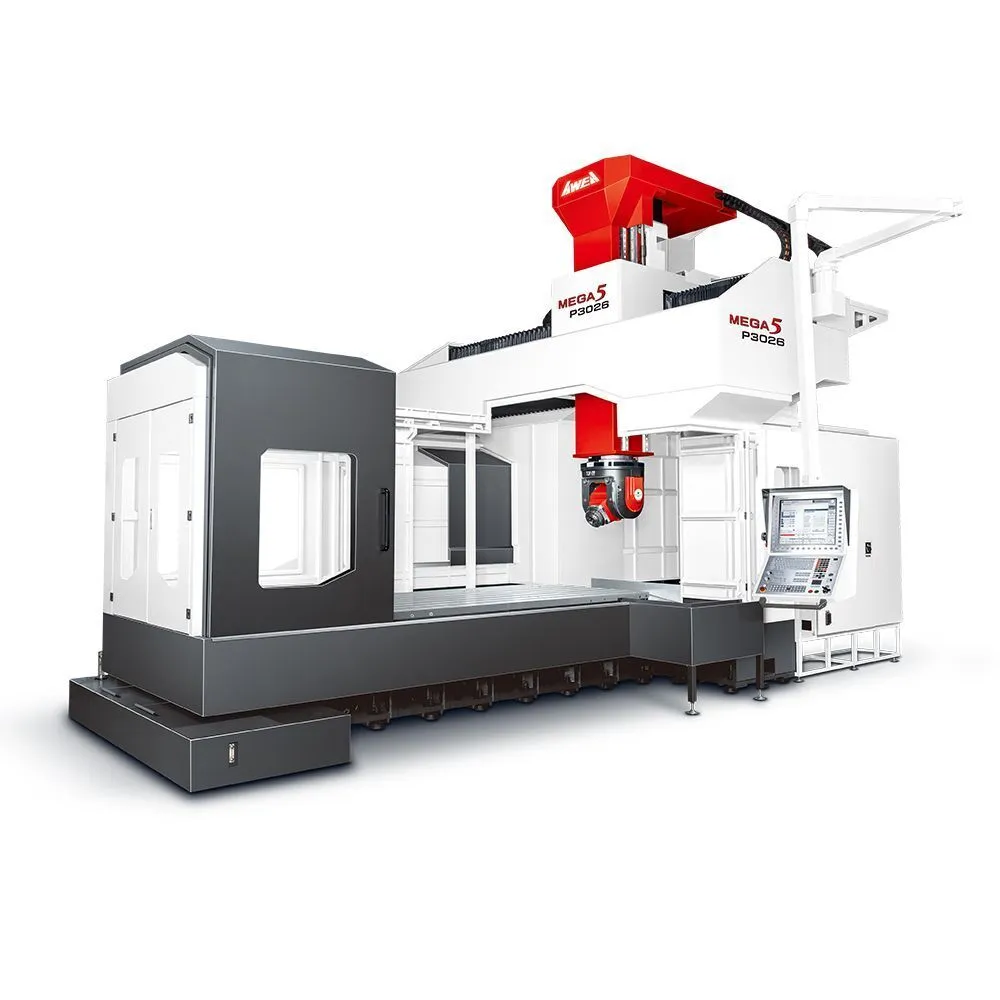

AWEA MEGA5 P5032 BRIDGE TYPE 5-AXIS MACHINING CENTER
ConditionNew
New
The AWEA MEGA5 P Series is engineered for advanced precision machining, featuring a fixed column design and super-rigid bridge-type structure for maximum stability and accuracy. Equipped with an Italian-made high-torque, two-axis milling head, it offers simultaneous 5-axis (X, Y, Z, B, C) machining, making it ideal for complex, large workpieces. This machine ensures efficiency and exceptional performance in heavy-duty tasks, with reduced vibrations thanks to its built-in spindle motor design.
Key Features:
• Super-Rigid Bridge-Type Structure: Ensures unmatched stability and accuracy for high-precision machining.
• Fixed Column Design: Provides superior rigidity for handling large, intricate workpieces.
• Italian-Made Two-Axis Milling Head: Available in TCH-20F (compact) and TCH-30F (high torque) models to cater to diverse cutting requirements.
• Simultaneous 5-Axis Machining: Advanced multi-axis (X, Y, Z, B, C) capabilities for complex, compound angular machining.
• Built-In Spindle Motor: Reduces centrifugal force effects and minimizes vibrations, enhancing spindle longevity and accuracy.
• Versatile & Efficient: Perfect for industries requiring precise and advanced machining capabilities.
FANUC 31iB5 PLUS WITH 15” LCD SCREEN
HANGING TYPE CONTROL PANEL
UPGRADED Z-AXIS TO 1,200 MM
12000 rpm BUILT-IN DRIVEN SPINDLE, , HSKA100
SPINDLE MOTOR: 40 kW
TECHNAI TCH-30F 2-AXIS HEAD
- MAX SPEED B/C AXIS = 50 RPM
- MAX TORQUE B/C AXIS = 2400 Nm
- CLAMPING TORQUE B/C AXIS = 8000 Nm
- POSITIONING ACCURACY B/C AXIS = ± 3 arc.sec
- ROTARY RANGE B/C AXIS = ± 110˚
60 TOOLS ATC MAGAZINE
35 BAR COOLANT THROUGH SPINDLE SYSTEM, ALLCOOL MB500, WITH PUMP AND TANK, MANUAL PRESSURE ADJ., SINGLE FILTER (WITHOUT SUB TANK)(1000PSI CAPABLE)
SPINDLE COOLING SYSTEM
TWIN COIL TYPE CHIP AUGERS
CENTRALIZED AUTOMATIC LUBRICATING SYSTEM
LUBRICANT RECYCLING COLLECTOR
OIL LUBRICANT SEPARATOR
LINEAR SCALES ON X/Y/Z AXIS
X / Y / Z AXES CLOSE-LOOP FEEDBACK SYSTEM (ADD ROTARY ENCODER)
UL STANDARD
DEDICATED SPREADER
LINEAR SCALE AIR PURGE
AIR CONDITIONER FOR ELECTRIC CABINET
FOOT SWITCH FOR TOOL RELEASE
DOOR INTERLOCK
ROOF ENCLOSED SPLASH GUARD
CATERPILLAR TYPE CHIP CONVEYOR
WATER GUN
