High-Speed, High-Precision Machining for Aluminum & Cast Iron Components

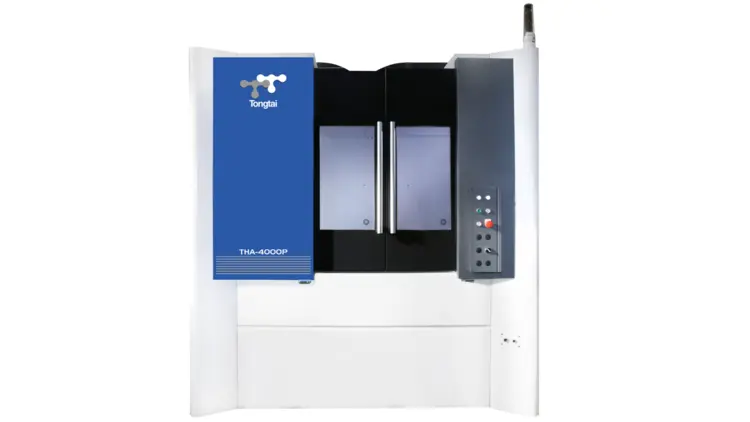

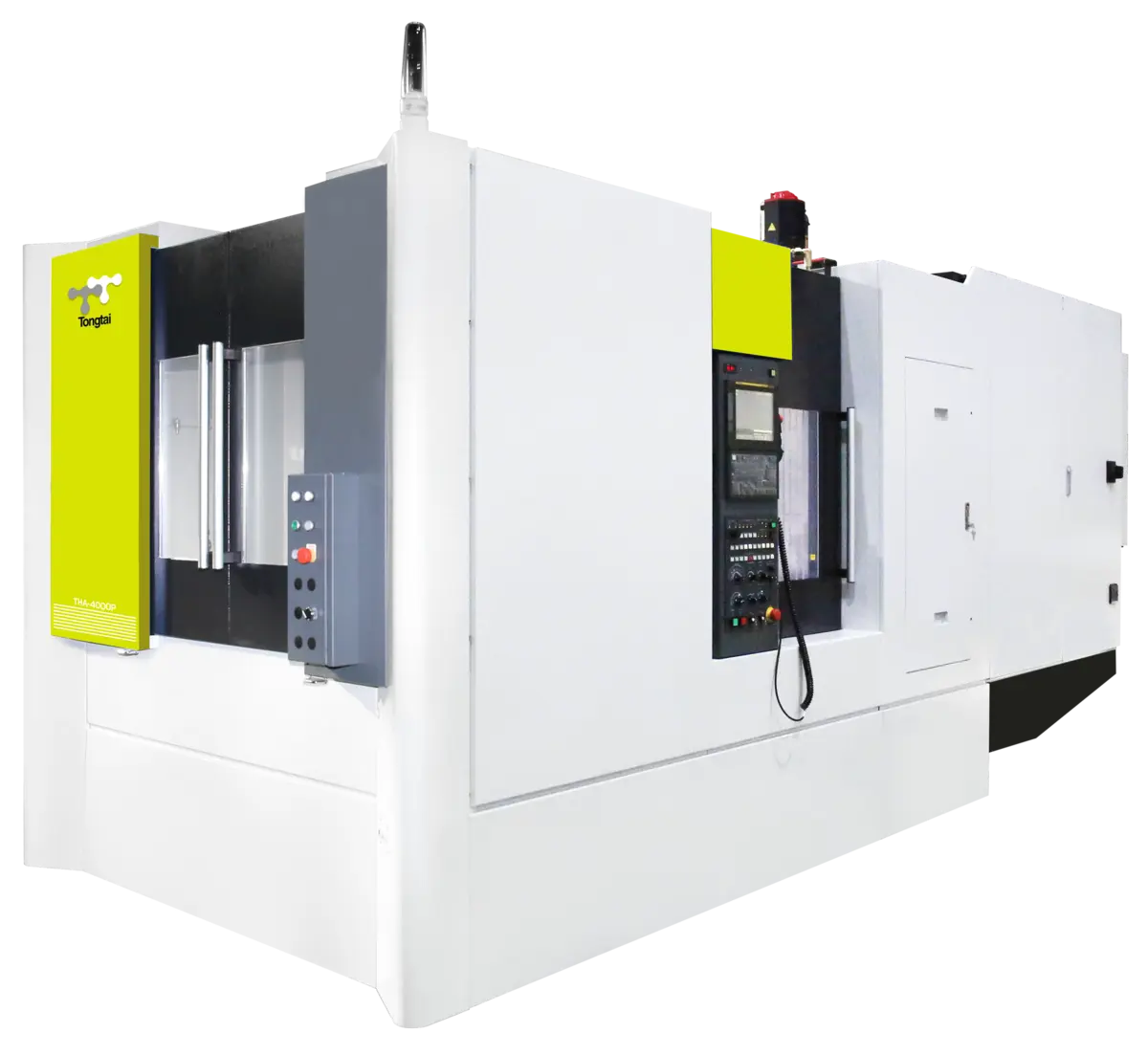

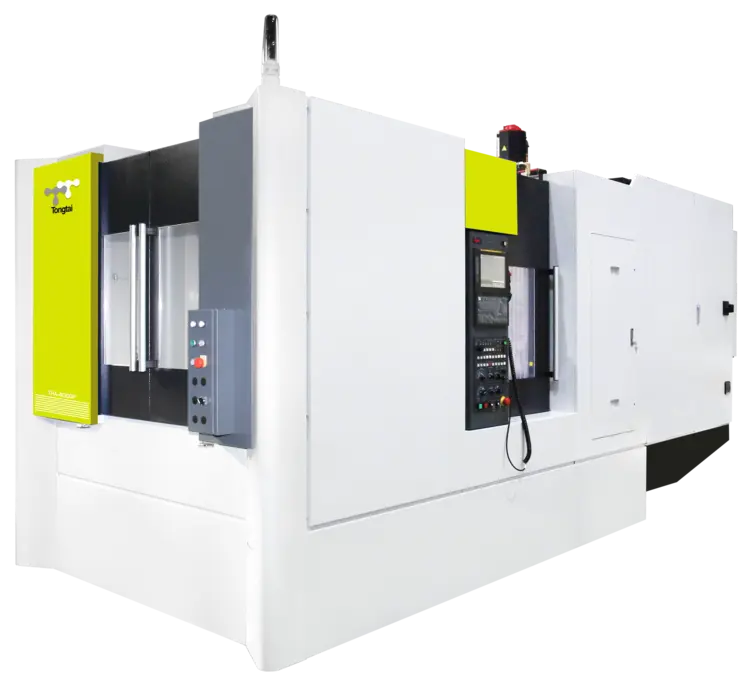

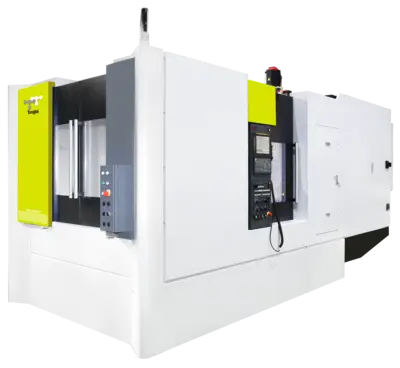

The THA-4000P is a cutting-edge CNC horizontal turning center engineered for efficient, high-precision machining of aluminum and cast iron parts. With a compact footprint and a powerful 15,000 rpm direct-drive spindle delivering up to 249 Nm of torque, this machine is optimized for both performance and productivity in high-volume manufacturing environments.
Designed for applications requiring smaller strokes, the THA-4000P features a rigid structure with stepped-bed X-axis roller guideways, a 3-point support system for stability, and a minimized width ideal for mass production line integration. The optional APC (Automatic Pallet Changer) dramatically reduces loading and unloading times, while high-speed ATC, thermal displacement compensation, and flexible automation options maximize uptime and accuracy.
Key Features:
• Spindle: 15,000 rpm direct-drive spindle (opt. 20,000 rpm), 37/15 kW power
• Travel & Speed: X/Y/Z stroke of 610/610/660 mm with rapid traverse of 60 m/min
• B-axis Table: 0.001° indexing, Ø630 × H800 mm workpiece capacity
• Automation Ready: Optional APC, tool & workpiece measuring systems, and full FMS integration
• Compact & Rigid: Stepped bed and honeycomb column structure for enhanced rigidity and thermal stability
• Eco-Efficient: Energy-saving design with reduced coolant, lubricant, and power consumption
• Built for modern production demands, the THA-4000P combines speed, accuracy, and flexibility to meet the rigorous needs of the automotive, aerospace, and general machining industries.
FANUC 0i-MF PLUS WITH 10.4" MONITOR
15000 RPM DIRECT DRIVEN SPINDLE, 37/15 KW, CAT40 DUAL CONTACT
40 TOOLS ATC MAGAZINE
SPINDLE COOLER
APC (ROTARY TYPE) WITH WORKING TABLE X 2 PCS
COOLANT UNIT
MACHINE ROOF OVERHEAD COOLANT FLUSHING SYSTEM
CHIP CONVEYOR (SCRAPER TYPE) H=1100 MM WITH TROLLEY
CENTRAL LUBRICATION FOR X/Y/Z AXIS
TELESCOPIC COVERS FOR X/Y/Z AXIS
STANDARD FULL SPLASH GUARD
ELECTRICAL CABINET WITH HEAT EXCHANGER
MANUAL PULSE GENERATOR
THREE COLOR WARNING LAMP
WORK LIGHT (LED)
DOOR INTERLOCK
RIGID TAPPING
OPERATING POWER 110V
COOLANT GUN
AIR GUN
