APEC HS-1400T 5-AXIS HORIZONTAL 5-AXIS MACHINING CENTER WITH TURNING CAPABILITY

Description

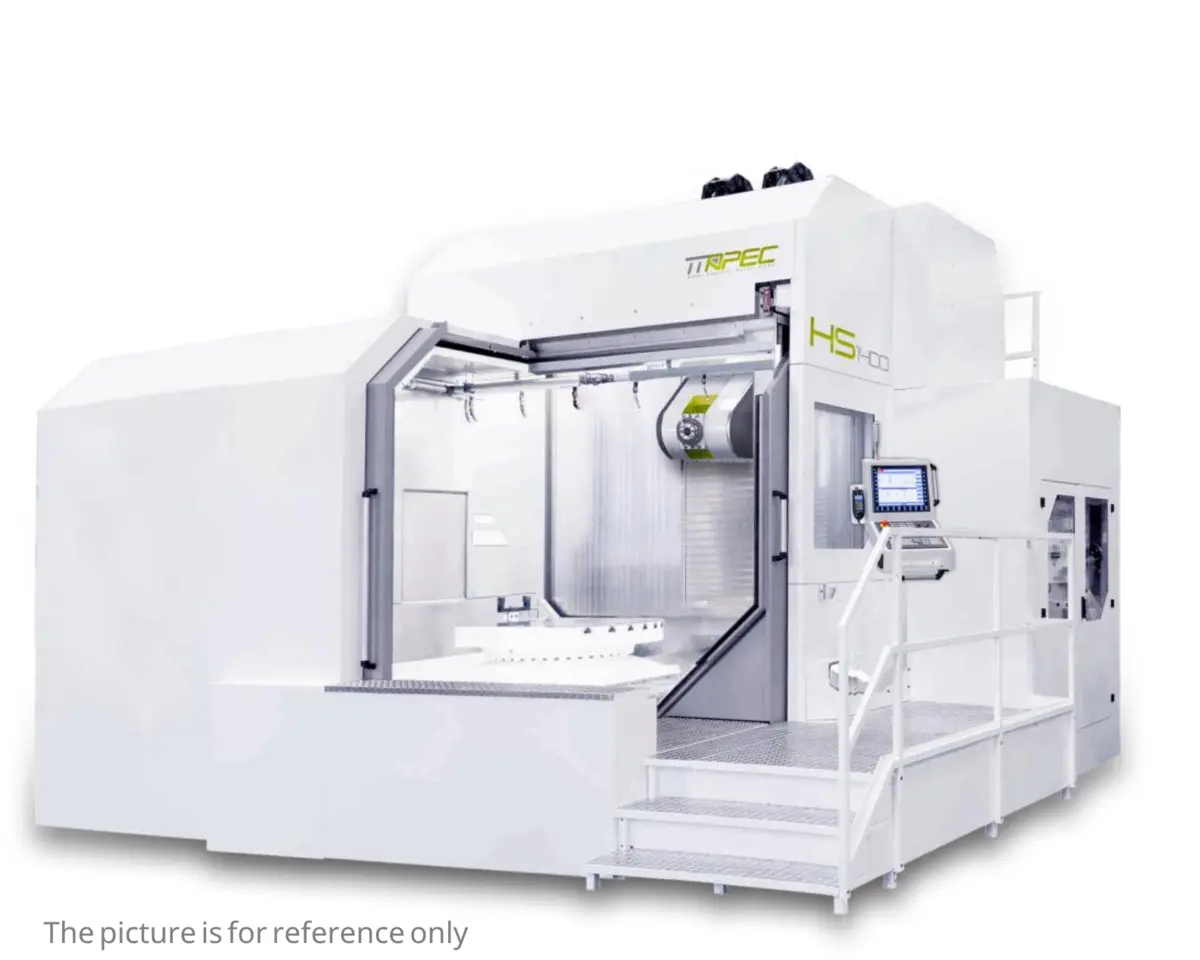

The APEC HS-1400T is a state-of-the-art 5-axis horizontal machining center designed for complex part machining with integrated turning functionality, making it the ideal solution for high-precision aerospace, energy, and mold manufacturing industries. This heavy-duty machine delivers exceptional performance with a powerful 12,000 rpm HSK100T spindle offering up to 76 kW of max power and 302 Nm of torque—capable of handling titanium, nickel-based alloys, and other difficult-to-cut materials.

Built with a 45º universal milling head and a robust ±185° A-axis swivel range, the HS-1400T ensures versatile angular machining and enhanced reach in tight geometries. Its Ø1,250 mm B-axis rotary table features a full-continuous ±360° rotation, high torque (up to 5,280 Nm), and zero-backlash direct-drive motor technology, providing outstanding part accuracy and surface finish.

With a travel range of X: 1800 mm, Y: 1250 mm, and Z: 1320 mm, plus rapid feedrates up to 50 m/min across all axes, the HS-1400T is engineered for high-speed, high-precision simultaneous 5-axis machining. Its integrated automatic tool changer supports 40 HSK100T tools with a max weight of 25 kg and length of 450 mm. The system is powered by a Siemens Sinumerik ONE CNC controller for ultra-fast block processing, real-time diagnostics, and advanced multi-axis programming.

Whether you're machining complex aerospace engine components or multi-surface molds, the APEC HS-1400T maximizes throughput, reduces setups, and ensures repeatable part accuracy.

Key Features:
• 5-axis horizontal machining center with integrated turning capability
• ±185° swiveling A-axis and direct-drive B-axis with 700 rpm max speed
• Sinumerik ONE 5-axis controller with HT2 MPG and real-time diagnostics
• Reinforced base with double-wall structure and FEA-optimized rigidity
• Ideal for machining aerospace alloys, complex molds, and large precision parts
