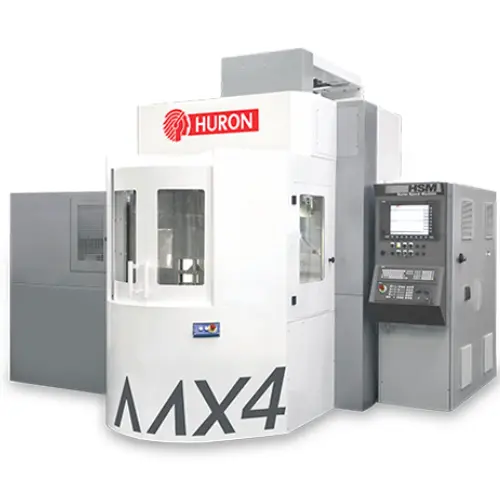

HURON MX4 – 5-Axis High-Speed Machining Center

Description

The HURON MX 4 is a compact yet powerful 5-axis machining center designed for complete part processing—from roughing to high-precision finishing—in a single setup. Engineered for speed, accuracy, and rigidity, the MX 4 delivers unmatched flexibility for industries such as aerospace, medical, precision mechanics, mold & die, and energy. With a maximum workpiece capacity of 250 kg, the MX 4 supports full 5-sided and simultaneous 5-axis machining, making it ideal for complex geometries and tight tolerances. Its standard bi-pallet system also supports automated production cycles for higher efficiency and productivity.

Built on a high-rigidity portal-type structure made from premium cast iron, the machine ensures vibration damping and geometric stability even under aggressive cutting conditions. The X-axis is powered by a precision ball screw with expansion compensation, while the Y and Z axes are driven by linear motors for high-speed, frictionless movement. Integrated optical encoders, in accordance with VDI/DGQ 3441, guarantee consistent positioning accuracy. The high-torque electrospindle combines power, speed, and axial/radial stiffness, supporting heavy roughing as well as high-speed finishing, with real-time vibration monitoring for enhanced tool and part protection.

The swiveling rotary table, mounted on a 45° cradle and driven by water-cooled torque motors, enables continuous tilt from -45° to +180° with no backlash or mechanical wear—ensuring exceptional surface finishes and repeatability. The system is enhanced by a high-capacity chain-type tool magazine, external to the machining area, and a full-chip evacuation system with washing nozzles. With an advanced numerical control interface offering graphic simulation, interactive programming, and high processing memory, the MX 4 is built for seamless operation and integration into modern production environments.

Key Features:
• Simultaneous 5-axis machining for complex parts up to 250 kg
• High-speed portal structure for maximum rigidity and dynamic stability
• Linear motors on Y/Z axes and ball screw on X-axis with thermal compensation
• 45° tilting rotary table with water-cooled torque motors for continuous positioning
• Optical encoders (VDI/DGQ 3441 compliant) for high positioning accuracy
• Automated bi-pallet system for efficient loading/unloading
• Integrated chip management with washing and spiral conveyors
• Full CNC control with interactive programming and simulation
• Compact design with IP54-protected electrical cabinet and excellent accessibility
