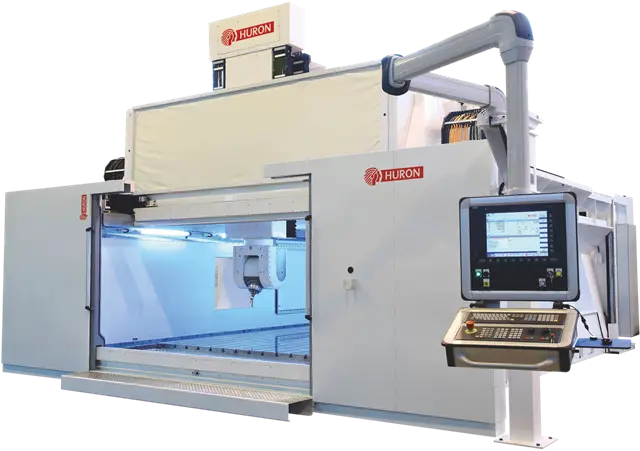

HURON KXG 45-15 5-Axis Gantry Milling Center

Description

The HURON KXG Series is a powerful, high-performance 5-axis gantry machining center engineered for precision milling of large and complex workpieces. Designed to deliver rigidity, speed, and accuracy, the KXG Series allows full 5-sided and simultaneous 5-axis machining in a single setup, making it ideal for heavy-duty applications in the aerospace, automotive, die & mold, and industrial manufacturing sectors.

Its gantry structure features a mobile crossbeam supported by fixed concrete-mounted components to effectively dampen vibrations and enhance geometric stability. The moving assemblies—slide, carriage, and crossbar—are built from mechanically welded steel, optimized to reduce moving mass while maintaining high structural stiffness. The machine is secured to the floor at multiple anchor points for uniform load distribution and maximum rigidity.

Available in two drive configurations, the X-axis can be powered by either a rack and pinion system (KXG-P) with dual planetary servo gearboxes and electronic preload for backlash elimination, or by a linear motor system (KXG-L), which delivers high acceleration, reduced wear, and superior thermal stability through water-cooled direct drive technology.

The Y and Z axes are driven by high-precision ball screws, supported by recirculating roller bearings, with absolute linear scale measurement ensuring micron-level accuracy per VDI/DGQ 3441 standards. The fork-type head integrates two orthogonal axes (B and C), both directly driven by torque motors with angular encoders for high-speed, backlash-free movement, capable of achieving negative angles and continuous 5-axis operation.

A high-torque spindle ensures maximum chip removal and is safeguarded by a vibration monitoring system that protects the spindle, cutting tools, and the part during aggressive roughing or high-speed finishing. The numerical control system offers an intuitive interface with powerful processing capabilities, interactive programming, and graphical simulation to optimize part programs before execution. With a maximum workpiece capacity of up to 52,000 kg and modular options to adapt to unique production needs, the HURON KXG Series stands out as a reliable, heavy-duty 5-axis gantry milling solution for industries requiring accuracy, flexibility, and productivity on a large scale.

Key Features:

• 5-axis simultaneous machining with full 5-sided capability in one setup
• Rigid gantry structure with concrete-mounted fixed components for vibration damping
• Mechanically welded moving assemblies for high dynamics and reduced mass
• Dual drive options: rack and pinion (KXG-P) or linear motor (KXG-L) on X-axis
• High-precision ball screws with absolute linear scale feedback (Y/Z axes)
• Fork-type head with torque motors and angular encoders on B and C axes
• Vibration monitoring system for part, tool, and machine protection
• High-torque spindle designed for heavy-duty roughing and finishing
